TRANSMISSION

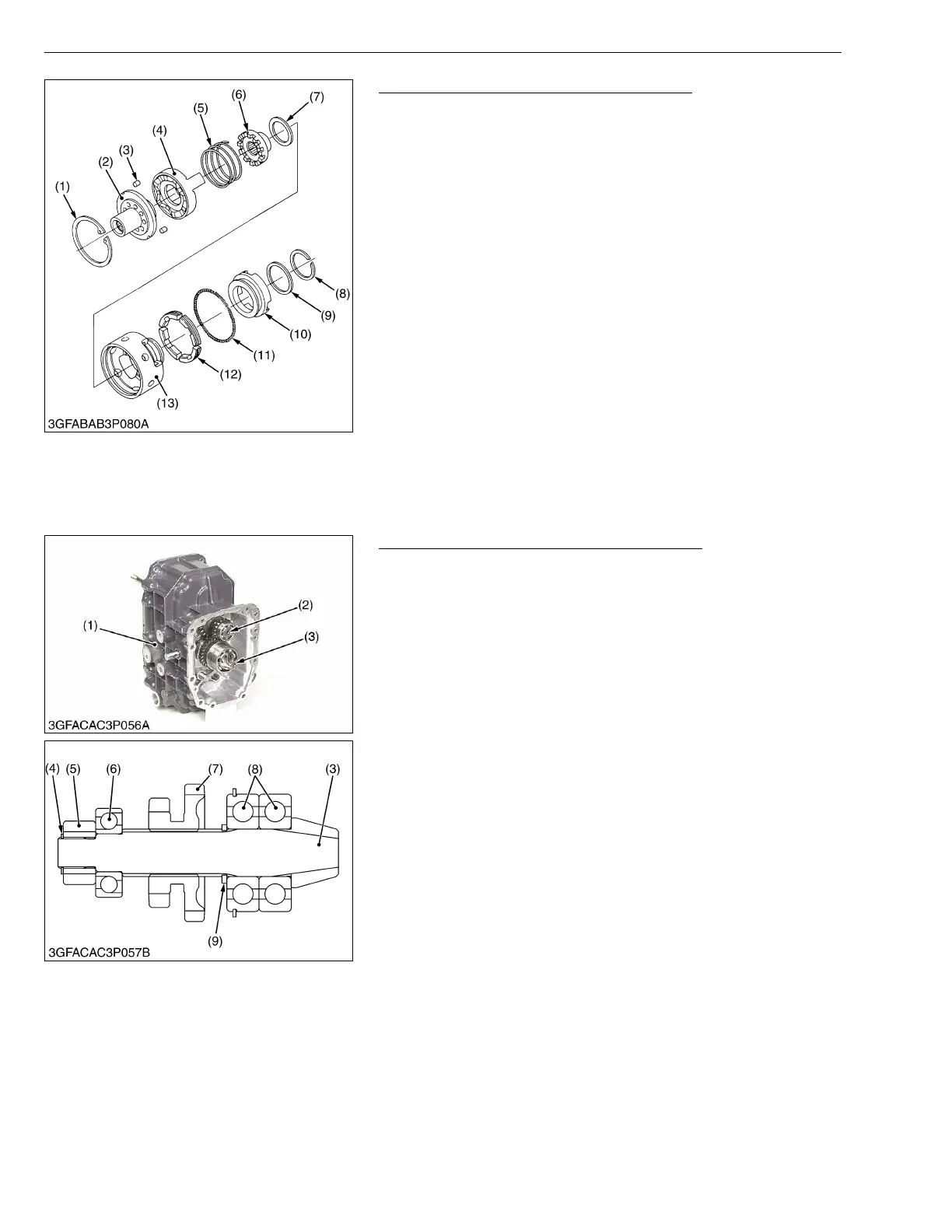

Dual-acting Overrunning Clutch Assembly
1. Remove the internal snap ring (1), drive cam (2), pins (3), center
cam (4), return spring (5), driven cam (6) and thrust collar (7)
from the clutch case (13).
2. Remove the external snap ring (8), washer (9), brake ring (10),
garter spring (11) and brake shoe (12) from the clutch case (13).
(When reassembling)
• When assembling the washer (9) into the brake ring (10), apply
transmission oil to the washer (9).
• When assembling the driven cam (6), apply transmission oil to
the thrust collar (7) and driven cam (6).
• When installing the center cam (4), take care not to damage the
brake shoe (12).
• When installing the drive cam (2), be sure to align the gear of
center cam (4) and drive cam (2).
W1024976
(4) Transmission Case
Bevel Pinion Shaft and 18T - 17T Gear Shaft
1. Remove the bevel pinion shaft (3) from the transmission case (1).
2. Remove the external snap ring (4) and 11T gear (5).
3. Remove the ball bearing (6) and 15T - 26T gear (7).
4. Remove the external snap ring (9) and two ball bearings (8).
5. Remove the 18T - 17T gear shaft (2) from the transmission case
(1).
(When reassembling)
NOTE
■
• When installing the bevel pinion shaft (3) in the transmission
case (1), be sure to install the shim.
W1050638
(1) Internal Snap Ring
(2) Drive Cam
(3) Pin
(4) Center Cam
(5) Return Spring
(6) Driven Cam
(7) Thrust Collar
(8) External Snap Ring
(9) Washer
(10) Brake Ring
(11) Garter Spring
(12) Brake Shoe
(13) Clutch Case
(1) Transmission Case
(2) 18T - 17T Gear Shaft
(3) Bevel Pinion Shaft
(4) External Snap Ring
(5) 11T Gear
(6) Ball Bearing
(7) 15T - 26T Gear
(8) Ball Bearing
(9) External Snap Ring
