[3] CHECK POINTS OF EVERY 50 HOURS
Checking Safety Devices
The Safety Devices are on your machine help to protect you
while operating. Please check these Safety Devices periodically -
daily is best - to test the safety systems function correctly before
operation.
CAUTION
• Do not allow anyone near the machine while testing.
• If the machine does not pass a test, do not operate the
machine.
• Sit on operator’s seat for all tests except for Test 1.
1. Perform the following tests before operating the machine.
2. If the machine does not pass one of the following tests, do not
operate the machine, and check the safety switches and the
wiring harness.
■ Test 1 : Switch for the operator’s seat
1. Do not sit on the operator’s seat.
2. Depress the brake pedal (2) fully.
3. Shift the PTO lever (3) to the “DISENGAGE” position.
4. Turn the main switch (1) to the “START” position.
5. The engine must not crank.
■ Test 2 : Switch for the brake pedal
1. Sit on the operator’s seat.
2. Do not depress the brake pedal (2).
3. Shift the PTO lever (3) to the “DISENGAGE” position.
4. Turn the main switch (1) to the “START” position.
5. The engine must not crank.
■ Test 3 : Switch for the PTO lever
1. Sit on the operator’s seat.
2. Depress the brake pedal (2) fully.
3. Shift the PTO lever (3) to the “ENGAGE” position.
4. Turn the main switch (1) to the “START” position.
5. The engine must not crank.
■ Test 4 : Switch for the operator’s seat (OPC)
1. Start the engine.
2. Shift the PTO lever (3) to “DISENGAGE” position.
3. Release the brake pedal (2).
4. Stand up. (Do not get off the machine.)
5. The engine must shut off
■ Test 5 : Switch for the operator’s seat (OPC)
1. Start the engine.
2. Shift the PTO lever (3) to “ENGAGE” position.
3. Release the brake pedal (2).
4. Stand up. (Do not get off the machine.).
5. The engine must shut off.
■ Test 6 : Switch for the operator’s seat (OPC)
1. Start the engine.
2. Depress the brake pedal (2) fully and lock the parking brake.
3. Shift the PTO lever (3) to “ENGAGE” position.
4. Stand up. (Do not get off the machine).
5. The engine must shut off.
W1050412

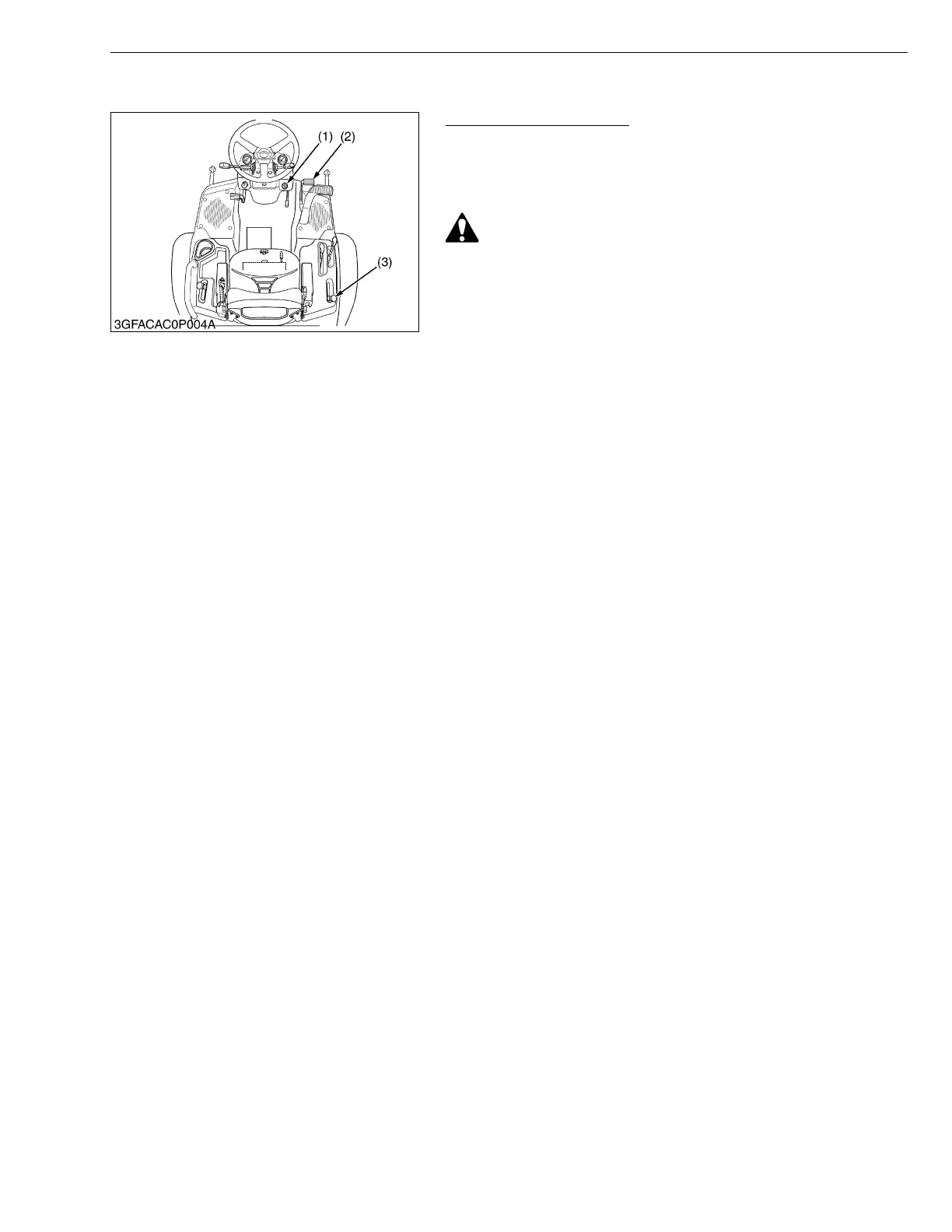

(1) Main Switch
(2) Brake Pedal
(3) PTO Lever
