FRONT AXLE
1. STRUCTURE

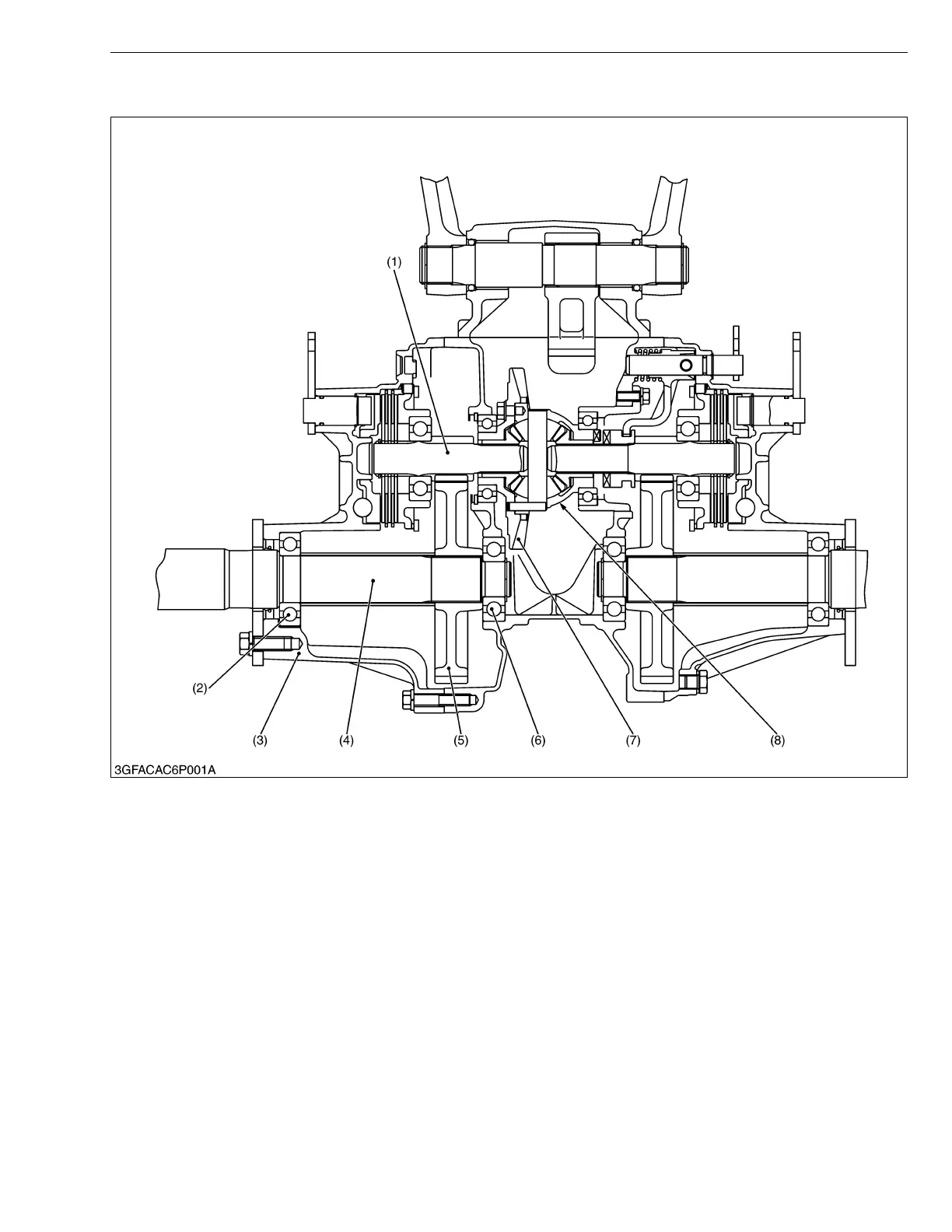

The front axles are the semifloating type with ball bearings (2), (6) between the front axle (4) and the front axle case
(3) which supports the front wheel load as well as transmitting power to the front wheels.
The differential gear assembly (8) automatically controls the revolution of right and left wheels when the front
wheels encounter unequal road resistance during turning.
(1) Differential Gear Shaft
(2) Ball Bearing
(3) Front Axle Case
(4) Front Axle
(5) 57T Gear
(6) Ball Bearing
(7) Spiral Bevel Gear
(8) Differential Gear Assembly
