G-41
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
G GENERAL

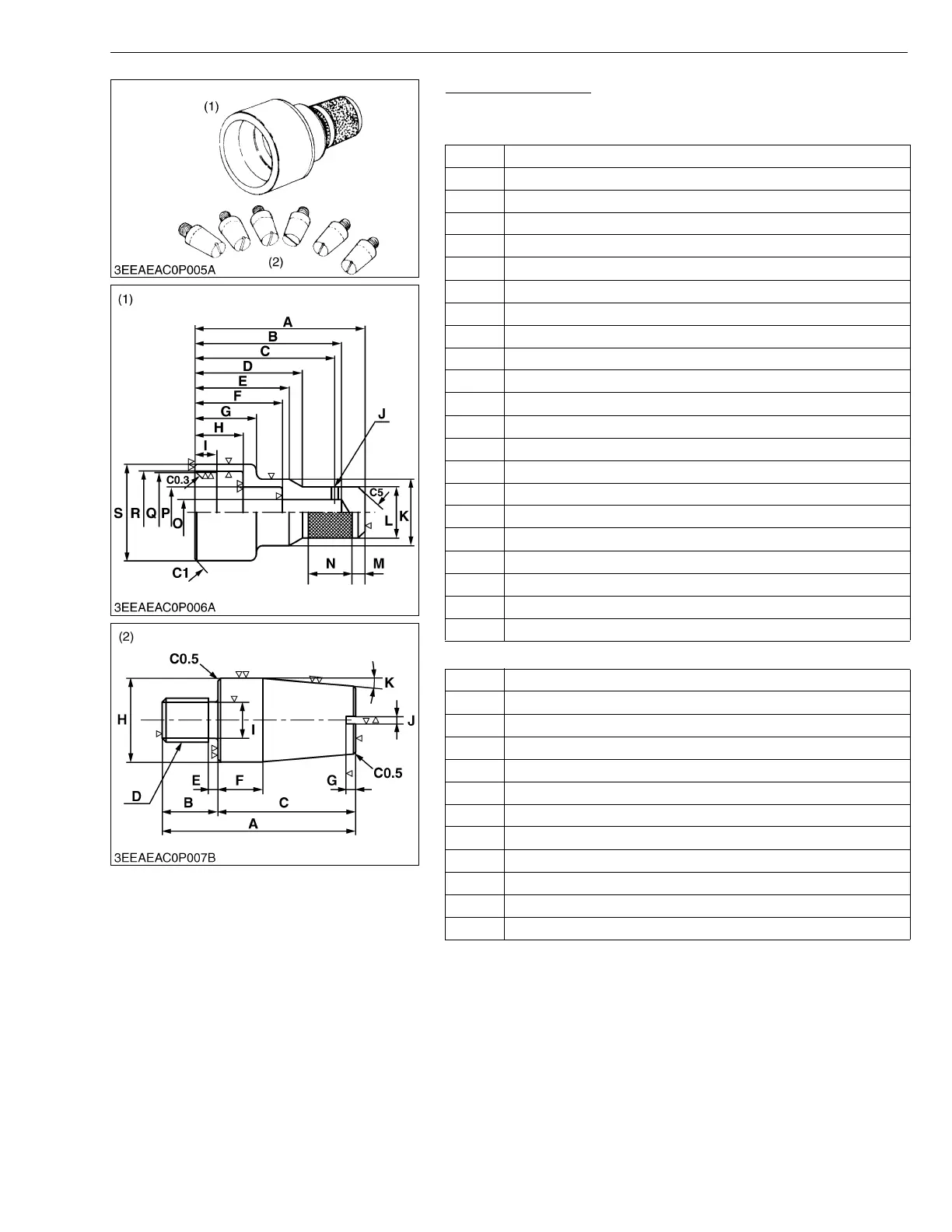

Crank Sleeve Setter
Application: Use to fix the crankshaft sleeve.
(1) Auxiliary Socket for Pushing
(2) Sleeve Guide
W1026961
A 130 mm (5.12 in.)
B 112 mm (4.41 in.)
C 107 mm (4.21 in.)
D 82 mm (3.23 in.)
E 72 mm (2.83 in.)
F 67 mm (2.64 in.)
G 47 mm (1.85 in.)
H 36.0 to 36.2 mm (1.417 to 1.425 in.)
I 17 mm (0.67 in.)
J 5 mm dia. (0.20 in. dia.)
K 52 mm dia. (2.05 in. dia.)
L 40 mm dia. (1.57 in. dia.)
M 10 mm (0.39 in.)
N 33 mm (1.30 in.)
O 20 mm dia. (0.79 in. dia.)
P 40 mm dia. (1.57 in. dia.)
Q 72.10 to 72.15 mm dia. (2.840 to 2.841 in. dia.)
R 73 mm dia. (2.87 in. dia.)
S 83 mm dia. (3.27 in. dia.)
C0.3 Chamfer 0.3 mm (0.01 in.)
C1 Chamfer 1 mm (0.04 in.)
C5 Chamfer 5 mm (0.2 in.)
A 42 mm (1.65 in.)
B 12 mm (0.47 in.)
C 30 mm (1.18 in.)
D M10 × Pitch 1.25
E 2 mm (0.08 in.)
F 10 mm (0.39 in.)
G 2.0 mm (0.08 in.)
H 17.90 to 17.95 mm dia. (0.700 to 0.707 in. dia.)
I 8 mm dia. (0.31 in. dia.)
J 1.8 mm (0.07 in.)
K 0.09 rad (5 °)
C0.5 Chamfer 0.5 mm (0.02 in.)
KiSC issued 04, 2006 A
