ENGINE
L3560, L4060, L4760, L5060, L5460, L6060, WSM
1-S36
Front Axle Frame
1. [L3560]
Remove one of the two engine hooks attached on the left side
of the engine and install it on the right rear side of the engine.
[except L3560]
Install the engine hooks (1), (2).
(See page G-61, G-62.)

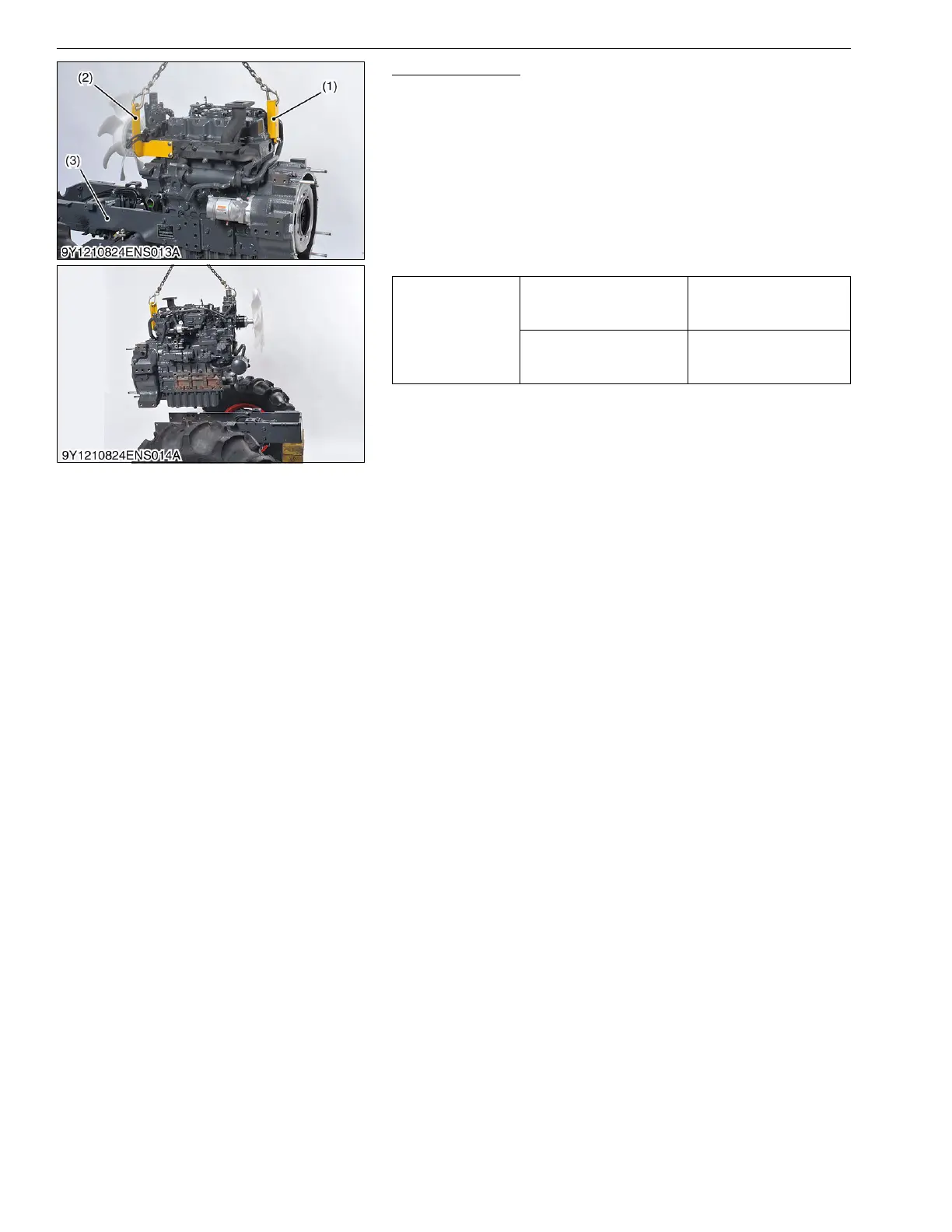

2. Hold the engine by the hoist chain hooked on the engine hooks
(1) and (2).
3. Remove the engine mounting screws.
4. Separate the engine from the front axle frame (3).
9Y1210824ENS0022US0
Tightening torque
Front axle frame mounting
screw (7T)
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Front axle frame mounting
screw (9T)
103 to 117 N·m
10.5 to 12.0 kgf·m
76.0 to 86.7 lbf·ft
(1) Engine Hook
(2) Engine Hook
(3) Front Axle Frame
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
