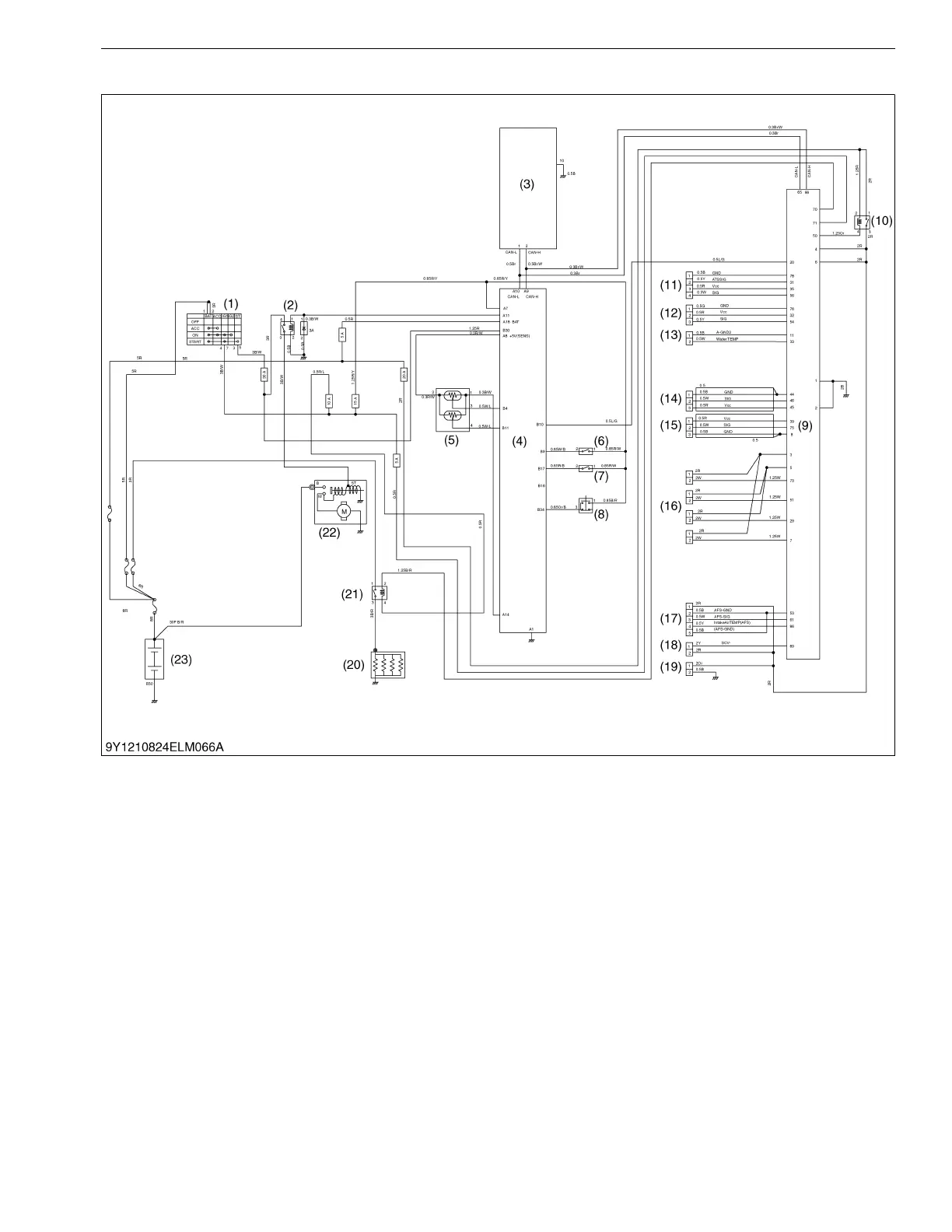

ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-M45
[3] HST
9Y1210824ELM0072US0
(1) Main Switch
(2) Starter Relay
(3) Instrument Panel
(4) Main ECU
(5) HST Pedal Sensor
(6) Seat Switch
(7) Seat Tilt Switch
(8) PTO Switch
(9) Engine ECU
(10) Engine ECU Power Relay
(11) Boost Sensor
(12) Rail Pressure Sensor
(13) Coolant Temperature Sensor
(14) Camshaft Position Sensor
(15) Crankshaft Position Sensor
(16) Injector
(17) Air Flow Sensor
(18) SCV (Suction Control Valve)
(19) Fuel Pump
(20) Glow Plug
(21) Glow Relay
(22) Starter
(23) Battery
