CLUTCH
L3560, L4060, L4760, L5060, L5460, L6060, WSM
2-S29

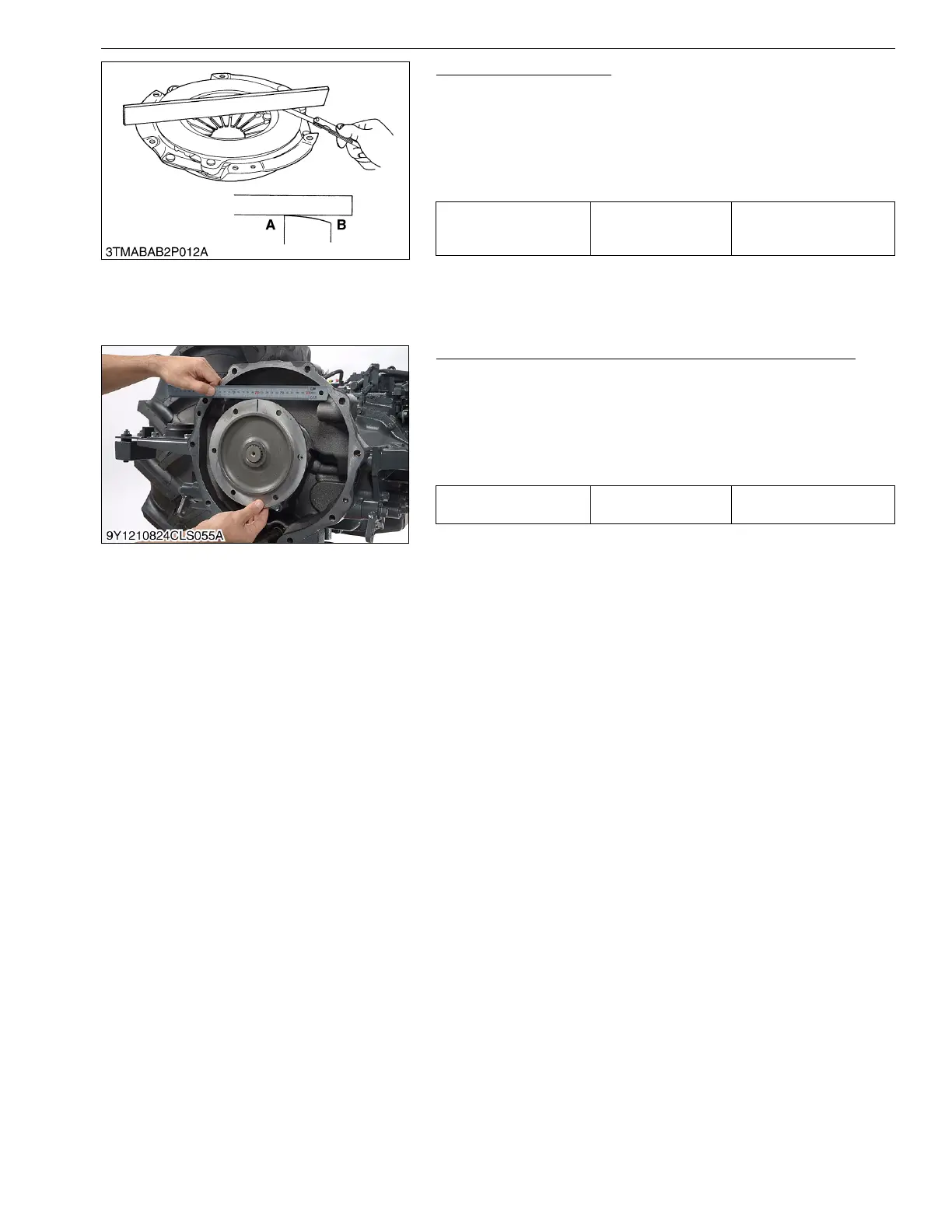

Pressure Plate Flatness
1. Place a straight edge on the pressure plate and measure
clearance with a feeler gauge at several points.
2. If the clearance exceeds the allowable limit, replace it.
3. When the pressure plate is worn around its outside and its
inside surface only is in contact with the straight edge, replace
even if the clearance is within the allowable limit.
9Y1210824CLS0033US0
[2] HST
Backlash between Clutch Coupling Boss and Input Shaft
1. Put a mark on the rim of the clutch coupling (see the picture on
the left) and mount the clutch coupling to the input shaft.
2. Hold the input shaft and move the clutch coupling to measure
the displacement of the mark.
3. If the displacement exceeds the allowable limit, replace the
clutch coupling.
9Y1210824CLS0034US0
Clearance between
pressure plate and
straight edge
Allowable limit
0.2 mm
0.008 in.
A: inside B: Outside
Displacement Allowable limit
1.5 to 2.0 mm
0.059 to 0.078 in.
