STEERING
L3560, L4060, L4760, L5060, L5460, L6060, WSM
7-S6

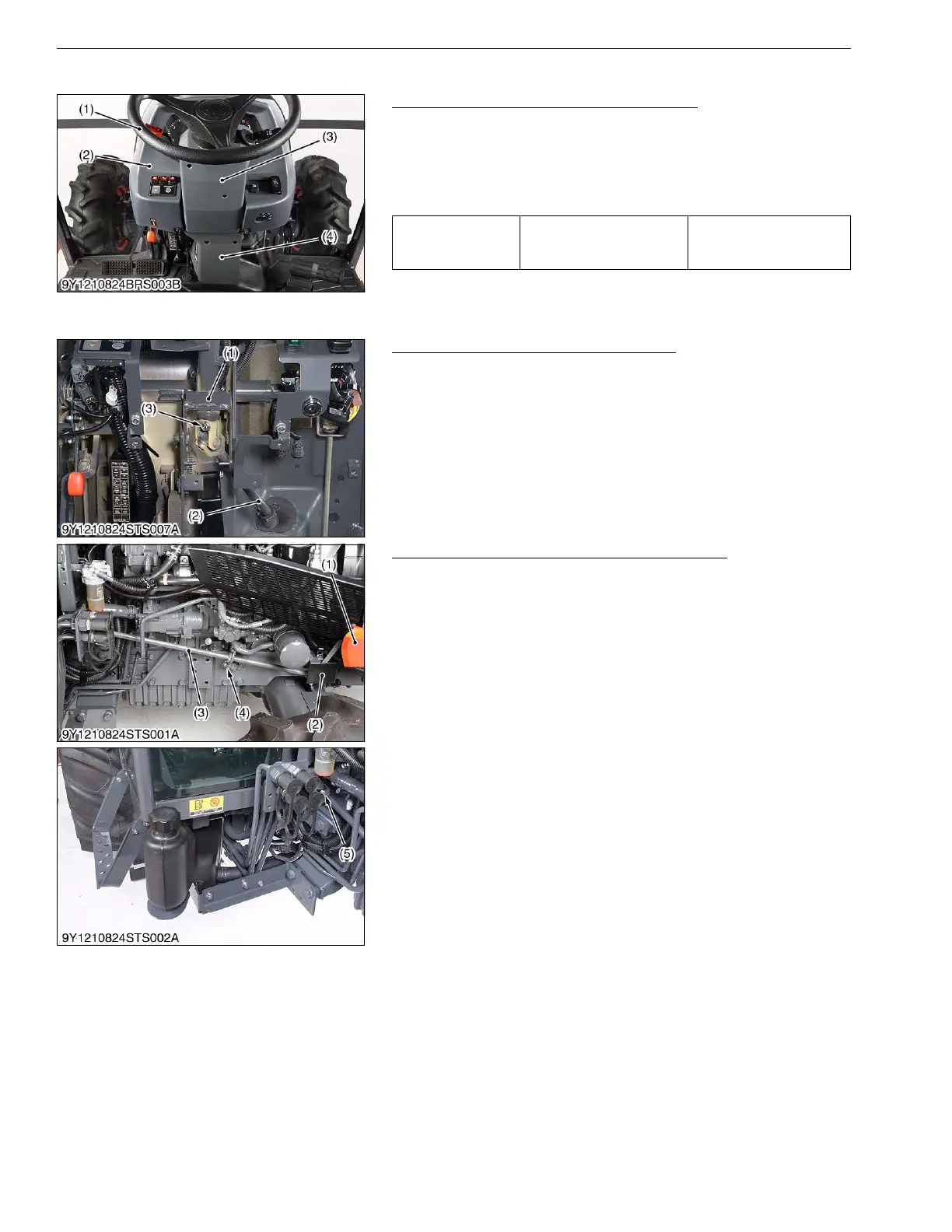

[2] STEERING LINKAGE
Steering Wheel and Steering Post Covers
1. Remove the steering wheel (1).
2. Remove the steering panel cover (2).
3. Remove the steering post cover 1 (3) and the steering post
cover 2 (4).
(When reassembling)
9Y1210824STS0010US0
Steering Joint Shaft and Steering Post
1. Remove the steering joint screw (3) and the steering joint shaft
(2).
2. Remove the steering post (1).
9Y1210824STS0011US0
Steering Joint Cover and Steering Joint Shaft
1. Pull down the knob and open the bonnet.
2. Remove the front grill (1).
3. Remove the steering joint cover (2).
4. Remove the steering joint screw (5) and the steering joint
support (4).
5. Remove the steering joint shaft (3).
(When reassembling)
• Tighten the steering joint shaft support mounting screw after
adjusting the position of steering joint shaft support (4) for
smooth rotation of the steering wheel.
9Y1210824STS0006US0
Tightening torque
Steering wheel mounting
nut
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
(1) Steering Wheel
(2) Panel Cover
(3) Steering Post Cover 1
(4) Steering Post Cover 2
(1) Steering Post
(2) Steering Joint Shaft
(3) Steering Joint Screw
(1) Front Grill
(2) Steering Joint Cover
(3) Steering Joint Shaft
(4) Steering Joint Shaft Support
(5) Steering Joint Screw
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
