GENERAL
L3560, L4060, L4760, L5060, L5460, L6060, WSM
G-6

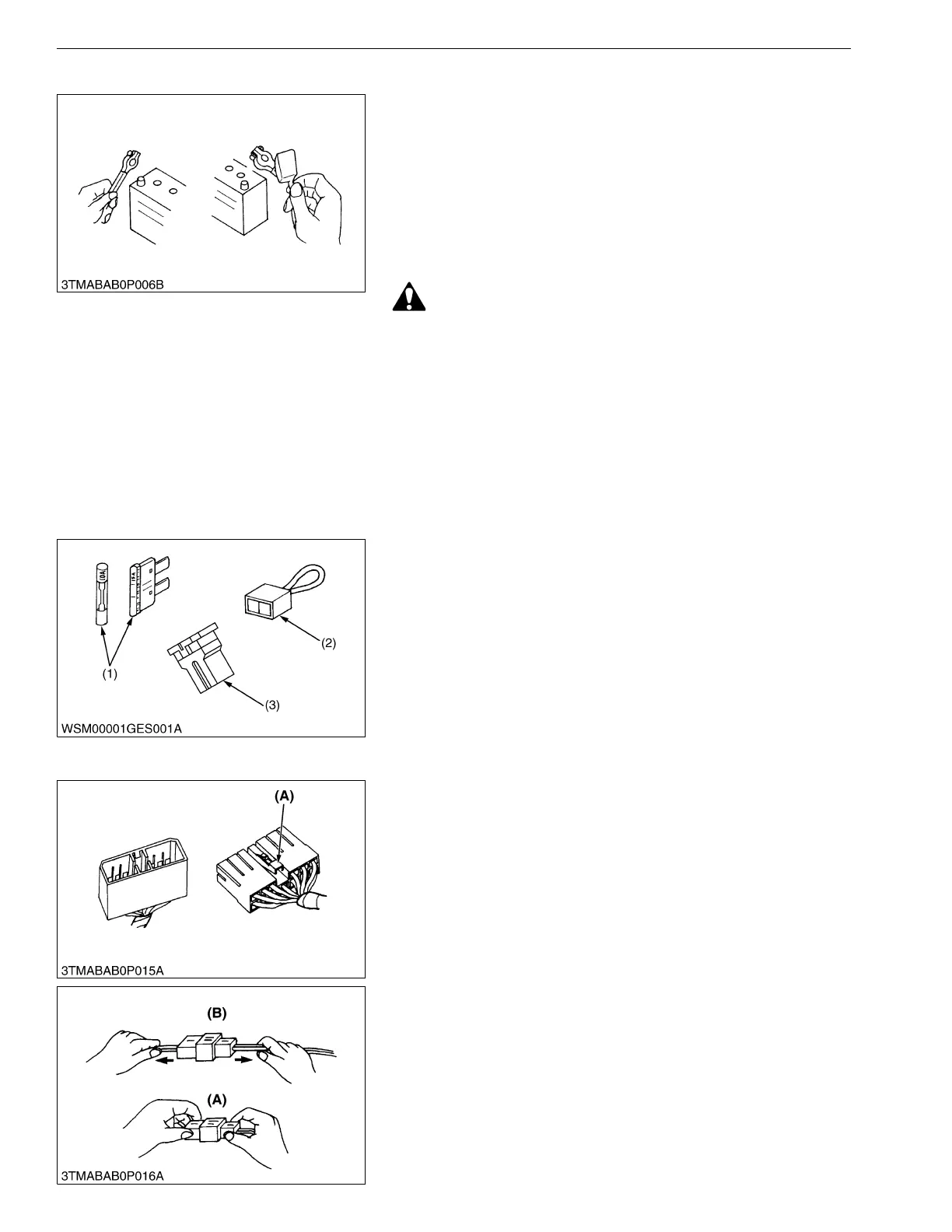

[2] BATTERY
• Be careful not to confuse positive and negative terminal posts.
• When you remove battery cables, disconnect negative cable
first. When you install battery cables, check for polarity and
connect positive cable first.
• Do not install any battery with capacity other than is specified
(Ah).
• After you connect cables to battery terminal posts, apply high
temperature grease to them and securely install terminal covers
on them.
• Do not allow dirt and dust to collect on battery.
To avoid serious injury or death:
• Be careful not to let battery liquid spill on your skin and
clothes. If contaminated, wash it off with water
immediately.
• Before you recharge the battery, remove it from the
machine.
• Before you recharge, remove cell caps.
• Recharge in a well-ventilated place where there is no open
flame nearby, as hydrogen gas and oxygen are formed.
WSM000001GEG0071US0
[3] FUSE
• Use fuses with specified capacity.
Neither too large nor small capacity fuse is acceptable.
• Never use steel nor copper wire in place of fuse.
• Do not install working light, radio set, etc. on machine which is
not provided with reserve power supply.
• Do not install accessories if fuse capacity of reserve power
supply is exceeded.
WSM000001GEG0072US0
[4] CONNECTOR
• For connector with lock, push lock to separate.
WSM000001GEG0073US0
• In separating connectors, do not pull wire harnesses.
• Hold connector bodies to separate.
WSM000001GEG0074US0
(1) Fuse
(2) Fusible Link
(3) Slow Blow Fuse
(A) Push
(A) Correct (B) Incorrect
