ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-M48

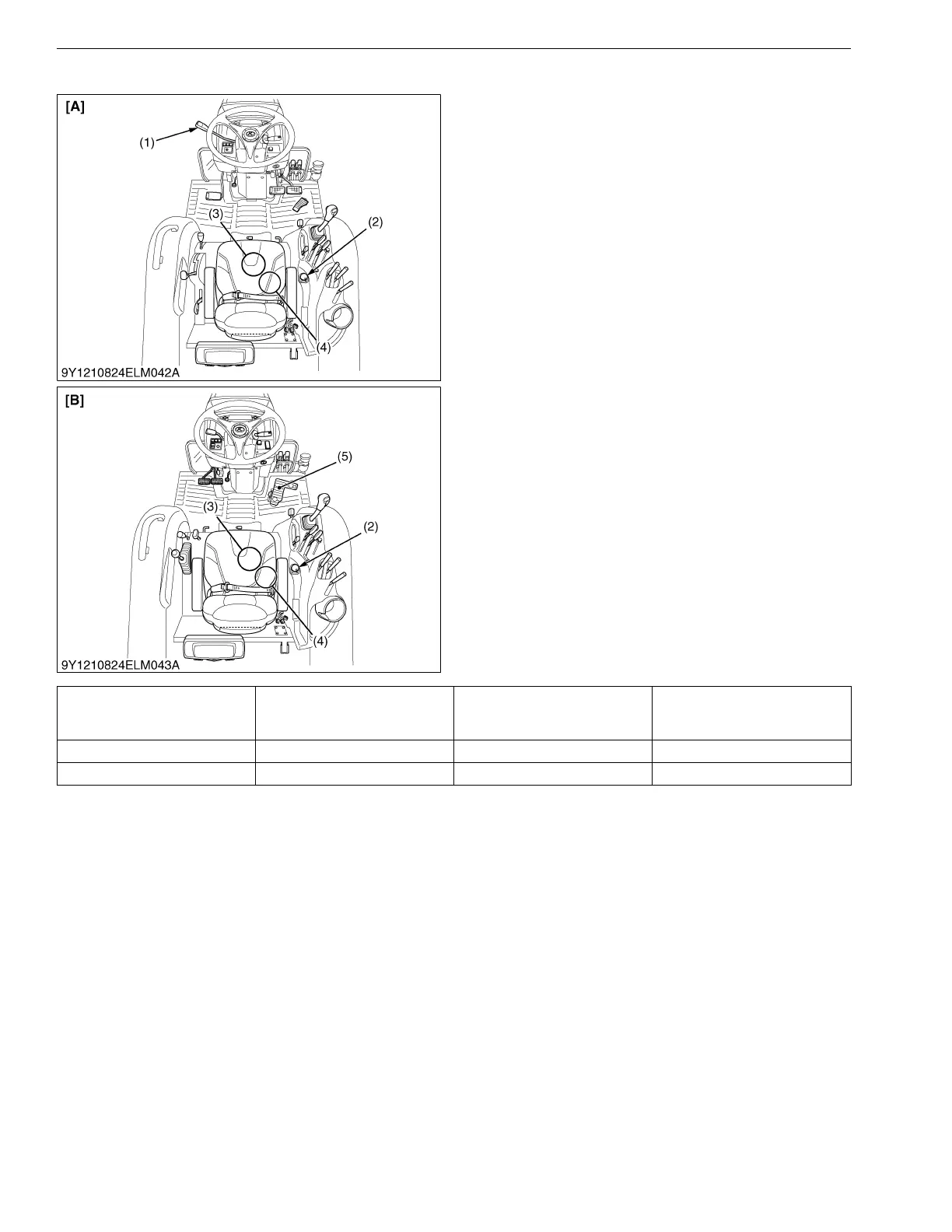

[5] ENGINE STARTING CONDITIONS
When the following conditions become complete,
electric voltage reaches starter AC terminal through
operator presence controller from main switch ST
terminal, and the engine can be started.
9Y1210824ELM0079US0
(1) Shuttle Shift Lever
(2) PTO Switch
(3) Seat Switch
(4) Seat Tilt Switch
(5) HST Pedal
[A] Manual Transmission and
GST
[B] HST
PTO Switch
(Neutral: OFF)
(Engaged: ON)
Shuttle Switch
(Neutral: OFF)
(Engaged: ON)
HST Pedal Sensor
(Neutral: OFF)
(Engaged: ON)
Manual Transmission and GST OFF OFF –
HST OFF – OFF
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
