Kubota WSM L3560 User Manual

ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-S82
(8) Camshaft Position Sensor
NOTE
• Since it is not possible to do unit checking for this sensor, judge the sensor is faulty if the relating electric
circuit is normal.
9Y1210824ELS0115US0
Connector Voltage
1. Disconnect the connector, and turn the main key switch "ON"
position.
2. Measure the voltage with a voltmeter across the terminals
shown in the table below.
3. If the reference value is not indicated as shown in the table
below, check the relating electric circuit.
9Y1210824ELS0116US0
Voltage
Main switch at
"ON"
Terminal 3 –
chassis
Approx. battery
voltage

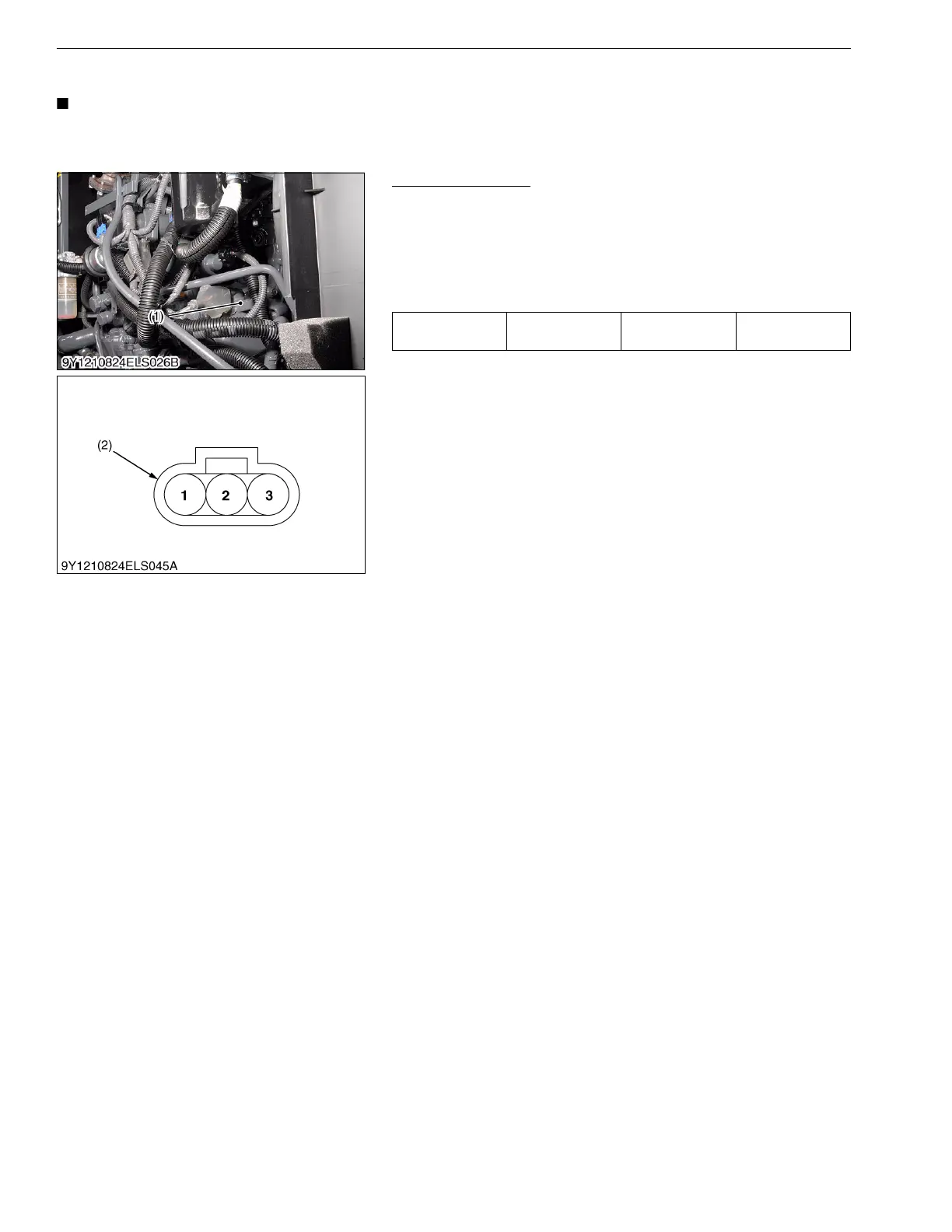

(1) Camshaft Position Sensor (2) Connector (Harness Side)
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
