Kubota WSM L3560 User Manual

HYDRAULIC SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
8-S17
[2] THREE POINT HITCH HYDRAULIC BLOCK ASSEMBLY
(1) Separating Hydraulic Block Assembly
Seat and Seat Bracket

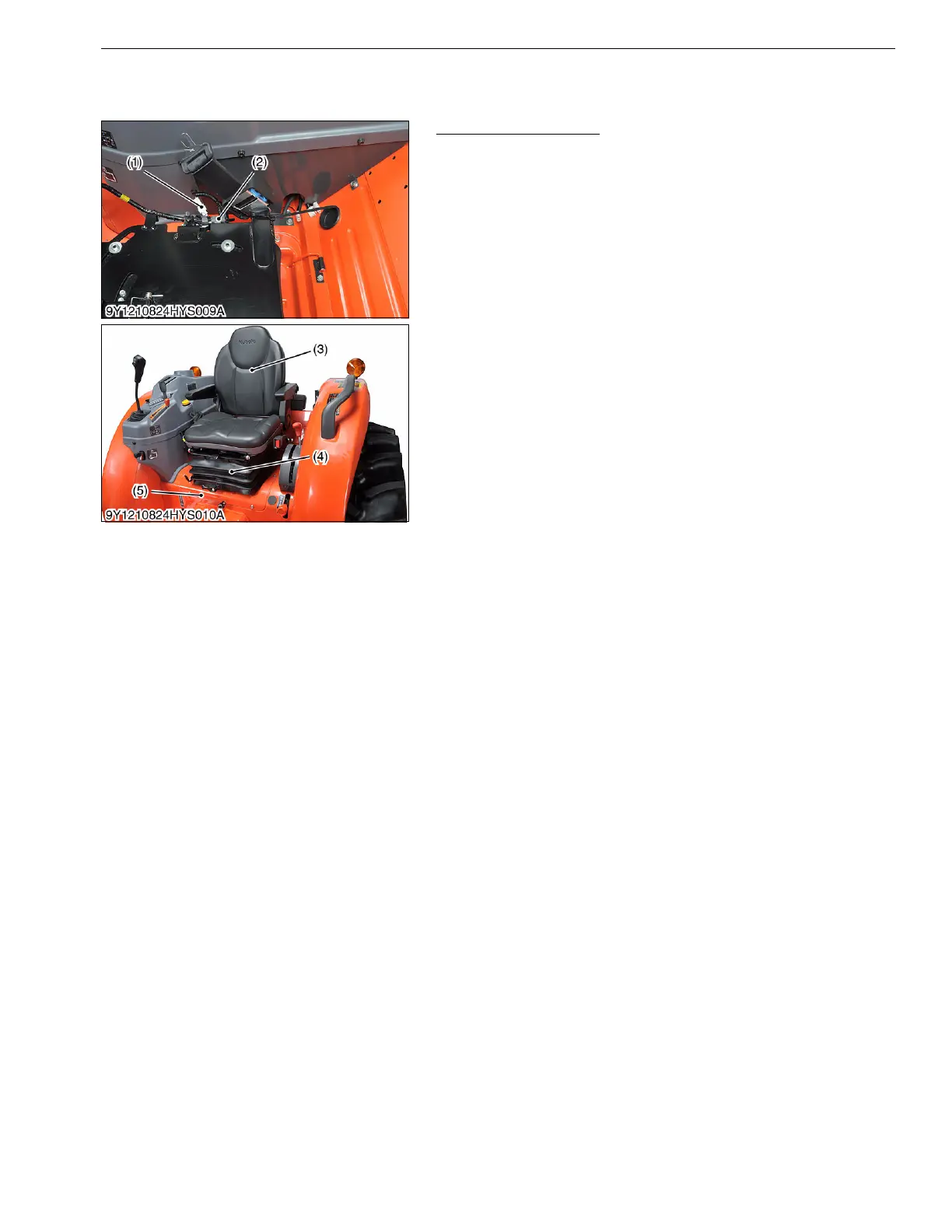

1. Disconnect the seat switch connector (1) and seat tilt switch
connector (2).
2. Remove the seat (3).
3. Remove the seat suspension (4) together with seat bracket (5).
9Y1210824HYS0018US0
(1) Seat Switch Connector
(2) Seat Tilt Switch Connector
(3) Seat
(4) Seat Suspension
(5) Seat Bracket
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
