TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-S121

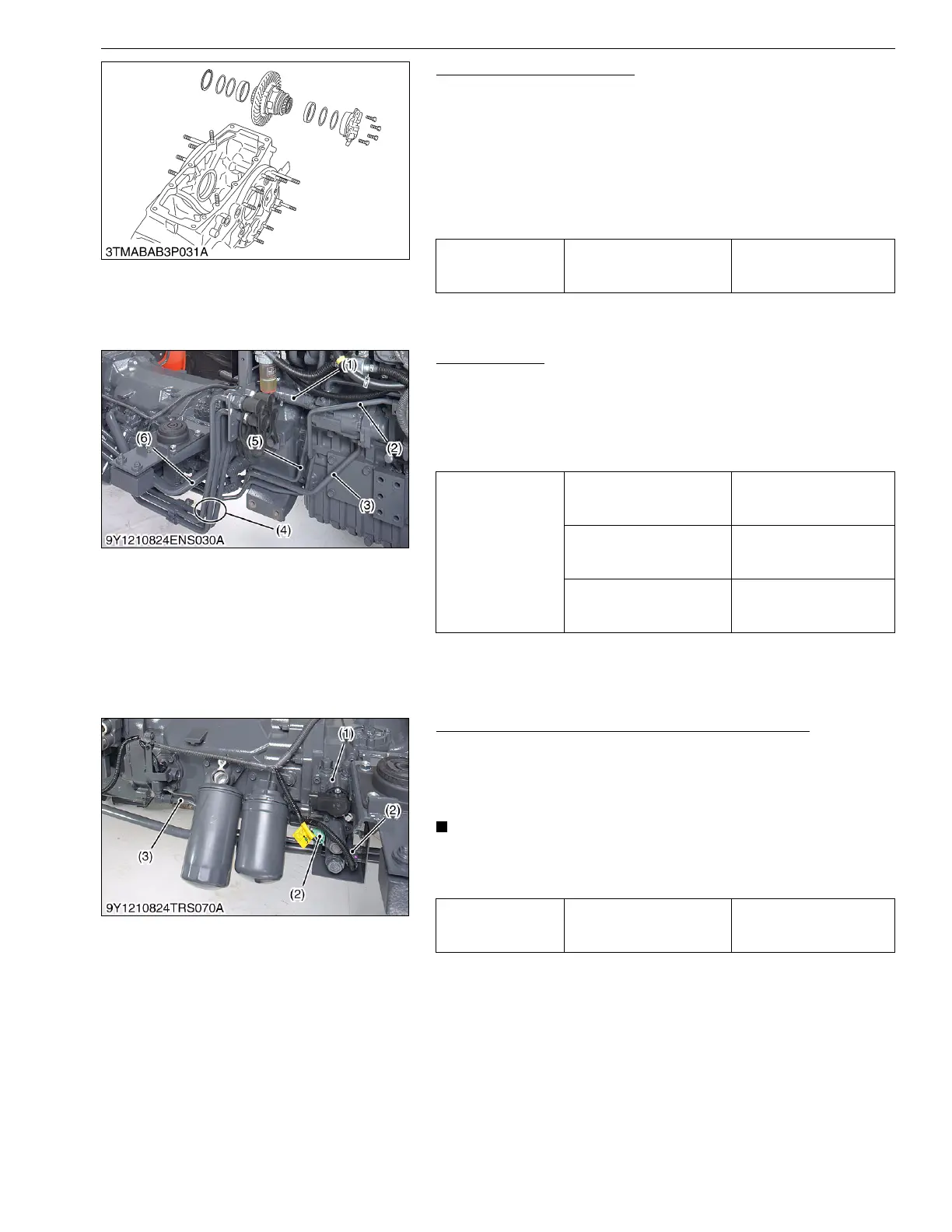

Differential Gear Assembly
1. Remove the differential support, noting the number of left shims.
2. Remove the differential gear assembly, noting the number of
right shims.
(When reassembling)
• Check the spiral bevel gear for wear or damage. If it is no longer
serviceable, replace it. Then, also replace the spiral bevel
pinion.
• Use same number of shims as before disassembling.
9Y1210824TRS0077US0
(4) Regulating Valve
Hydraulic Pipe
1. Remove the front loader pipes (4).
2. Disconnect the suction hose (1) and suction pipe (6).
3. Remove the main delivery pipe (3), power steering delivery pipe
(2) and delivery pipe (5).
(When reassembling)
9Y1210824ENS0023US0
PTO Delivery Pipe and Regulating Valve Assembly
1. Disconnect the proportional valve connector (2).
2. Remove the PTO delivery pipe (3).
3. Remove the regulating valve assembly (1).
(When reassembling)
• In installing the connector of the proportional valve, pay
attention to the color of the connector to ensure correct
installation.
9Y1210824TRS0125US0
Tightening torque
Differential support
mounting screw
48 to 55 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
Tightening torque
Front loader pipe retaining
nut
90.0 to 108 N·m
9.18 to 11.0 kgf·m
66.4 to 79.6 lbf·ft
Joint bolt for main delivery
pipe
40 to 49 N·m
4.0 to 4.9 kgf·m
29 to 36 lbf·ft
Joint bolt for delivery pipe
40 to 49 N·m
4.0 to 4.9 kgf·m
29 to 36 lbf·ft
(1) Suction Hose
(2) Power Steering Delivery Pipe
(3) Main Delivery Pipe
(4) Front Loader Pipe
(5) Delivery Pipe
(6) Suction Pipe
Tightening torque
Joint bolt for PTO delivery
pipe
35 to 39 N·m
3.5 to 4.0 kgf·m
26 to 28 lbf·ft
(1) Regulating Valve
(2) Proportional Valve Connector
(3) PTO Delivery Pipe
To Next Page
