Kubota WSM L3560 User Manual

TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-S122

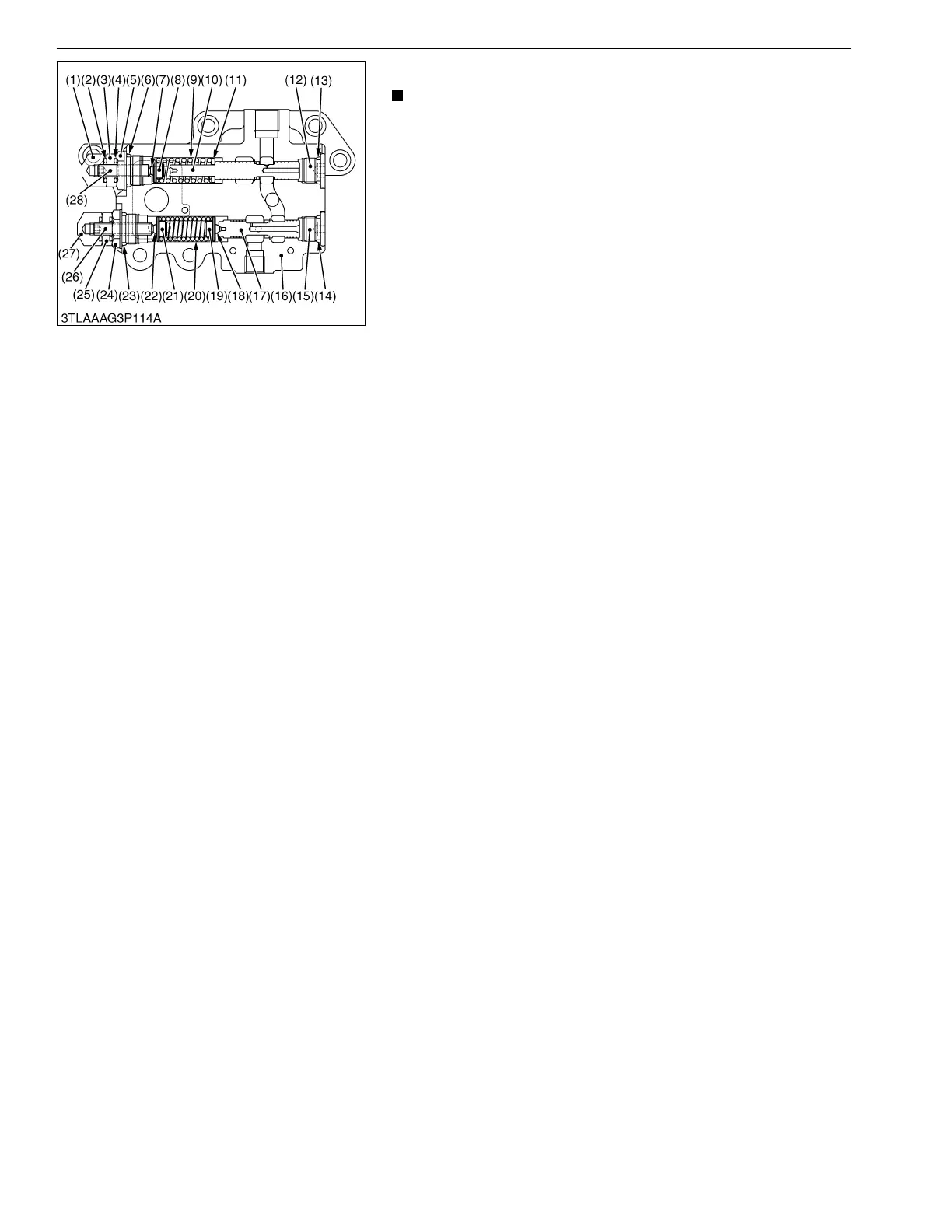

Disassembling Regulating Valve
NOTE
• The regulating valve has been precisely machined and
assembled. It is advisable not to disassemble it as long as
there is no necessary.
1. Remove the cap nuts (1), (27) and lock nuts (3), (25).
2. Remove the plugs (5), (24) with adjustor (28), (26).
3. Remove the plugs (12), (15).
4. Remove the spring retainers (8), (21) with balls (7), (22).
5. Remove the springs (9), (20).
6. Remove the collar (11) and retainer (8) with ball (7).
7. Remove the spools (10), (17).
(When reassembling)
• Be careful not to damage the O-rings.
9Y1210824TRS0126US0
(1) Cap Nut
(2) O-ring
(3) Lock Nut
(4) O-ring
(5) Plug
(6) O-ring
(7) Ball
(8) Retainer
(9) Spring
(10) Spool
(11) Collar
(12) Plug
(13) O-ring
(14) O-ring
(15) Plug
(16) Valve Body
(17) Spool
(18) Ball
(19) Retainer
(20) Spring
(21) Retainer
(22) Ball
(23) O-ring
(24) Plug
(25) Lock Nut
(26) Adjustor
(27) Cap Nut
(28) Adjustor
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
