ENGINE
L3560, L4060, L4760, L5060, L5460, L6060, WSM
1-S38

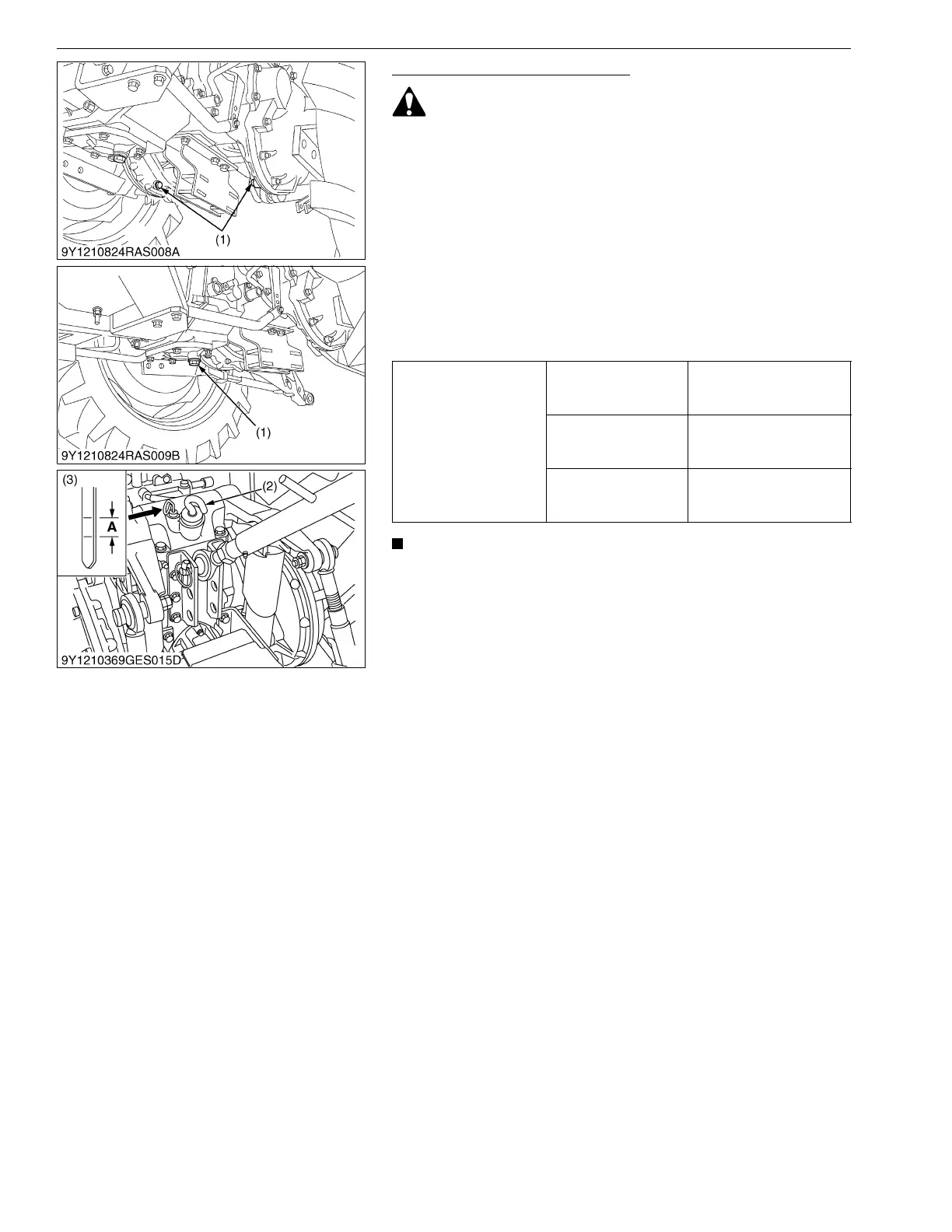

Draining the Transmission Fluid
CAUTION
• Allow the engine to cool down sufficiently, oil can be hot
and burn.
1. Place oil pans underneath the transmission case.
2. Remove the drain plugs (1).
3. Drain the transmission fluid completely.
4. Reinstall the drain plugs (1).
(When refilling)
• Fill up from filling port after removing the filling plug (2) until
reaching the upper notch on the dipstick (3).
• After running the engine for a few minutes, stop it and check the
oil level again, add the fluid to prescribed level if it is not correct
level.
HST
IMPORTANT
• Use only KUBOTA SUPER UDT fluid. Use of other oils may
damage the transmission or hydraulic system. (Refer to "4.
LUBRICANTS, FUEL AND COOLANT" on page G-9.)
• Do not mix different brands of fluid together.
9Y1210824CLS0013US0
Transmission fluid
capacity
L3560
42 L
11.1 U.S.gals
9.24 Imp.gals
L4060
L4760
43 L
11.4 U.S.gals
9.5 Imp.gals
L5460
L6060
45 L
11.9 U.S.gals
9.90 Imp.gals
(1) Drain Plugs
(2) Filling Plug
(3) Dipstick
A: Oil level is acceptable within this
range.
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
