TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-M24

(3) Function of Components

[A] Servomechanism

The servomechanism is mainly comprised of the servo piston and proportional valve.

Signals from the HST pedal flow to the ECU and transmit from the ECU to the proportional valve.

The servo piston is controlled by oil from the proportional valve.

Refer to Workshop Manual of "TRACTOR MECHANISM" (Code No. 9Y021-18200) for the operation of the

servomechanism, that is, the operation of servo piston.

 Valves

Check and high pressure relief. As for the mechanism and function of valve, charge relief valve and case relief

valve, Refer to Workshop Manual of "TRACTOR MECHANISM" (Code No. 9Y021-18200).

9Y1210824TRM0031US0

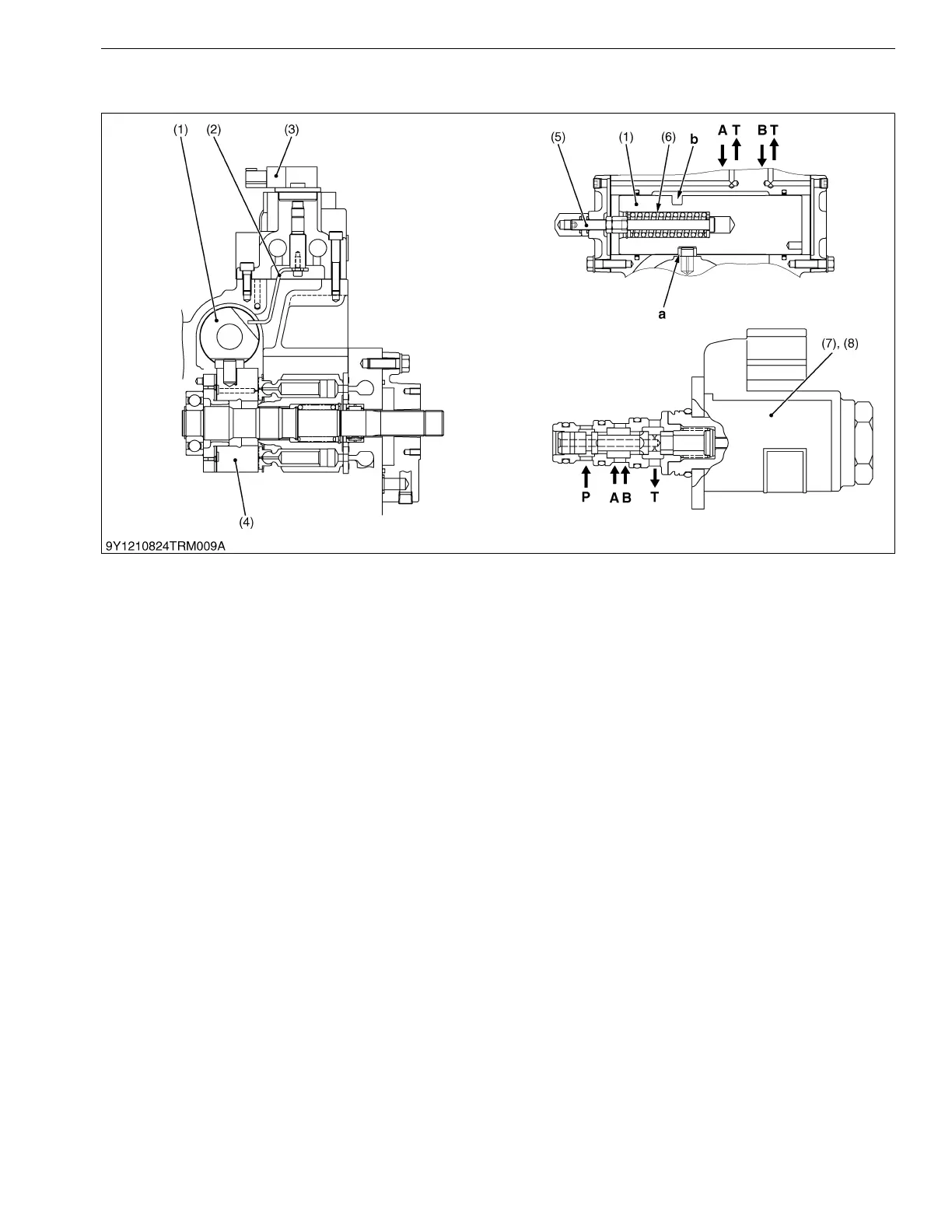

(1) Servo Piston

(2) Feedback Rod (Connected to

Swashplate Position Sensor)

(3) Swashplate Position Sensor

(4) Swashplate

(5) Piston Adjusting Screw

(6) Spring

(7) Proportional Valve (Forward)

(8) Proportional Valve (Reverse)

A: To Reverse Side

B: To Forward Side

a: Slit for Connection of

Swashplate

P: Pump Port

T: Tank Port

KiSC issued 03, 2016 A
