Kubota WSM L3560 User Manual

TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-S35
Front Grill, Skirts and Bonnet

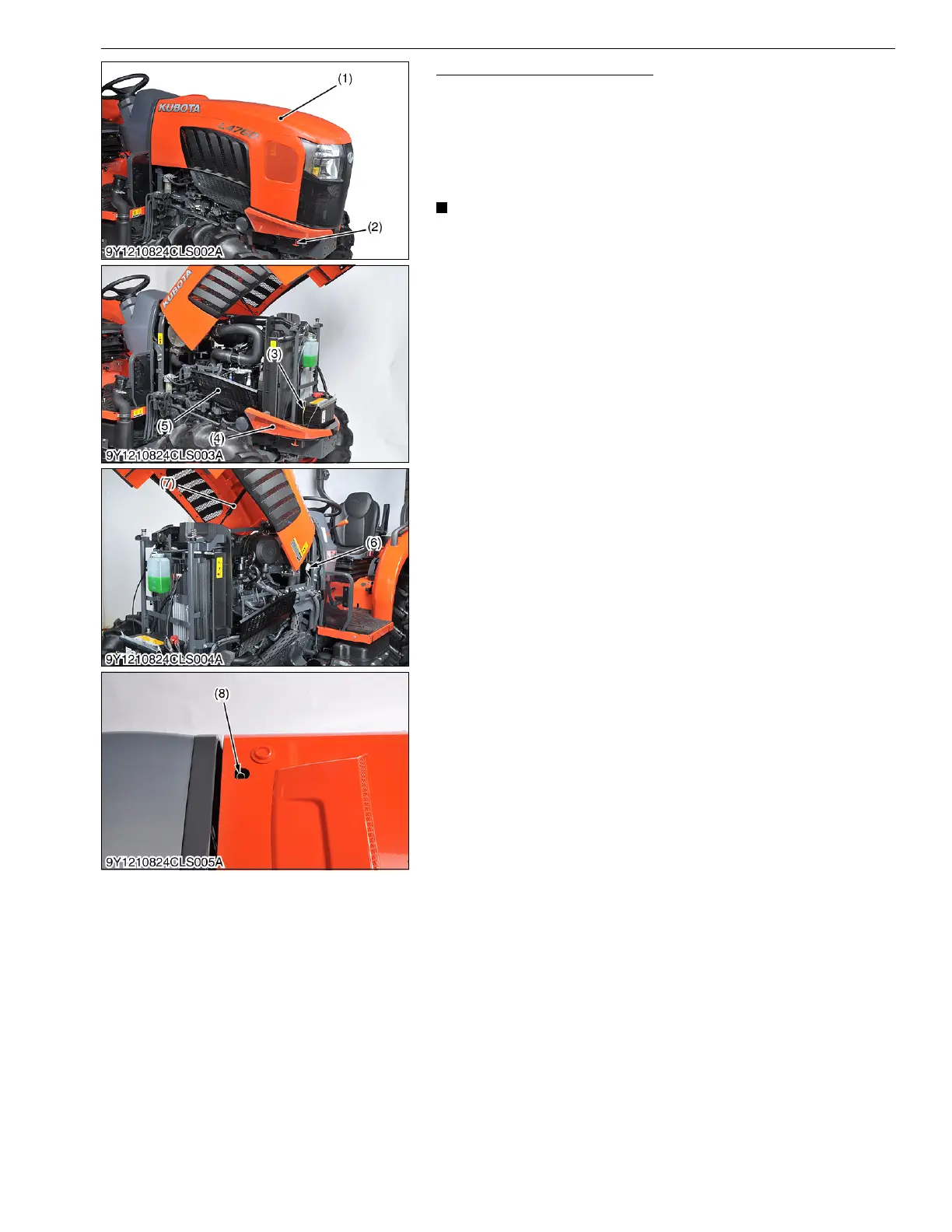

1. Pull down the knob (2) and open the bonnet (1).
2. Disconnect the battery negative cable (3).
3. Remove the front grill (4), left and right side skirts (5).
4. Disconnect the head light connector (6).
5. Remove the damper (7).
6. Remove the β pin (8), then the bonnet.
NOTE
• When disconnecting the battery cables, disconnect the
negative cable first. When connecting the battery cables,
connect the positive cable first.
9Y1210824CLS0006US0
(1) Bonnet
(2) Knob
(3) Battery Negative Cable
(4) Front Grill
(5) Skirt
(6) Head Light Connector
(7) Damper
(8) β Pin
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
