Kubota WSM L3560 User Manual

TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-S68

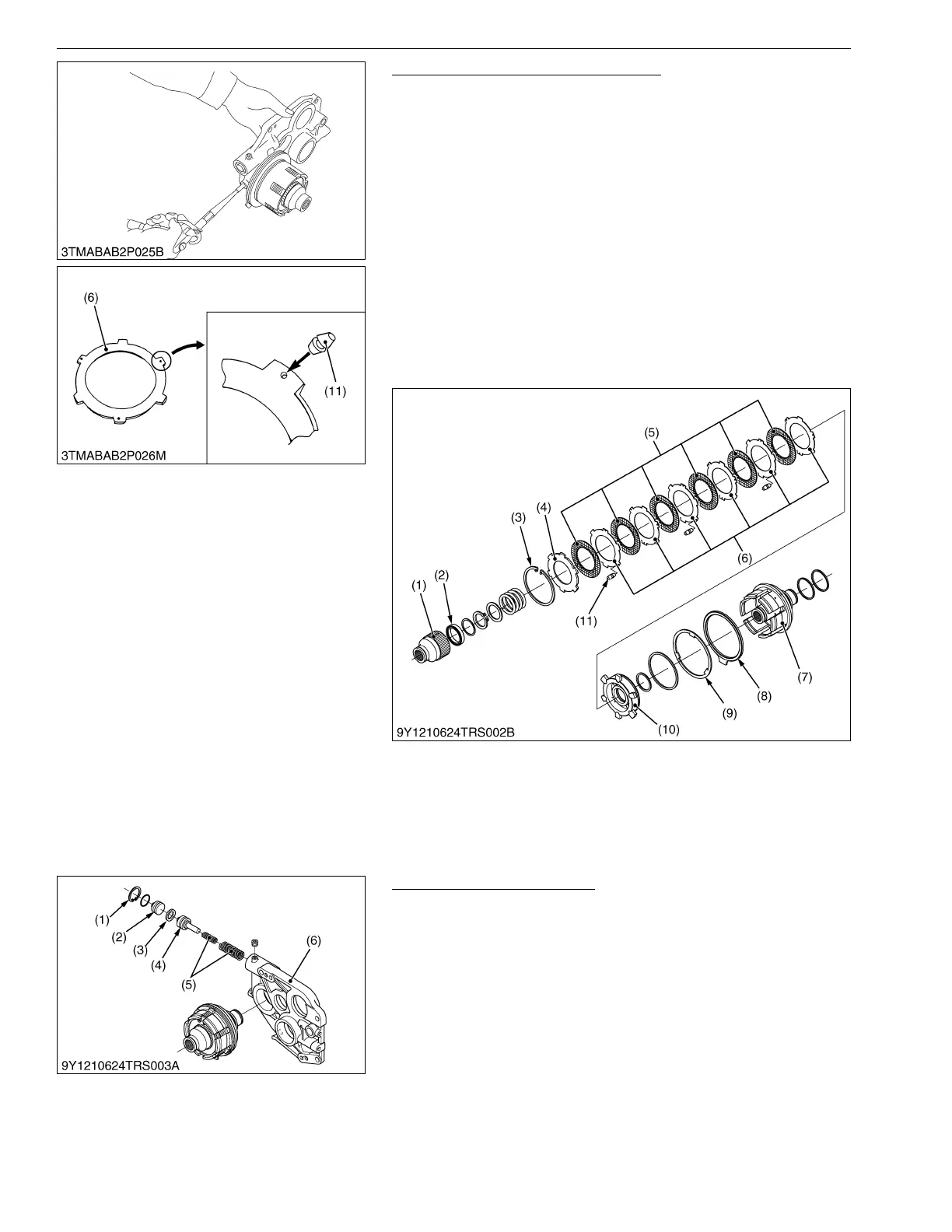

Clutch Discs and Hub of PTO Clutch
1. Remove the internal snap ring (3).
2. Remove the back plate (4), clutch discs (5), clutch plates (6),
hub (1) and bearing (2).
(When reassembling)
• Install the clutch plates (5) and clutch plates (6) mutually.
• Do not confuse the two types of clutch plates (6). The clutch
plates with the plug rubbers (11) are clutch plates (7) and
without plug rubbers are clutch plates (6).
• Do not confuse the back plate (4) and clutch plates (6). The
back plate (4) is thicker than the clutch plates (6).
• Assemble the plug rubbers (11) portion 08 the clutch plates (6)
are same positions while assemble them.)
• Apply the enough transmission fluid to the clutch discs (5).
• Make sure the moving of the piston (10) smoothly when
pressure air at 0.29 to 0.39 MPa (3 to 4 kgf/cm
2
, 42 to 57 psi) is
sent to clutch pack.
9Y1210824TRS0027US0
Accumulator of PTO Clutch
1. Remove the internal snap ring (1).
2. Remove the cover (2).
3. Draw out the piston (4) and springs (5).
(When reassembling)
• Apply small amount of the grease to the O-ring and the piston
seal (3).
9Y1210824TRS0028US0
(1) Hub
(2) Bearing
(3) Internal Snap Ring
(4) Back Plate
(5) Clutch Disc
(6) Clutch Plate
(7) Clutch Case
(8) Brake Disc
(9) Brake Plate
(10) Piston
(11) Plug Rubber
(1) Internal Snap Ring
(2) Cover
(3) Piston Seat
(4) Piston
(5) Spring
(6) Bearing Holder
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
