Kubota WSM L3560 User Manual

TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-S97

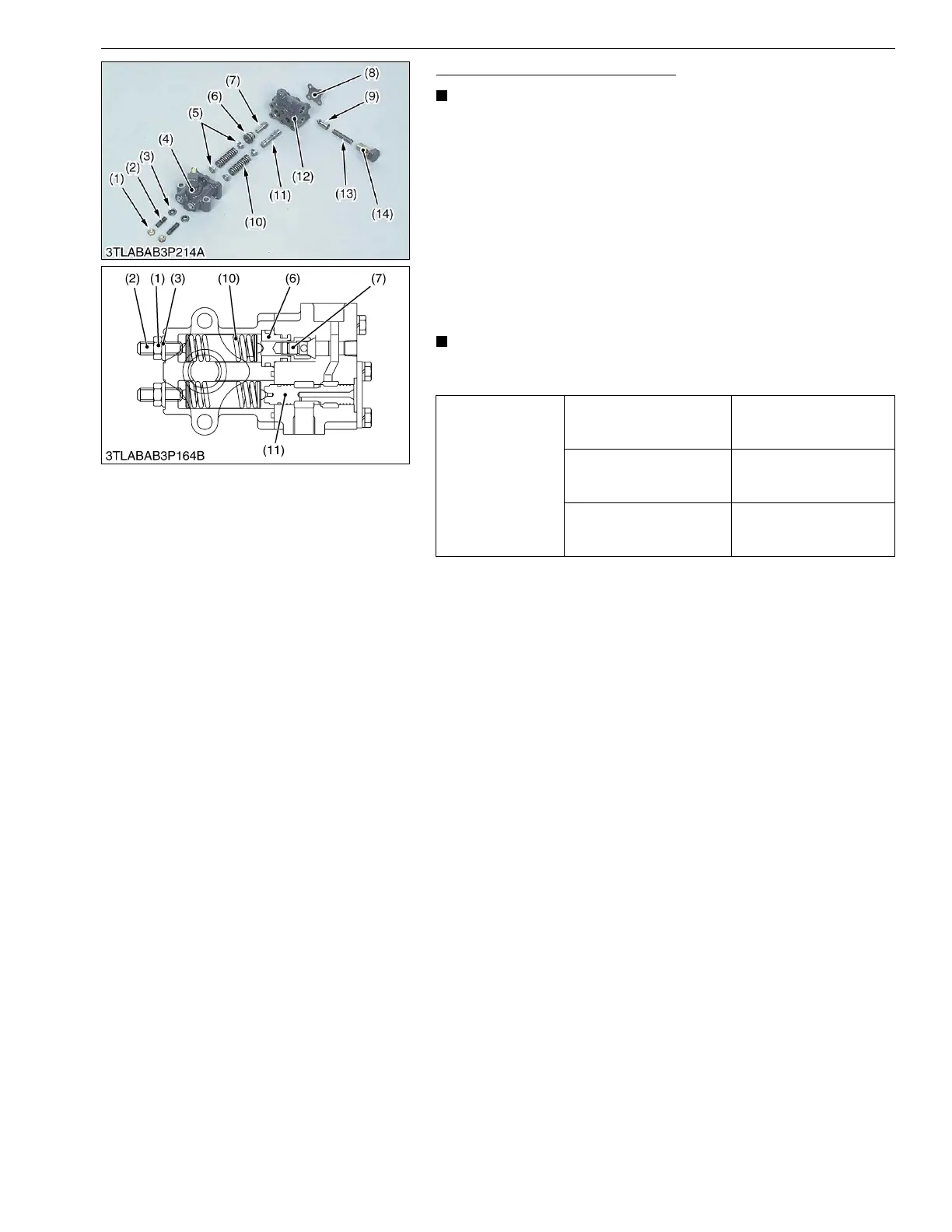

Disassembling Regulating Valve
NOTE
• The regulating valve has been precisely machined and
assembled. It is advisable not to disassemble it as long as
there is no necessary.
1. Remove the plate (8), reducing spool (11), spring retainer (5)
and spring (10).
2. Separate the regulating valve case (12) and support (4).
3. Remove the bush (6) and poppet (7).
4. Remove the joint bolt (14).
5. Remove the spring (13) and the poppet (9).
6. Remove the spring retainer (5) and spring (10).
(When reassembling)
• Be careful not to damage the O-rings.
IMPORTANT
• After reassembling, the adjustment of regulating pressure
should be performed.
9Y1210824TRS0081US0
Tightening torque
Joint bolt (14)
35 to 39 N·m
3.5 to 4.0 kgf·m
26 to 28 lbf·ft
Plate (8)
9.8 N·m
1.0 kgf·m
7.2 lbf·ft
Regulating valve case and
support mounting screws
9.8 N·m
1.0 kgf·m
7.2 lbf·ft
(1) Nut
(2) Adjustor
(3) Washer with Rubber
(4) Support
(5) Spring Retainer
(6) Bush
(7) Poppet
(8) Plate
(9) Poppet
(10) Spring
(11) Reducing Spool
(12) Regulating Valve Case
(13) Spring
(14) Joint Bolt
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
