TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-S113

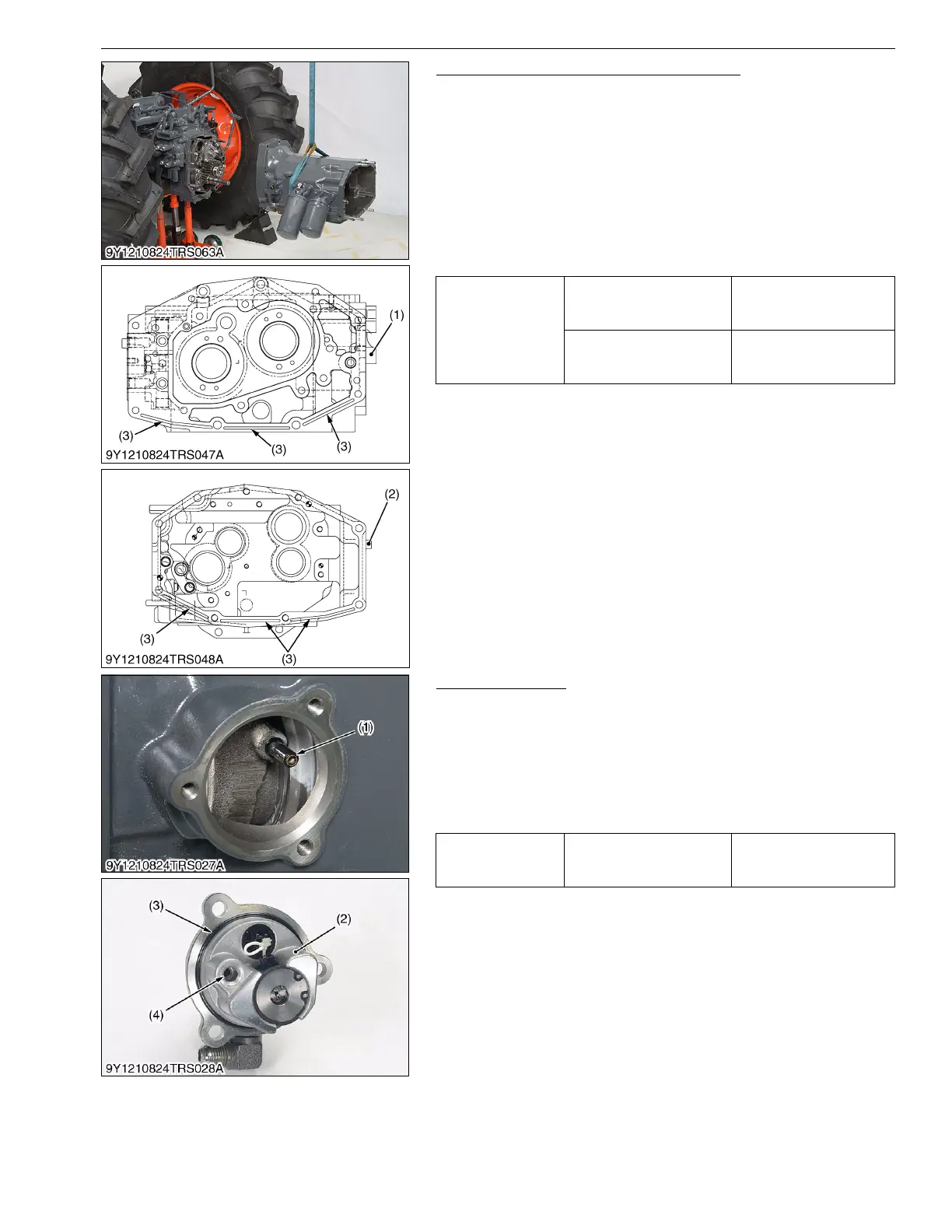

Separating Clutch Housing and Mid Case
1. Remove the clutch housing and mid case mounting screws and
nuts.
2. Separate the clutch housing (1) and mid case (2).
(When reassembling)
• Gasket should be replaced with new one.
• Apply liquid gasket (Three Bond 1208C or equivalent) to joint
face of the clutch housing (1) and mid case (2).
• Make sure to apply liquid gasket to elongated grooves (3) on the
mid case face and to those on the lower side of the clutch
housing face.
9Y1210824TRS0114US0
PTO Clutch Valve
1. Remove the PTO clutch valve (2) as a unit.
2. Pull out the pipe (1).
(When reassembling)
• Apply small amount of grease for the O-ring (3).
• Install the pipe (1) to the hole (4) of the PTO clutch valve (2)
firmly.
• Replace the pipe (1) with a new one.
9Y1210824TRS0023US0
Tightening torque
Clutch housing and mid
case mounting screw
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Clutch housing and mid
case mounting nut
103 to 117 N·m
10.5 to 12.0 kgf·m
76.0 to 86.7 lbf·ft
(1) Clutch Housing
(2) Mid Case
(3) Elongated Groove
Tightening torque
PTO clutch valve mounting
screw
23.5 to 27.4 N·m
2.40 to 27.4 kgf·m
17.4 to 20.2 lbf·ft
(1) Pipe
(2) PTO Clutch Valve
(3) O-ring
(4) Hole
