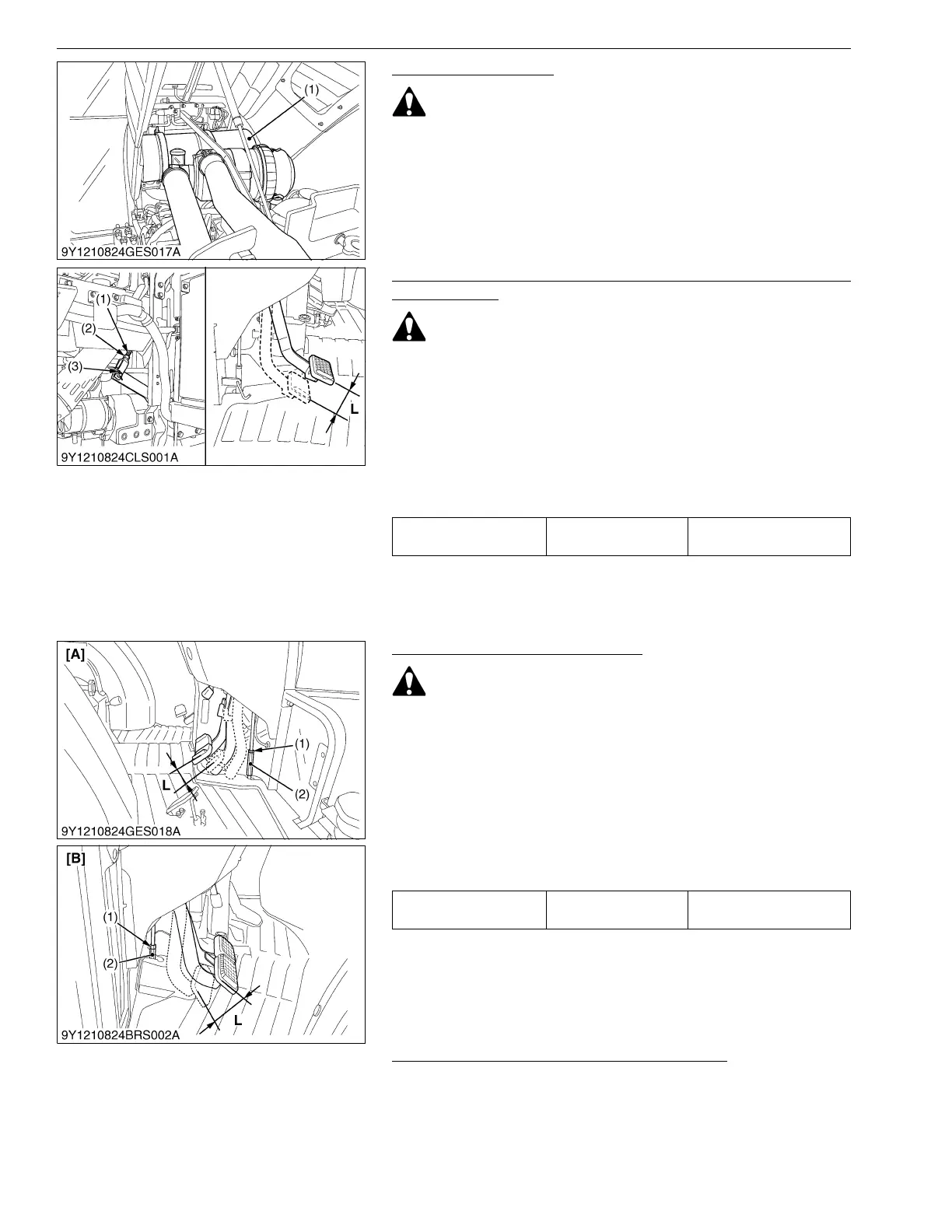

Checking DPF Muffler
• Before checking or cleaning the DPF muffler, stop the
engine and wait long enough until it is cooled down.
1. Check the DPF muffler and its surroundings for build-up of
anything flammable. Otherwise a fire may result.
9Y1210824GEG0020US0
Checking Clutch Pedal Free Travel (GST / Manual
Transmission)
• When checking, park the tractor on flat ground, apply the
parking brake, stop the engine and remove the key.
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and measure free travel "L" at
top of clutch pedal.
3. If the measurement is not within the factory specifications,
loosen the lock nut (2), remove the clevis pin (3) adjust the
length of rod (1) within acceptable limits.
4. Retighten the lock nut (2) and split the cotter pin.
9Y1210824GEG0021US0
Checking Brake Pedal Free Travel
• Stop the engine and chock the wheels before checking
brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedal and measure free travel "L" at
top of pedal stroke.
3. If the measurement is not within the factory specifications,
loosen the lock nut (1) and turn the turnbuckle (2) to adjust the
rod length within acceptable limits.
4. Retighten the lock nut (1) securely.
Keep the free travel in the right and left brake pedals equal.
9Y1210824GEG0022US0
Checking Gauges, Meter and Easy Checkerâ„¢
1. Inspect the instrument panel for broken gauge(s), meter(s) and
Easy Checkerâ„¢.
2. Replace if broken.
9Y1210824GEG0023US0
(1) DPF Muffler
Clutch pedal free travel
"L"
Factory specification
20 to 30 mm
0.8 to 1.2 in.
(1) Clutch pedal Rod
(2) Lock Nut
(3) Clevis Pin
L: Free Travel
Brake pedal free travel
"L"
Factory specification
15 to 20 mm
0.59 to 0.78 in.
(1) Lock Nut
(2) Turnbuckle
[A] GST / Manual Transmission
[B] HST
L: Free Travel
