STEERING
L3560, L4060, L4760, L5060, L5460, L6060, WSM
7-M6
5. STEERING CYLINDER
The steering cylinder is single piston both rod double-acting type. This steering cylinder is installed parallel to the
front axle and connected to tie-rods (1).
The tie-rods (1) connected to both knuckle arm guarantees equal steering movement to both front wheels.
The steering cylinder provides force in both directions. Depending upon direction the steering wheel is turned
pressure oil enters at one end of the cylinder to extend, or the other end to retract it, thereby turning front wheel of
the tractor.
9Y1210824STM0007US0

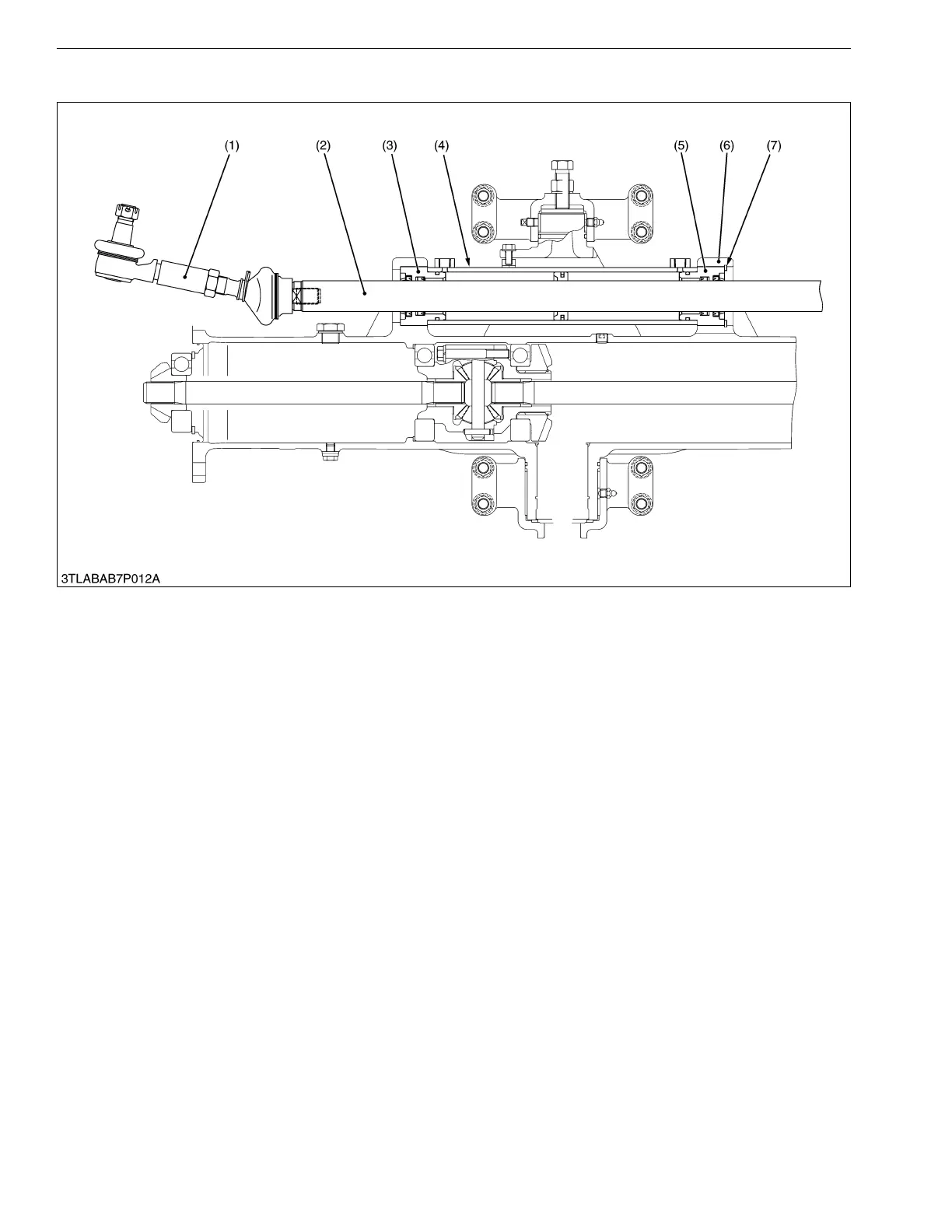

(1) Tie-rod
(2) Piston Rod
(3) Head Cover
(4) Cylinder Tube
(5) Head Cover
(6) Front Axle Case
(7) Internal Snap Ring
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
