GENERAL
L3560, L4060, L4760, L5060, L5460, L6060, WSM
G-28

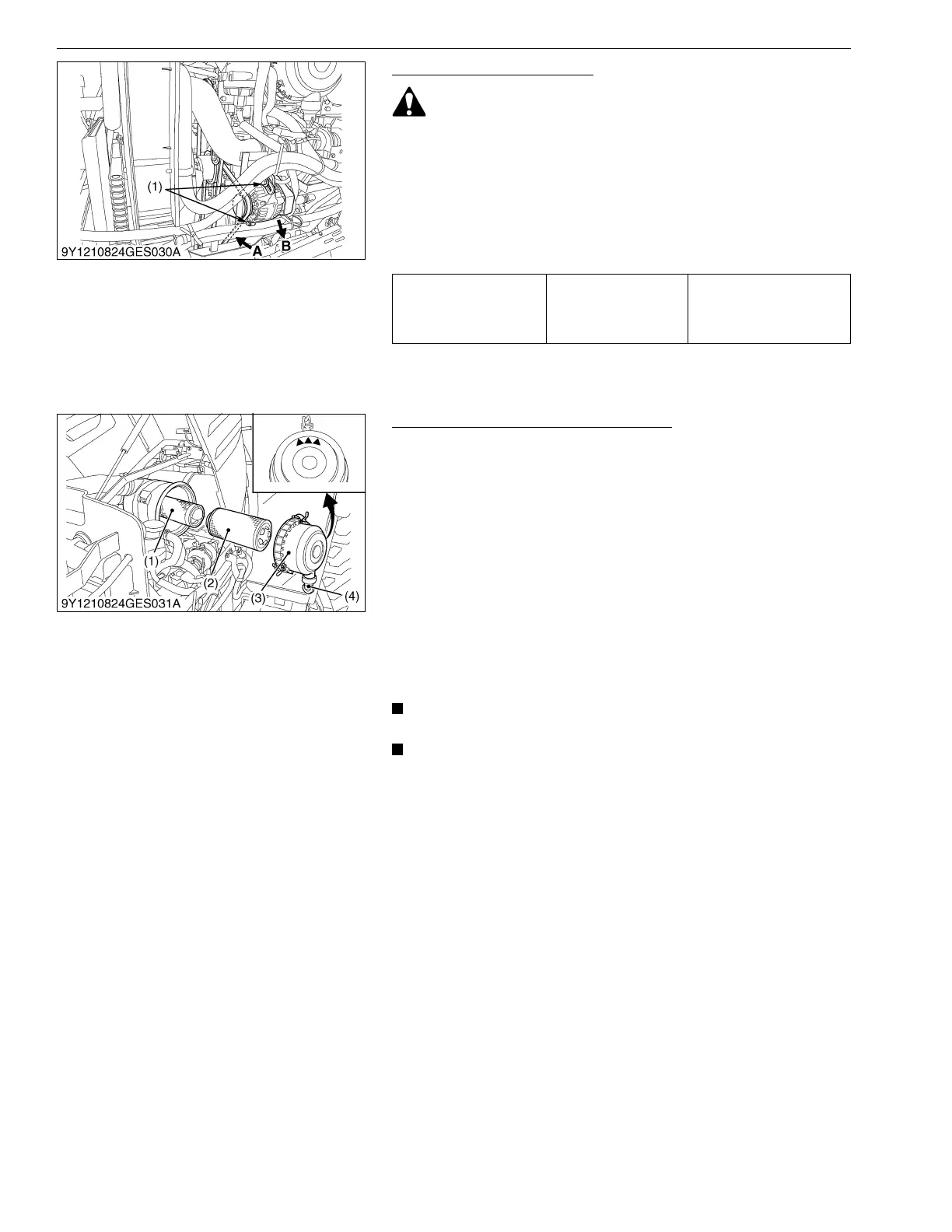

Adjusting Fan Belt Tension
• Be sure to stop the engine before checking fan belt tension.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to belt between pulleys.
3. If tension is incorrect, loosen the alternator mounting bolts and
using a lever placed between the alternator and the engine
block, pull the alternator out until the deflection of the belt falls
within acceptable limits.
4. Replace fan belt if it is damaged.
9Y1210824GEG0041US0
Cleaning Air Cleaner Primary Element
1. Remove the air cleaner cover and primary element.
2. Clean the primary element:
– When dry dust adheres to the element, blow compressed air
from the inside turning the element. Pressure of
compressed air must be under 205 kPa (2.1 kgf/cm
2
,
30 psi).
– When carbon or oil adheres to the element, soak the
element in detergent for 15 minutes then wash it several
times in water, rinse with clean water and dry it naturally.
After element is fully dried, inspect inside of the element
with a light and check if it is damaged or not.
3. Replace air cleaner primary element:
Once yearly or after every six times of cleaning, whichever
comes first.
• Check to see if the evacuator valve is blocked with dust.
• The air cleaner uses a dry element, never apply oil.
• Do not run the engine with filter element removed.
• Be sure to refit the cover with the arrow ↑ (on the rear of
cover) upright. If the cover is improperly fitted, evacuator
valve will not function and dust will adhere to the element.
• Do not touch the secondary element except in cases where
replacing is required.
Evacuator Valve
Open the evacuator valve (4) once a week under ordinary
conditions or daily when used in a dusty place to get rid of large
particles of dust and dirt.
9Y1210824GEG0042US0
Fan belt tension Factory specification
A deflection of between 7
to 9 mm (0.28 to 0.34 in.)
when the belt is pressed in
the middle of the span.
(1) Alternator Mounting Bolt A: Check the belt tension
B: To Tighten
(1) Secondary (Safety) Element
(2) Primary Element
(3) Cover
(4) Evacuator Valve
To Next Page
