ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-M37
Overheating Warning
The indicator needle reaches the red zone position,
engine coolant is overheated.
The electronic instrument panel informs the rise of
coolant temperature, and overheat warning as shown in
the table below.
9Y1210824ELM0061US0
Engine Oil Pressure and Electric Charging Warning
If the engine oil pressure goes below the 50 kPa
(0.5 kgf/cm
2
, 7 psi), the engine oil pressure warning
indicator (1) will come on. If this should happen during
operation, and it does not go off when the engine is
accelerated to more than 700 min
-1
(rpm), check level of
engine oil.
If the alternator is not charging the battery, electrical
charge warning indicator (2) will come on. If this should
happen during operation, check the charging system.
At above-mentioned the warning indicator's lighting,
and it informs warning.
9Y1210824ELM0062US0

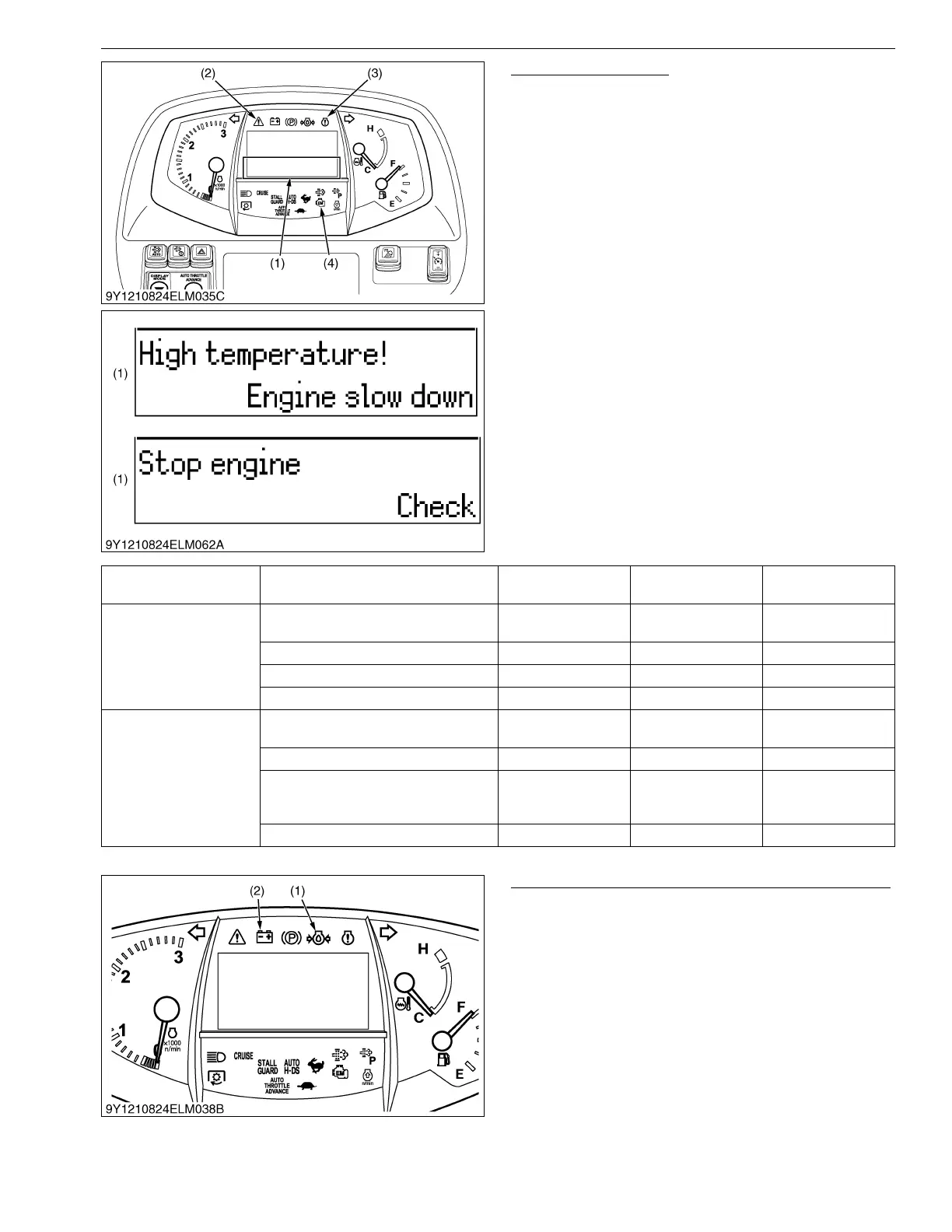

(1) Liquid Crystal Display (LCD)
(2) Master System Warning
Indicator
(3) Engine Warning Indicator
(4) Emission Indicator
Coolant Temperature Electronic Instrument Panel
101 to 109 °C
(214 to 228 °F)
110 to 119 °C
(230 to 246 °F)
120 °C (248 °F)
or more
Normal → High
LCD (1) – –
High Temperature !
Engine slow down
Engine Warning Indicator (3) – – Light Up
Emission Indicator (4) – Light Up Light Up
Master System Warning Indicator (2) – – Blink
High → Normal
LCD (1)
Stop engine
Check
High Temperature !
Engine slow down
High Temperature !
Engine slow down
Engine Warning Indicator (3) Light Up Light Up Light Up
Emission Indicator (4)
Light Up
(107 to 109 °C)
(225 to 228 °F)
Light Up Light Up
Master System Warning Indicator (2) Blink Blink Blink
(1) Engine Oil Pressure Warning
Indicator
(2) Electric Charge Warning
Indicator
