GENERAL
L3560, L4060, L4760, L5060, L5460, L6060, WSM
G-38

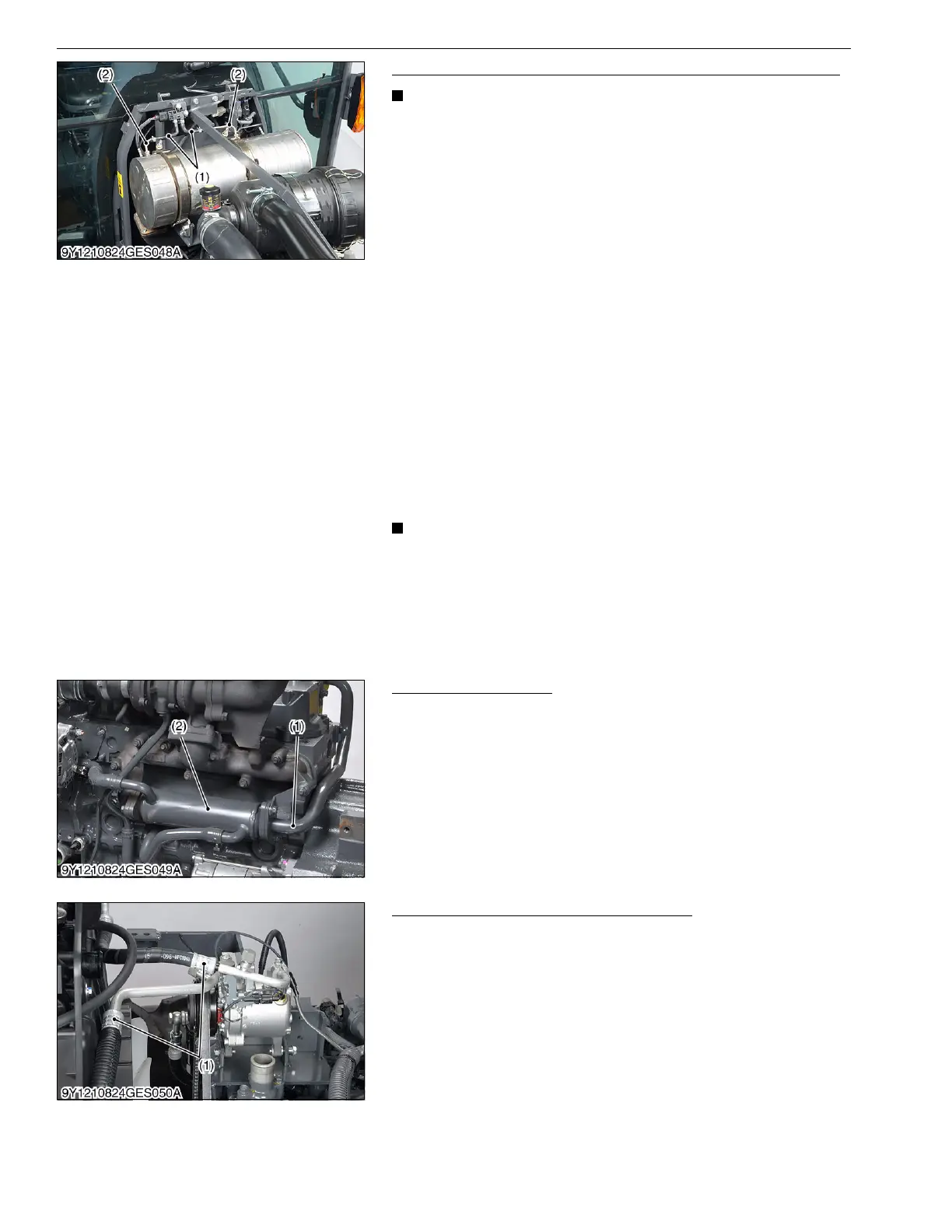

Checking DPF Differential Pressure Sensor Pipes and Hoses
IMPORTANT
• Be sure to loosen the differential pressure pipe tightening
nut with crowfoot wrench to prevent the damage of the
sensor or pipe.
If it is still hard to loosen, apply the lubricant spray to
threaded portion and soak it with lubricant.
• Tighten bolts and nuts to their specified torque.
Also tighten the differential pressure pipe tightening nut to
the specified torque with crowfoot wrench.
1. Check the DPF differential pressure sensor pipe (2) for crack,
gas leakage and loose mounting nut.
2. If you find a crack, change the DPF differential pressure sensor
pipe (2).
3. If you find a gas leakage, remove the DPF differential pressure
sensor pipe (2) and wipe off the anti-seize & lubricating
compound.
4. Apply the anti-seize & lubricating compound again, then tighten
the DPF differential pressure sensor pipe (2) to the specified
torque.
5. Check the DPF differential pressure sensor hose (1) for crack,
gas leakage.
6. If you find a crack or gas leakage, change the DPF differential
pressure sensor hose (1).
NOTE
• When you change the DPF differential pressure pipe, apply
the anti-seize & lubricating compound (Bostik,
NEVER-SEEZ, Pure nickel special grade) to the DPF
differential pressure pipe.
9Y1210824GEG0072US0
Checking EGR Piping
1. Examine the EGR cooler (2) and the EGR pipe (1) for crack, gas
leakage and loose mounting screw.
2. If you find a crack, change the cracked EGR cooler (2) or the
cracked EGR pipe (1).
3. If you find a gas leakage, tighten the mounting screw again or
replace the gasket with a new one.
4. If you find a loose mounting screw, tighten the mounting screw
again.
9Y1210824GEG0073US0
Checking Air-Conditioner Pipe and Hose
1. Check to see that all lines and hose clamps are tight and not
damaged.
2. If hoses (1) and clamps are found worn or damaged, replace or
repair them at once.
9Y1210824GEG0074US0
(1) DPF Differential Pressure Sensor
Hose
(2) DPF Differential Pressure Sensor
Pipe
(1) EGR Pipe (2) EGR Cooler
(1) Hose
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
