Kubota WSM L3560 User Manual

ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-S97

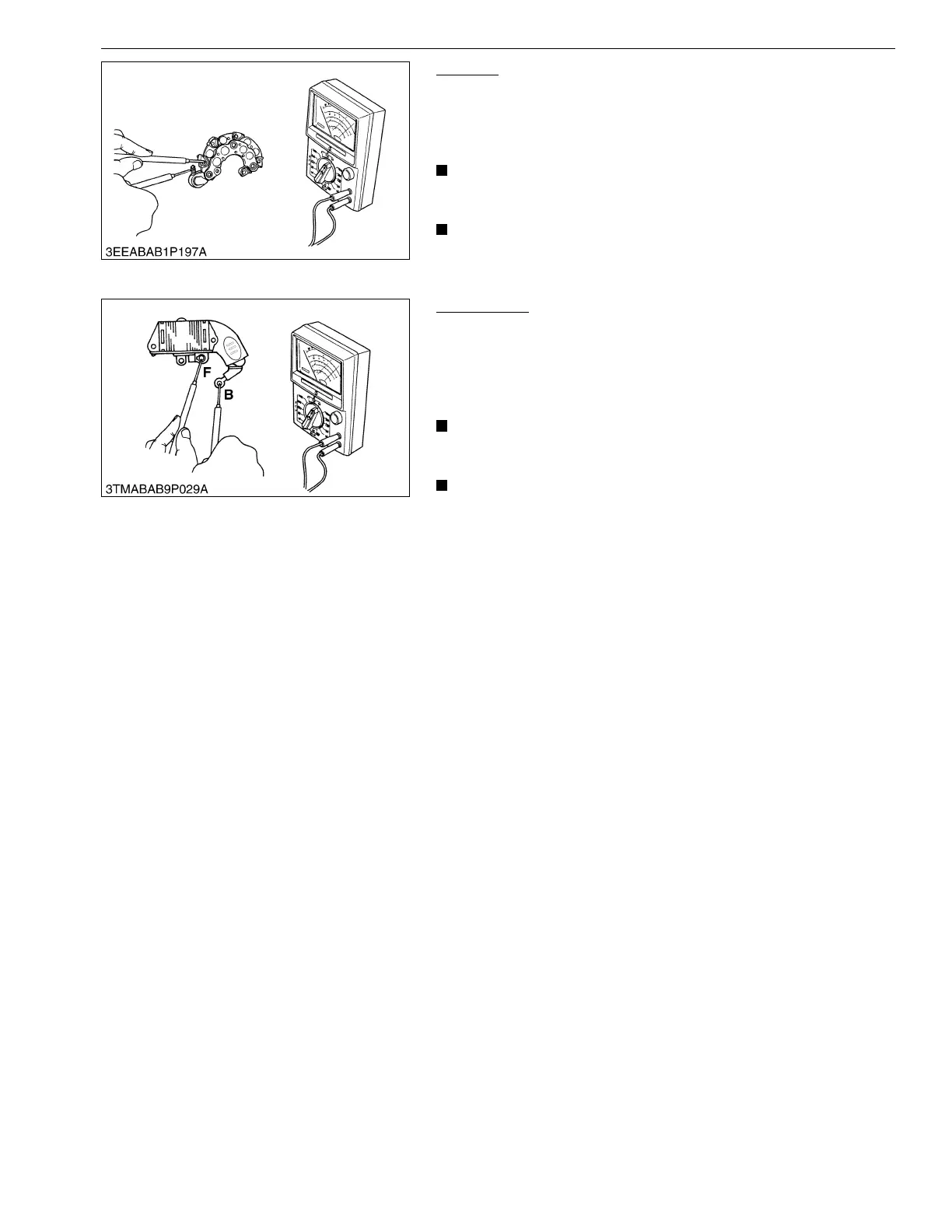

Rectifier
1. Check the continuity across each diode of rectifier with an
analog ohmmeter. Conduct the test in the (R × 1) setting.
2. The rectifier is normal if the diode in the rectifier conducts in one
direction and does not conduct in the reverse direction.
IMPORTANT
• Do not use a 500 V megohmmeter for measuring because it
will destroy the rectifier.
NOTE
• Do not use an auto digital multimeter. Because it's very
hard to check the continuity of rectifier by using it.
9Y1210824ELS0147US0
IC Regulator
1. Check the continuity across the B terminal and the F terminal of
IC regulator with an analog ohmmeter. Conduct the test in the
(R × 1) setting.
2. The IC regulator is normal if the IC regulator conducts in one
direction and does not conduct in the reverse direction.
IMPORTANT
• Do not use a 500 V megohmmeter for measuring because it
will destroy the IC regulator.
NOTE
• Do not use an auto digital multimeter. Because it is very
hard to check the continuity of IC regulator by using it.
9Y1210824ELS0148US0
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
