Kubota WSM L3560 User Manual

GENERAL
L3560, L4060, L4760, L5060, L5460, L6060, WSM
G-45

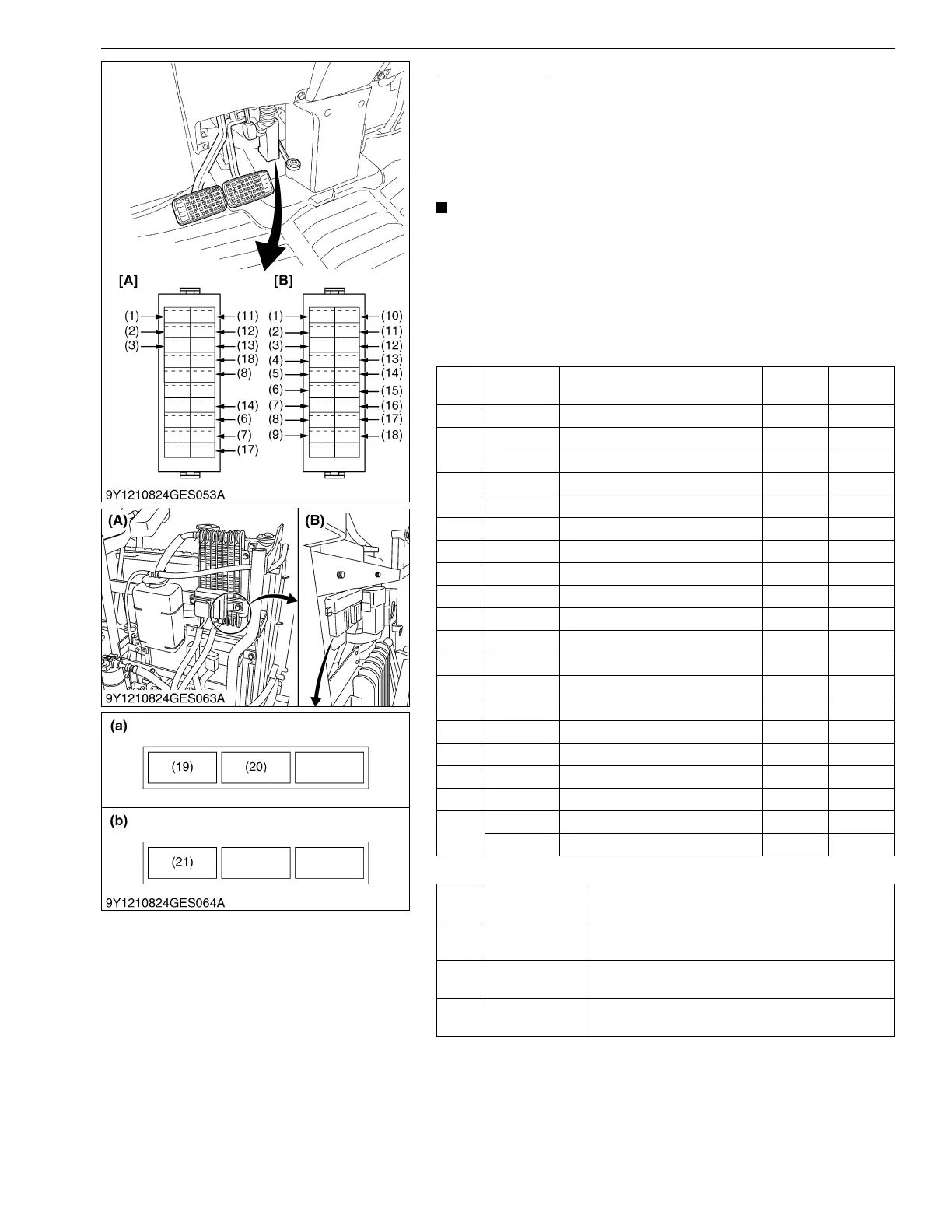

Replacing Fuse
1. The tractor electrical system is protected from potential damage
by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
2. If any of the fuses should blow, replace with a new one of the
same capacity.
IMPORTANT
• Before replacing a blown fuse, determine why the fuse blew
and make any necessary repairs. Failure to follow this
procedure may result in serious damage to the tractor
electrical system. Refer to "1. TROUBLESHOOTING" on
page 9-S1.
If any of them should blow, replace with a new one of the
same capacity.
 Protected Circuit
[CCV Heater Fuse] (If Equipped)
9Y1210824GEG0090US0
Fuse
No.
Capacity
(A)
Protected circuit ROPS CABIN
1 5 Meter (Battery) 
2
15 Hazard  –
20 Hazard – 
3 5 Transmission controller (Battery) 
4 10 Radio (Battery) – 
5 20 Air conditioner blower – 
6 20 Engine ECU (Battery) 
7 30 Starter relay 
8 5 Engine ECU (IG) 
9 20 Cigar lighter – 
10 5 Radio (ACC) – 
11 15 Transmission controller (IG) 
12 10 Meter (IG) 
13 5 Meter switch 
14 30 Head lights 
15 7.5 Air conditioner compressor – 
16 30 Wiper – 
17 15 Flasher – 
18
10 Work light  –
15 Work light – 
Fuse
No.
Capacity (A) Protected circuit
19 20
Heater (Oil Separator, IN 1)
Heater (Oil Separator, IN 2)
20 20
Heater (Oil Separator, OUT 1)
Heater (Oil Separator, OUT 2)
21 20
Heater (Oil Separator, IN)
Heater (Oil Separator, OUT)
[A] ROPS Type
[B] CABIN Type
(A) Front Side
(B) Rear Side
(a) L3560, L4060, L4760
(b) L5060, L5460, L6060
