CABIN
L3560, L4060, L4760, L5060, L5460, L6060, WSM
10-S35

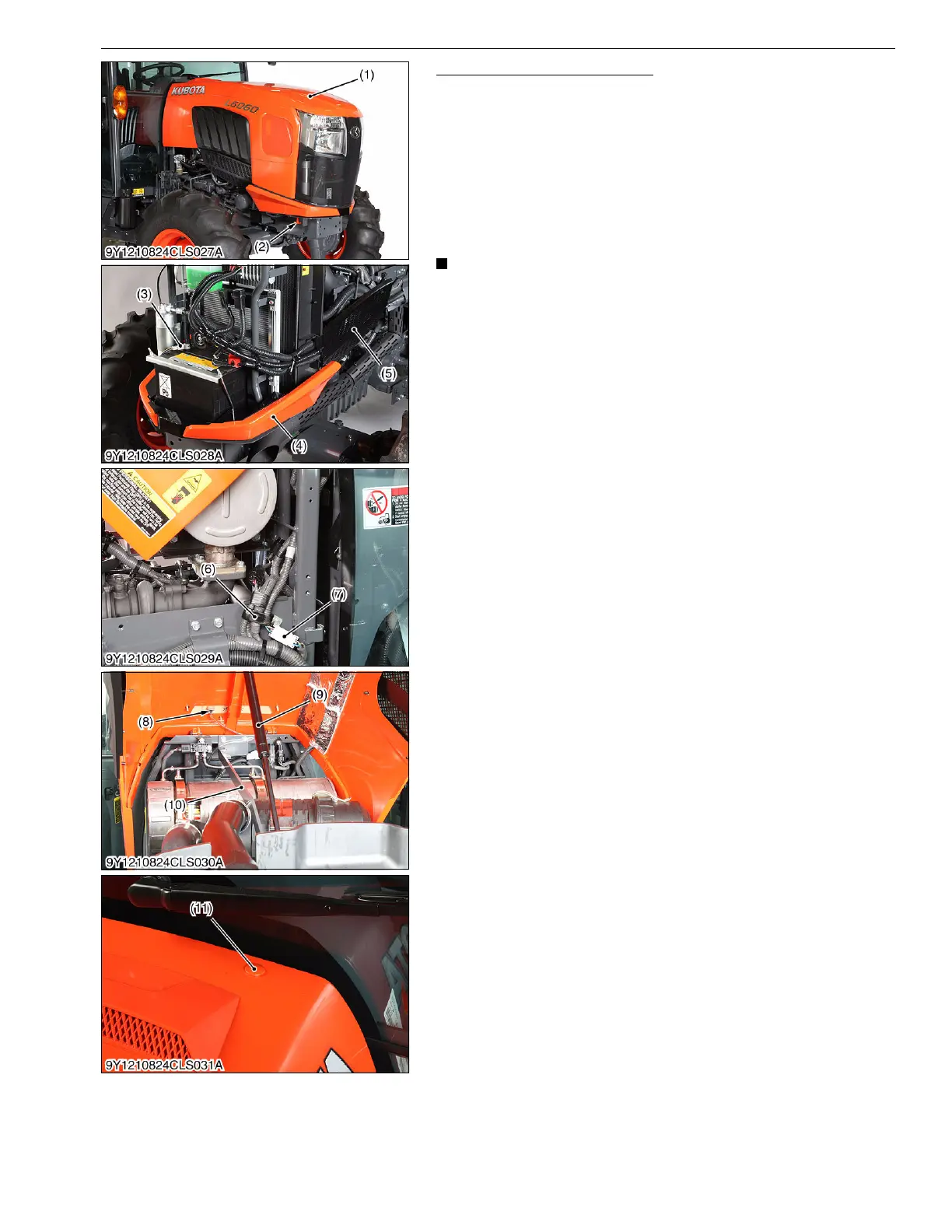

Front Grill, Skirts and Bonnet
1. Pull down the knob (2) and open the bonnet (1).
2. Disconnect the battery negative cable (3).
3. Remove the front grill (4), left and right side skirts (5).
4. Remove the clamp (6) and disconnect the head light connector
(7).
5. Disconnect the window washer hose (8) and remove the
damper (9).
6. Remove the plug (11) and the ß pin inside, then the bonnet.
7. Remove the damper support (10).
NOTE
• When disconnecting the battery cables, disconnect the
negative cable first. When connecting the battery cables,
connect the positive cable first.
9Y1210824CLS0015US0
(1) Bonnet
(2) Knob
(3) Battery Negative Cable
(4) Front Grill
(5) Skirt
(6) Clamp
(7) Head Light Connector
(8) Window Washer Hose
(9) Damper
(10) Damper Support
(11) Plug
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
