GENERAL
L3560, L4060, L4760, L5060, L5460, L6060, WSM
G-68
Pump Adaptor
Application
• Use for examining the main hydraulic pump.
NOTE
• When you use, attach with following parts.
O-ring: 04811-00180
• This adaptor is changed from Adaptor 61 of flowmeter adaptor set (see page G-64).

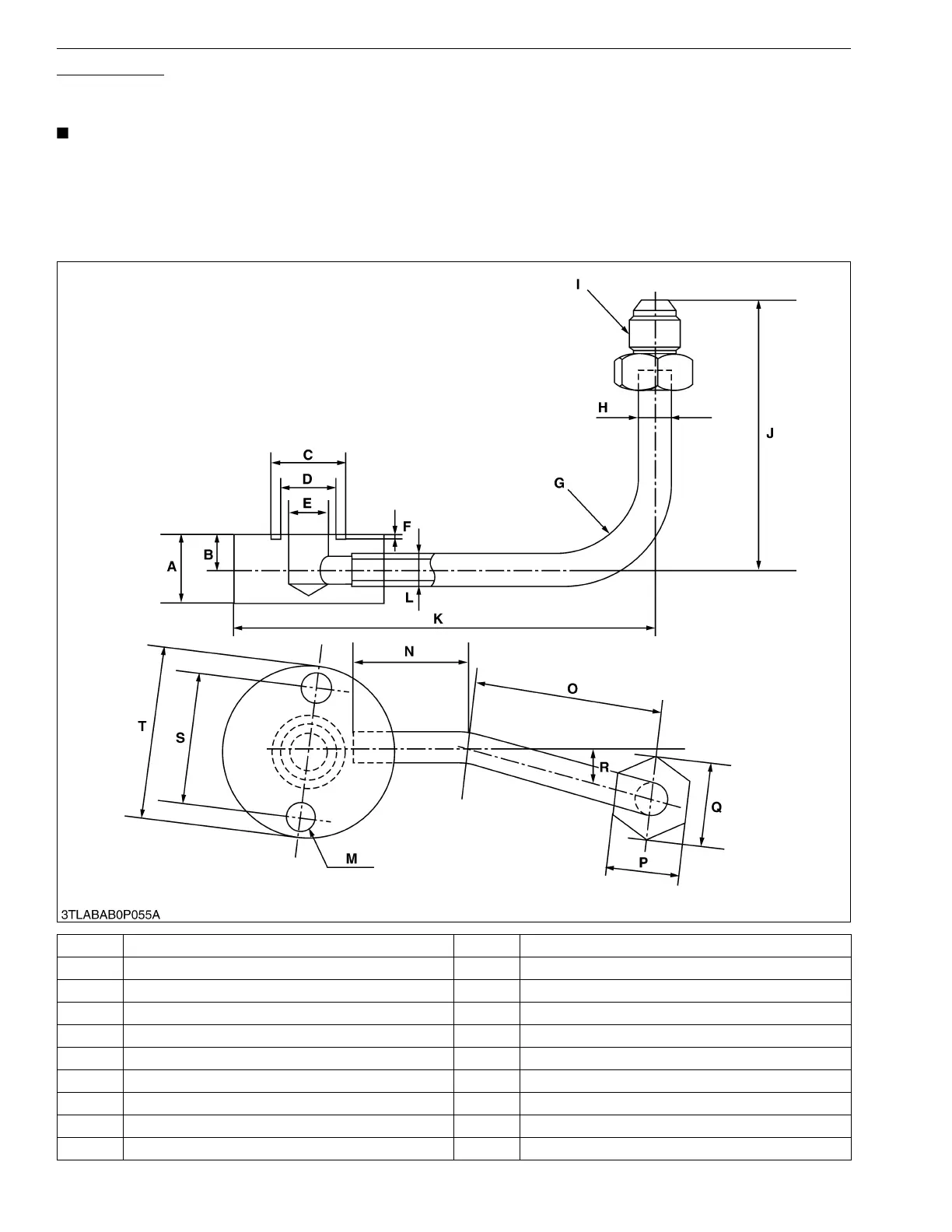

• This special tool is not available, so make it. Refer to the figure.
(Reference)
• From size "A" to size "R" are same size as adaptor 61.
9Y1210824GEG0116US0
A 22 mm (0.872 in.) K 135 mm (5.31 in.)
B 11 mm (0.437 in.) L 7 mm dia. (0.28 in. dia.)
C 24 mm dia. (0.94 in. dia.) M 8.5 mm dia. (0.33 in. dia.)
D 18 mm dia. (0.71 in. dia.) N 37 mm (1.46 in.)
E 12 mm dia. (0.47 in. dia.) O 61.5 mm (2.42 in.)
F 1.7 to 1.9 mm (0.067 to 0.075 in.) P 24 mm (0.94 in.)
G 30 mm Round (1.18 in. Round) Q 27.7 mm (1.09 in.)
H 10 mm dia. (0.39 in. dia.) R 0.244 rad (14 °)
I G 3/8 S 40 mm (1.57 in.)
J 89 mm (3.50 in.) T 60 mm dia. (2.36 in. dia.)
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
