Lexmark W840 Service Manual

Repair information 4-209
4024-XXX
Exit 2 cooling fan removal

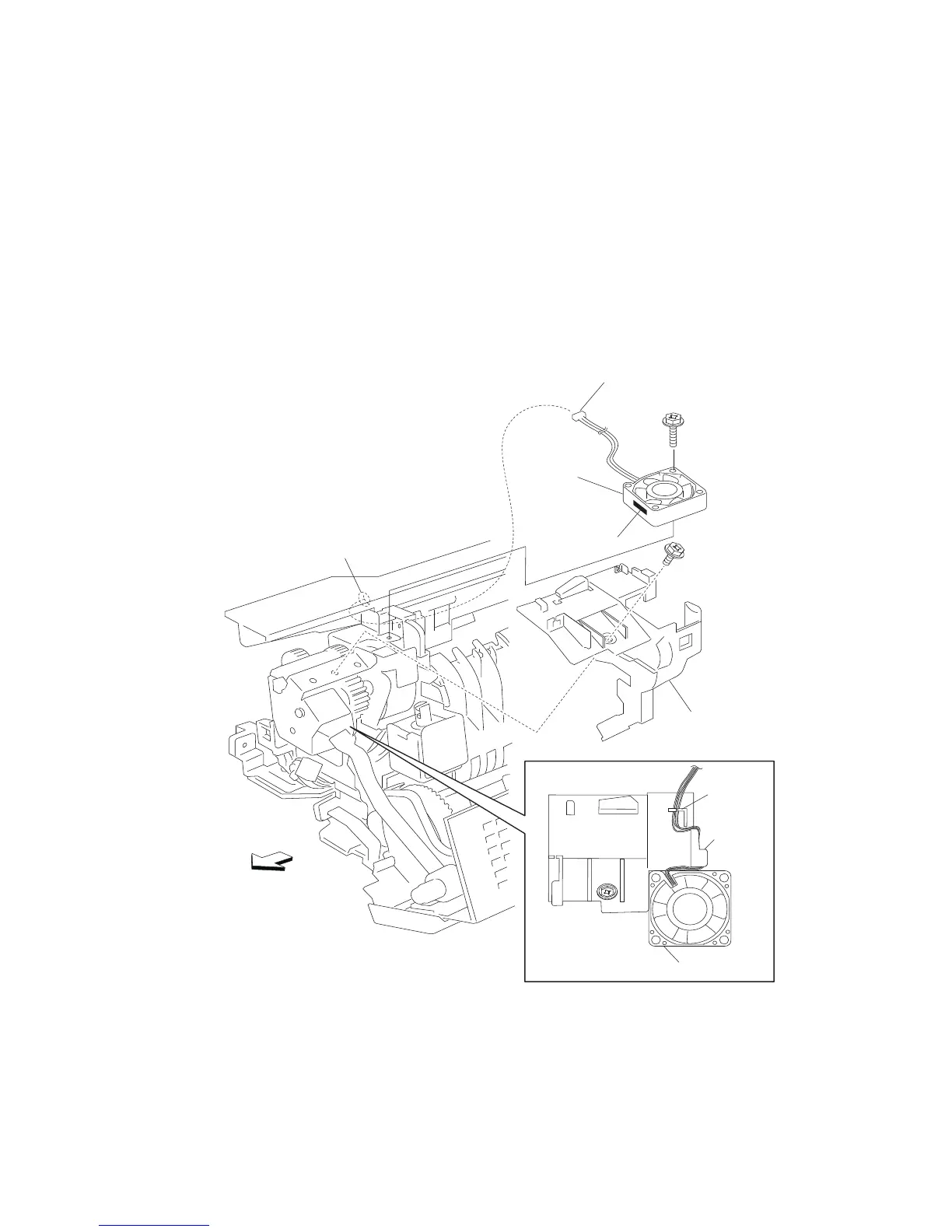

1. Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-192.
2. Open the exit 2 unit assembly.
3. Remove the exit 2 left cover. See “Exit 2 left cover removal” on page 4-197.
4. Remove the exit 2 right cover. See “Exit 2 right cover removal” on page 4-198.
5. Disconnect the connector from the exit 2 cooling fan (A).
6. Remove the harness from the hole in the exit 2 unit assembly.
7. Remove the screw securing the exit 2 cooling fan (A) to the exit 2 unit assembly.
8. Remove the exit 2 cooling fan (A).
Hole
A
Marker
Cover
Rear
Clamp
Clamp
A
Connector
