LS tractor MT5 Series User Manual

3 -57

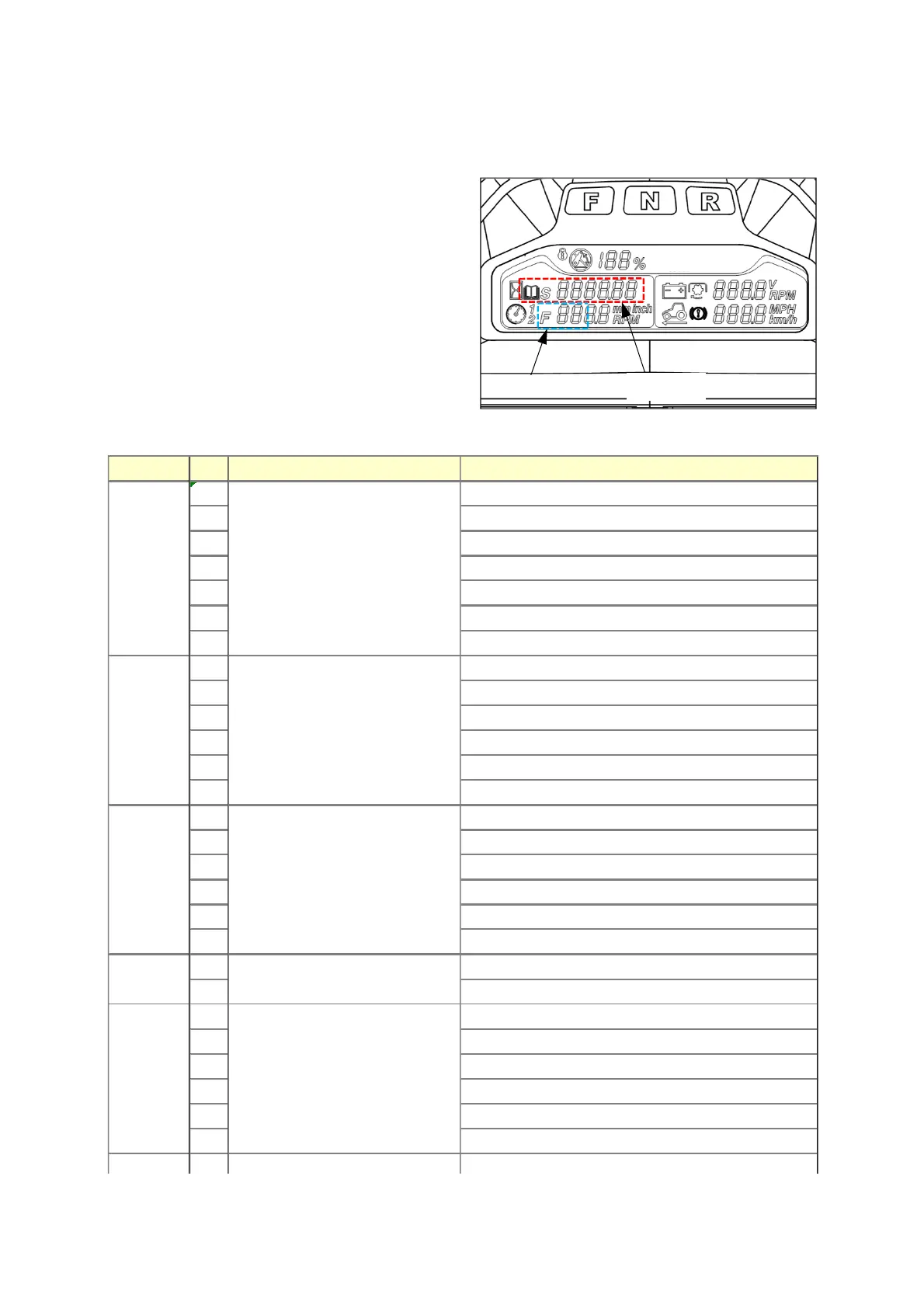

(4) Error Diagnosis Code (EHL)
 If the EHL sensor or valve has failed, the error
code shall be displayed on the Instrument panel
as shown in the figure.
 In case of several errors, the errors shall be
displayed repeatedly every 1 second. In this
case, record all error codes.
 And, contact your authorized local dealer for
check and tell the error code.
SPN FMI Component Description (ENG)
04 Position sensor short to ground
03 Position sensor Short to power source
01 Over the normal operating region (Position sensor)
00 Below the normal operating region (Position sensor)
10 Error for position vaue variation rate.
11 Need for calibration
13 Out of Calibration
04 Draft sensor short to ground
03 Draft sensor short to power source
01 Over the normal operating region (Draft sensor)
00 Below the normal operating regint (Draft sensor)
11 Need for calibration
13 Out of Calibration
04 Depth sensor short to ground
03 Depth sensor short to power source
01 Over the normal operating region (Depth sensor)
00 Below the normal operating regint (Depth sensor)
11 Need for calibration
13 Out of Calibration
04 Slope sensor short to ground
03 Slope sensor short to power
04 Stroke sensor short to ground
03 Stroke sensor short to power source
01 Over the normal operating region (Stroke sensor)
00 Below the normal operating regint (Stroke sensor)
11 Need for calibration
13 Out of Calibration
05 U
p
valve short to
g
round
210300 Depth Sensor
210400 Slope Sensor
210500 Stroke Sensor
210100 Position Sensor
210200 Draft Sensor
SPN code
FMI Code
