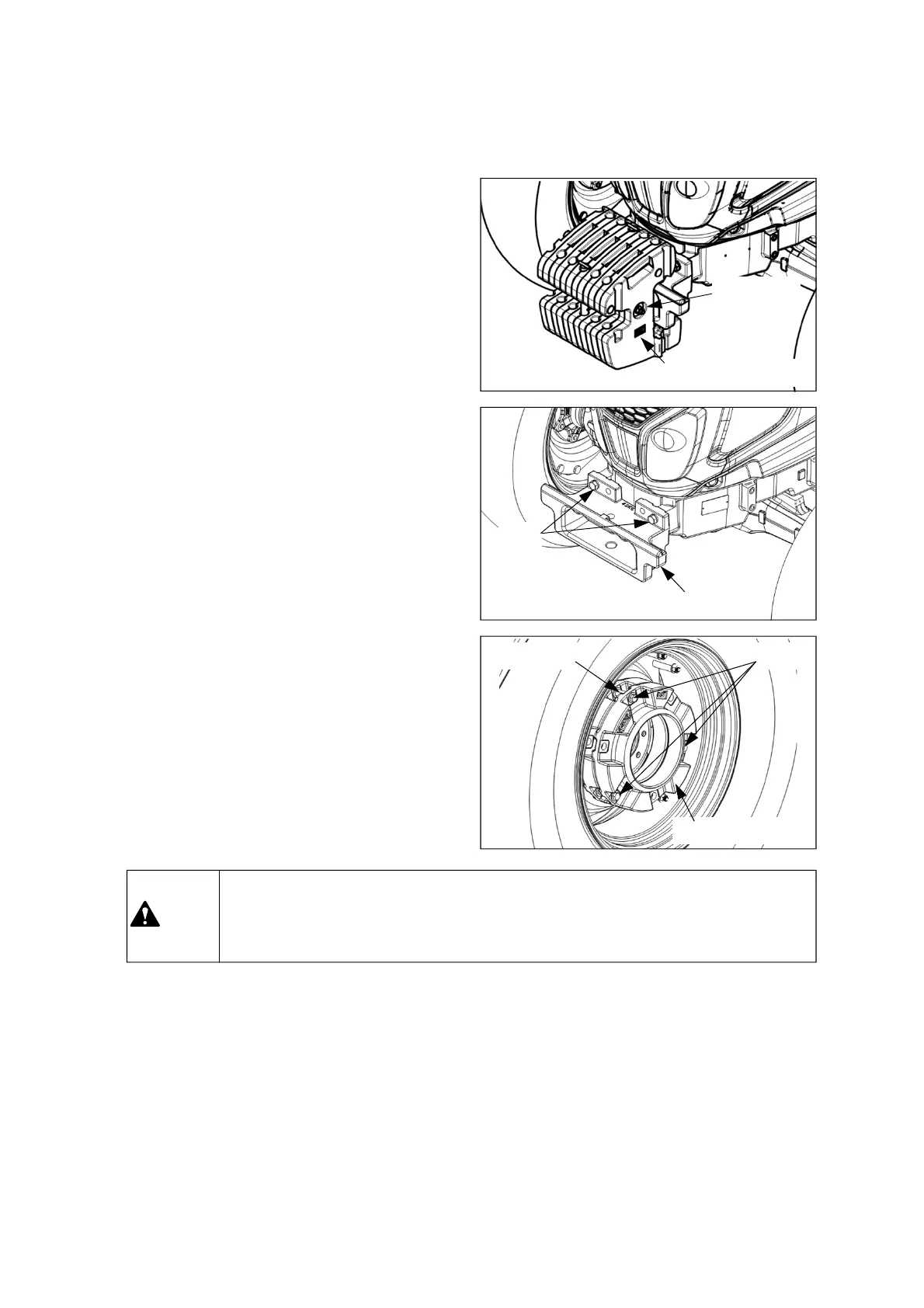

(11) Ballast Weights (optional)
It is used to balance the front/rear weight of the
tractor.
To remove the front ballast weights, unscrew the
locking nut of the front ballast weights and
disassemble the weight plate one by one.
Front ballast weight (kg) :
40kg x 4ea = 160kg or 40kg x 6ea = 240kg
To remove the bumper, connect the bumper to
hoist and unscrew the bolts in the right figure.
Bumper weight (kg ) : 42kg
Front ballast weights
Bumper
Bolts
Locking nut
Rear ballast weight
Connectors Bolts
To remove the rear ballast weights, connect the
bumper to hoist, and unscrew the bolts in the
right figure and disassemble the weight plate
one by one if necessary.
Rear weight (kg) : 45kg x 2ea = 90kg or
45kg x 4ea = 180kg
For additional ballast weights and adjustment
methods, contact your authorized local dealer.
▶The ballast weights are very heavy. PLEASE BE CAREFUL.
▶When removing/attaching the ballast weights, proceed with extreme caution, use a
suitable hoist and specific equipment to move the heavy parts.
Warning
To Next Page
