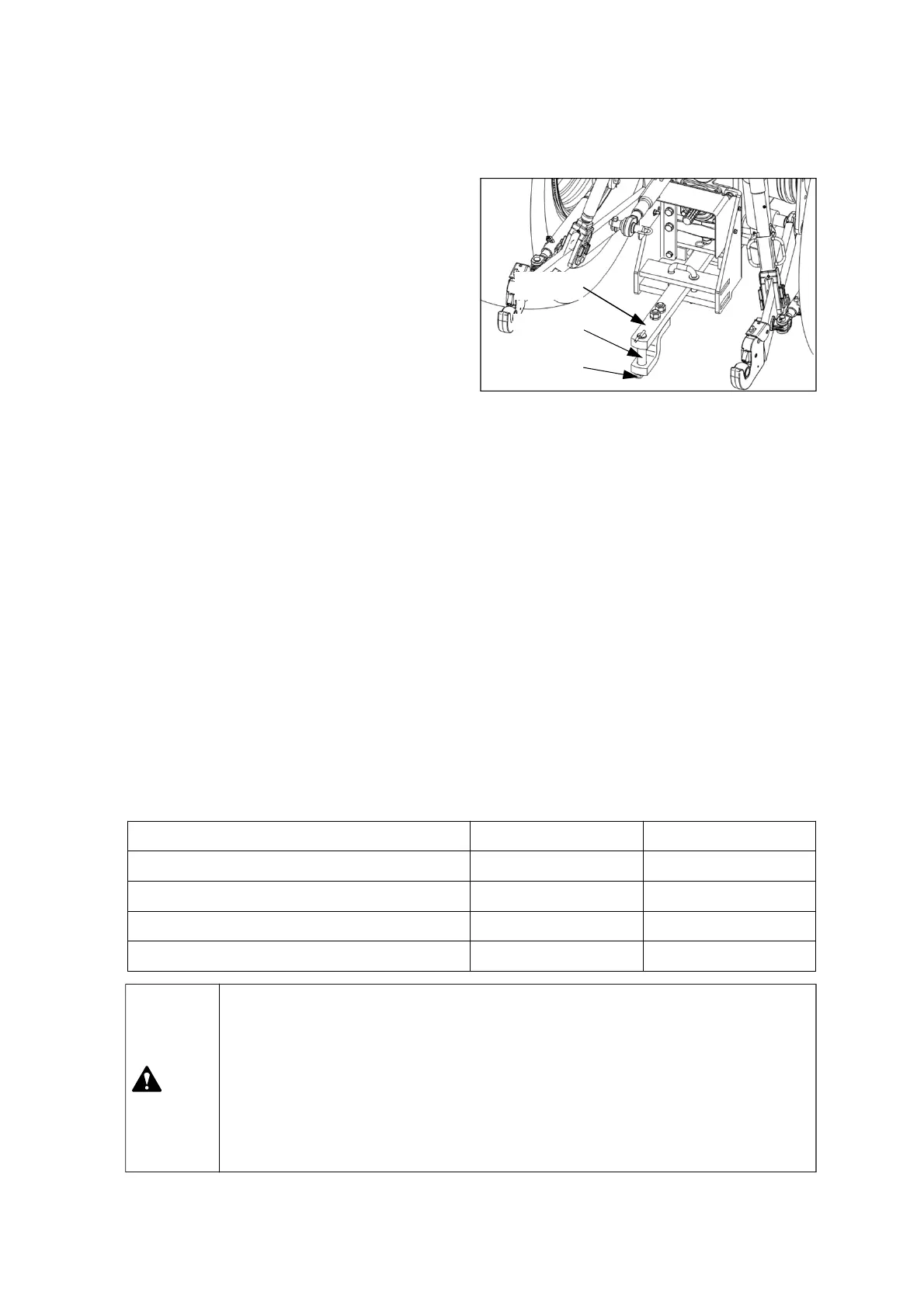

(3) Hitch and Drawbar (optional)
When attaching towing equipments, use the
hitch or drawbar. DO NOT use the 3-point
linkage or other parts. If so, the tractor could
turnover.
Insert the hitch pin and snap pin correctly after
attaching/detaching equipment.
DO NOT exceed the maximum permissible
vertical and horizontal load as below.
① Drawbar (with clevis)
It is used to tow the 2-axle equipment.
It is available to adjust the position of the draw
bar after removing lock-pin in the right figure.
After adjusting, assemble the pins firmly.
Type & EC component type-approval mark :
TU-DBT / TBD
Vertical load : 650kg (1433 lb)
Horizontal load : 6000kg (13228 lb)
Snap pin
Drawbar
Hitch pin
▶ Use always the drawbar or hitch for pulling work. DO NOT use the 3-point linkage,
rear axle or other parts. If so, the tractor could be overturned.
▶ When locking the hitch or drawbar with pin after aligning to the towing equipment,
apply the parking brake and stop the engine.
▶ Before transporting equipment on public roads, make sure you comply with your
local traffic regulations.
Caution
③Technically permissible towable mass(es)
Hitch Drawbar w/clevis
Unbraked towable mass N/A 3000 kg (6614 lb)
Inertia-braked towable mass N/A 6000 kg (13228 lb)
Hydraulic braked towable mass N/A N/A
Pneumatic braked towable mass N/A N/A
