(5) Joystick lever (optional)
Remote joystick lever helps to operate front
loader comfortably.

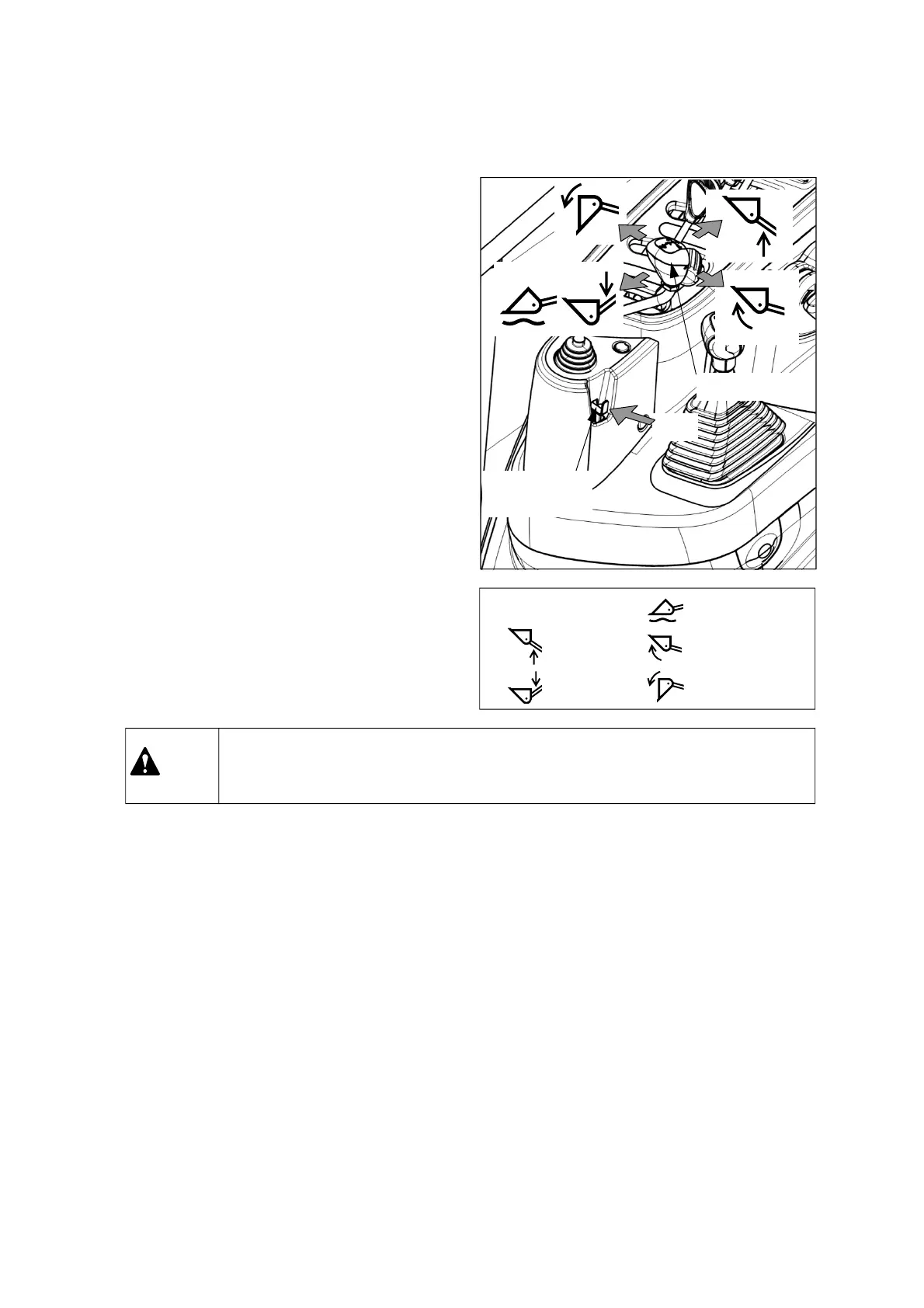

Joystick can be operated at 4 directions as
shown in the right figure.
If you move joystick diagonally, loader and
bucket shall be operated at the same time. Then,
small loads move first.
When you want to float bucket, lower the loader
and push forward the lever at floating position.
After finishing work, pull the lever and place it in
neutral position.
Loader up
Loader down
Bucket up
Bucket dump
Bucket floating
<Meaning of symbols>
Locking lever
(safety device)
Joystick lever
Locking lever shown in the right figure is used to
lock the joystick lever.
- Pull from the joystick : Unlock
- Push to the joystick : Lock
For further information, See chapter 4-4 in this
manual.
▶To prevent accidents, push and lock the locking lever when you do not use joystick
lever.
Warning
Lock
