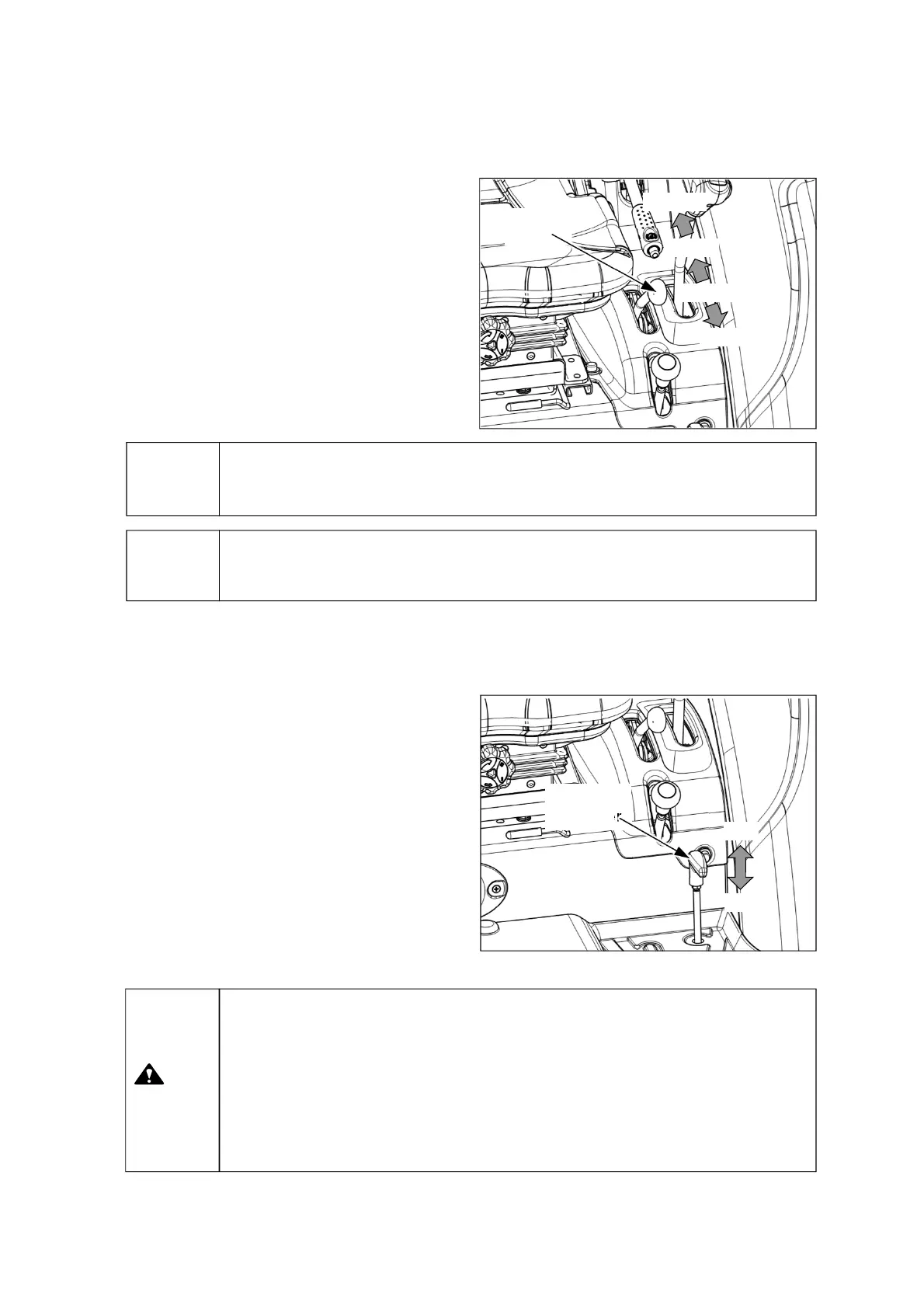

LS tractor XR4140 User Manual

3 -41
Four wheel
drive lever
2WD
4WD
(10) Four wheel drive lever (4WD)
 This lever is used to engage/disengage the four
wheel drive (4WD). Push it downward for
engaging the 4WD.
 Before operating the 4WD lever, press down the
clutch pedal, brake pedals, and stop the tractor
completely.
 4WD is very effective in the following cases.
- When increasing the towing power for heavy
work.
- In case of working in sandy soil.
- To prevent tractor from spinning in wet land.
▶ When driving on public road, disengage the 4WD. If not, it may cause damage of
transmission drive line and serious accident. After working in the field, select the
2WD.
▶ While driving at high speed with the 4WD is engaged, sharp steering may cause
an accident.
▶ Only operate four wheel drive lever by hand. If stepping on it , it may cause a
failure.
Caution
Notice
▶If the PTO gear lever is not engaged smoothly, shift the lever again after lifting up
the implement from the ground to align the drive shaft.
(9) PTO gear lever (if fitted)
 540 / 750 / 1000 rev/min and neutral position is
available.
 Before operating the PTO gear lever, depress
the clutch pedal and put PTO switch to OFF
position, and stop the PTO shaft completely.
 For further information about the PTO shaft, see
chapter 4-5-(2) in this manual.
PTO gear
lever
1000rpm
750rpm
540rpm
Neutral
Notice
▶ Operate the PTO gear lever by correct “I” pattern. If operated diagonally, it may
cause a failure.
