4 -20
1. Lift rod (LH)
2. Stabilizer
3. Lower link
4. Lift rod (RH)
5. Upper link
6. Lift rod pin
7. Upper link pin
①
④
③
⑤
②
⑥
⑦
Warning
▶Before attaching/detaching implement, place PTO switch in OFF position and PTO
gear lever (if fitted) in neutral position, and apply parking brake.
▶When attaching/detaching implement, make sure to assemble and tighten the
connecting parts correctly.
▶If the tractor is used to tow heavy loads, always use the approved drawbar or hitch
to avoid injury. Never connect to lower link or upper link of 3-point linkage. If not, it
may cause tipping or turnover.
▶DO NOT connect implements that require larger power than can be generated by
your tractor.
▶Never stand between implement and tractor when connecting implement.
▶DO NOT change the setting pressure of the relief valve arbitrarily to increase the lift
capacity of the 3-point linkage. It can cause fatal damage to the hydraulic system.
When attaching a rear implement, comply with the followings.
1. Set the rear implement upright on a level surface and approach the implement in reverse.
2. Stop the tractor on a adaptable attaching position and apply the parking brake.
3. Connect lower link(3) to the implement and insert the lock pin firmly. (left, right)
4. Connect upper link(5) to the implement and insert the lock pin firmly. Wide adjustable range of the
upper link provides you easier attachment.
5. Fix the implement firmly with stabilizer(2).(left, right).

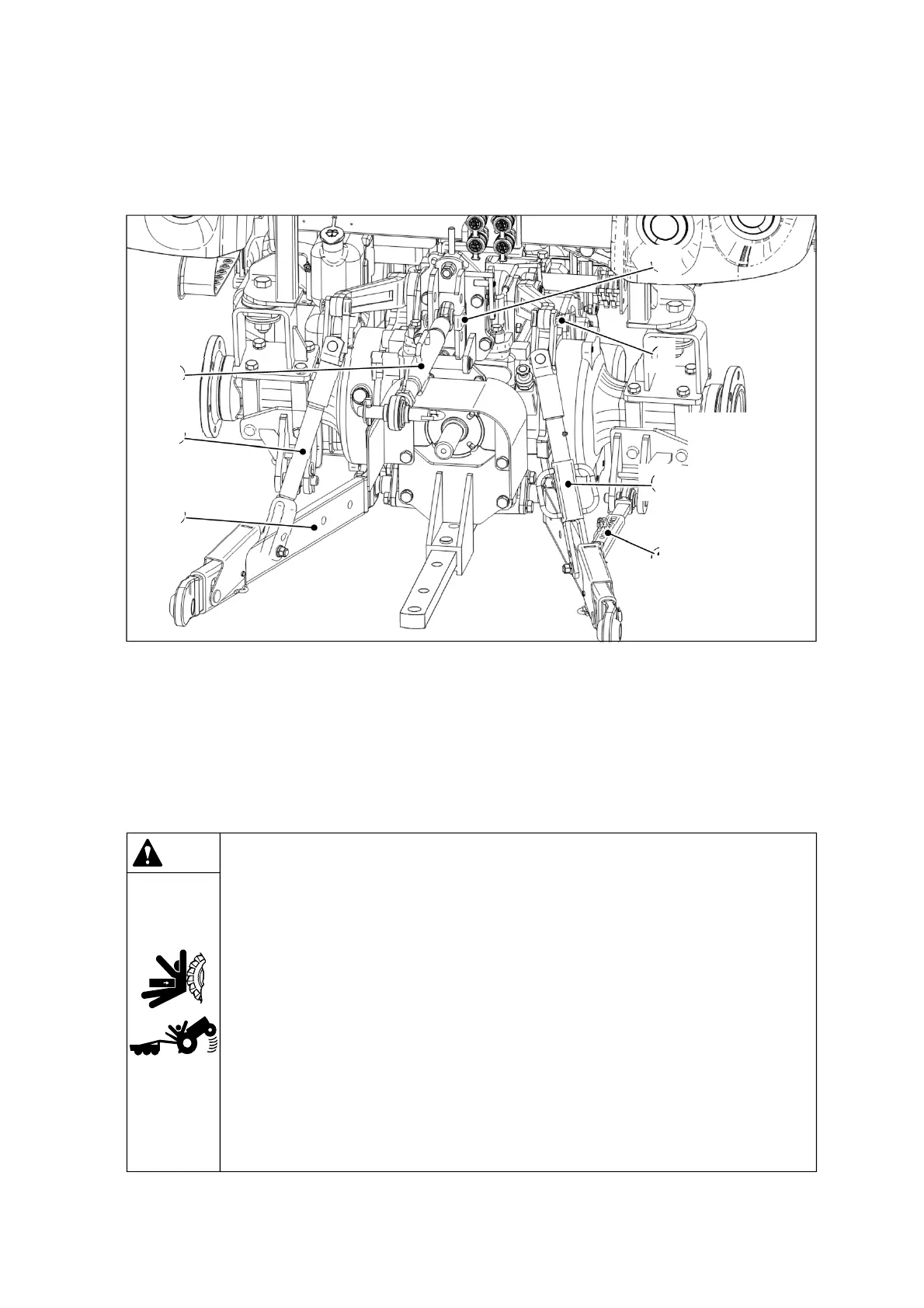

(1) Rear 3-point linkage
4-5. Field Operations
