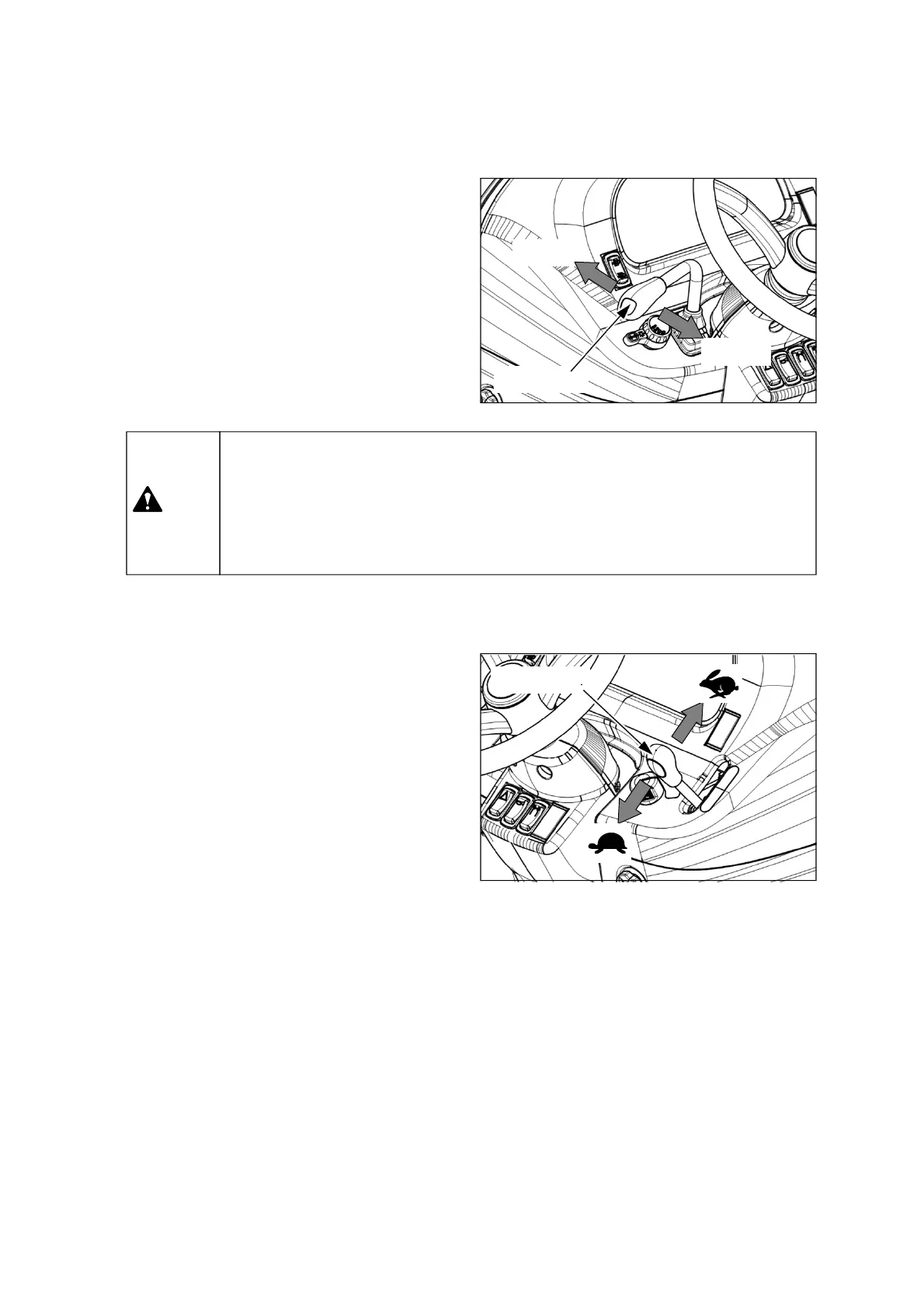

(11) Shuttle lever (Mechanical
synchro-shuttle)
This is used to select the Forward or Reverse.
Forward : Push the lever forward.
Reverse : Pull the lever backward.
Before reversing the tractor, lower the engine
speed and check the safety conditions behind
the tractor.
Before starting engine, be sure to place the
shuttle lever in neutral position.
(12) Throttle lever
This lever is used to control engine speed.
- Pull it backward for Low speed,
- Push it forward for High speed.
For mechanical models, this throttle lever must
be used only for work field. When driving on the
road, place the throttle lever to the low speed
position, and use the throttle pedal.
For HST models, An electronic control sensor is
attached on this lever. If there is an error related
to this sensor while the engine is running, the
engine speed will be fixed to 1500 rev/min, so
called LIMP HOME mode. Contact your
authorized local dealer.
▶ The synchro-shuttle shift lever allows any forward range or reverse to be shifted
while the tractor is moving slowly. However, the clutch must be disengaged and
engaged by means of clutch pedal. Make sure to depress clutch pedal fully and
release it gradually to take up load smoothly, but sudden gear shifting may cause
transmission damage. It is recommended to stop the tractor before operating the
shuttle lever.
Caution
Forward
Reverse
Shuttle lever
Throttle lever
