5 -27

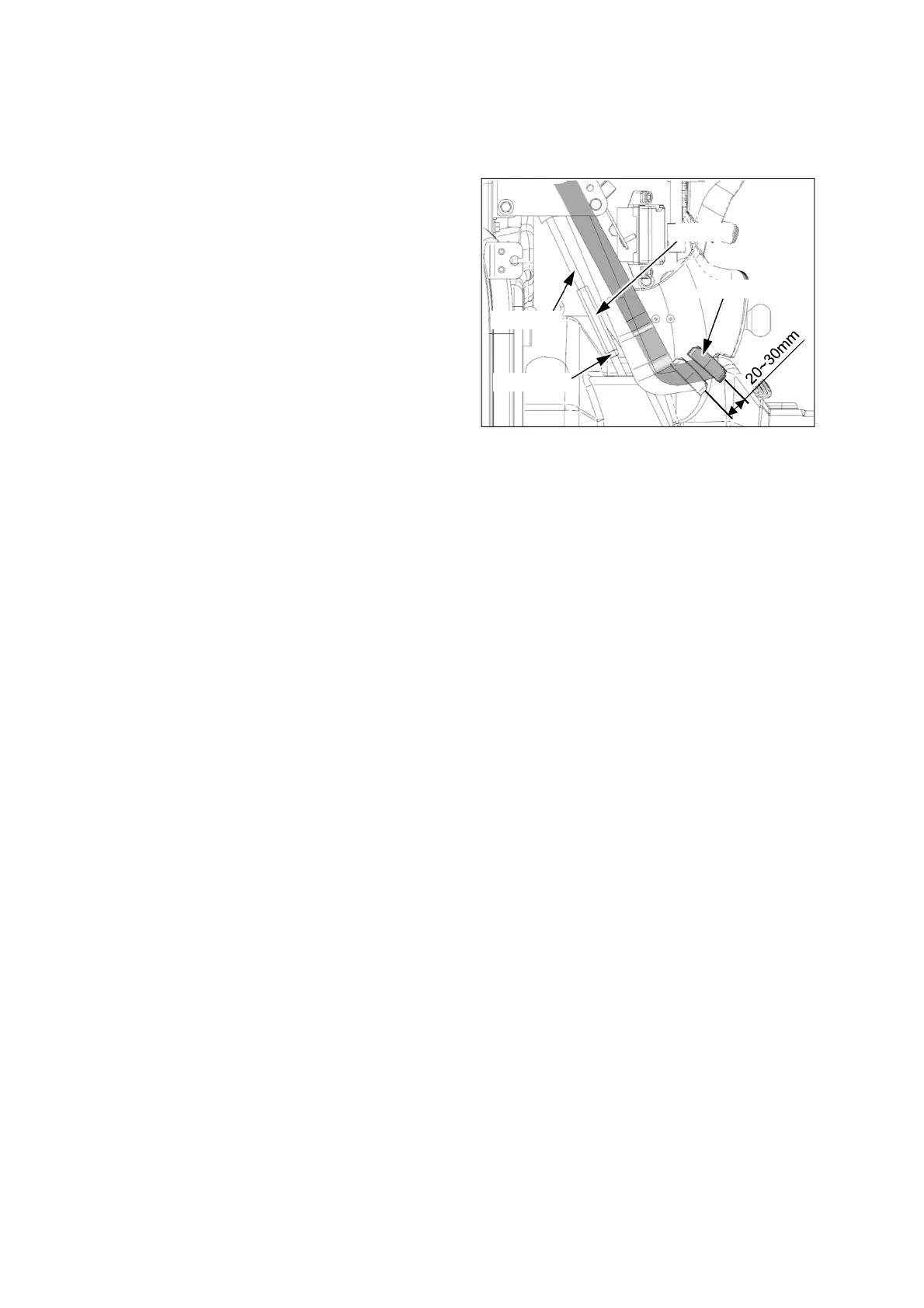

Normal distance : 20~30mm (0.8~1.2 in.)
If the distance of the pedal play is outside the
proper range, adjust it as below.
1. Loosen locking nut and turn adjuster to the
left/right direction.
2. If the adjuster is tightened, the pedal play shall
be decreased, and if loosened, it shall be
increased.
3. After adjusting the pedal play, tighten the locking
nut.
4. Check if the clutch is disengaged completely.
Clutch pedal
Locking nut
Adjuster
Clutch rod
(10) Adjustment of Clutch pedal play (Mechanical type)
