LS tractor XR4140 User Manual

5 -23

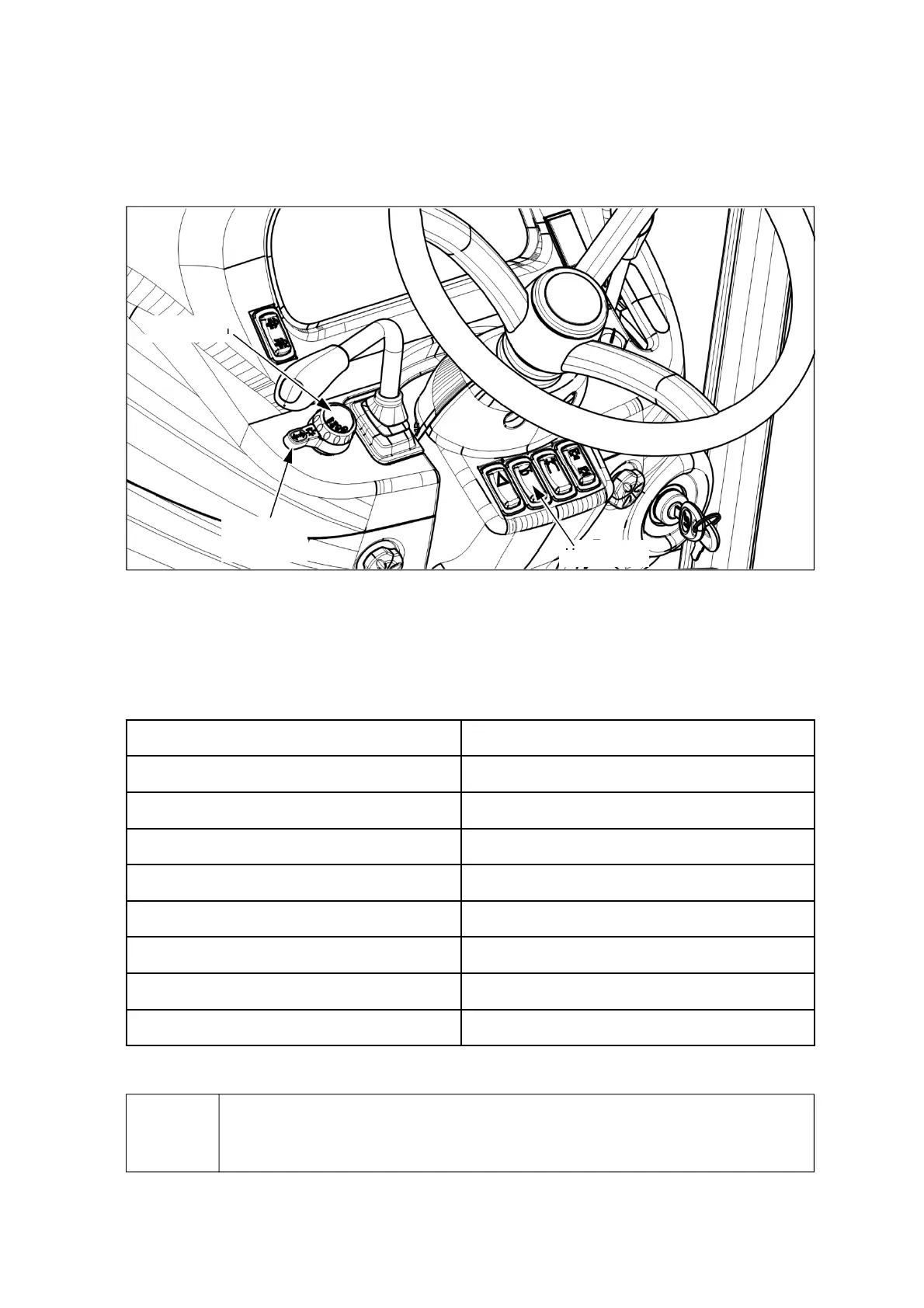

Horn switch
Turn signal
light switch
Light switch
(4) Turn signal lights, Lights and Horn
 Check the operational status of the headlights, turn signal lights, horn and other illuminating lights.
▶Use the bulb of rated capacity. If using an improper bulb arbitrary, it may cause a
failure of the electric system.
Notice
Illuminating Lights Light bulb specification
Head lights (Low beam / High beam) 12V 55W / 60W
Turn signal lights (front) 12V 21W
Side lights (front) 12V 5W(Cabin)
Turn signal lights (rear) 12V 21W
Brake lights / Tail lights (rear) 12V 21W / 5W
Work lights 12V 27W(Grille) / 37.5W(Cabin) / 27W(Roll-bar)
Indoor light 12V 10W(Cabin only)
Instrument panel & indicators LED
 If any of these lights are not turned on when operating the switch, check the problem as followings.
1. Check the related fuse in the fuse box. See chapter 5-14-(2), “Fuse & Main fuse” in this manual.
2. Check the light bulb. If damaged, replace it with a rated new one. See below table and refer to the
chapter 5-14-(5), 5-14-(6) in this manual.
