LS tractor XR4140 User Manual

4 -27
Hitch
Snap pin
Hitch pin

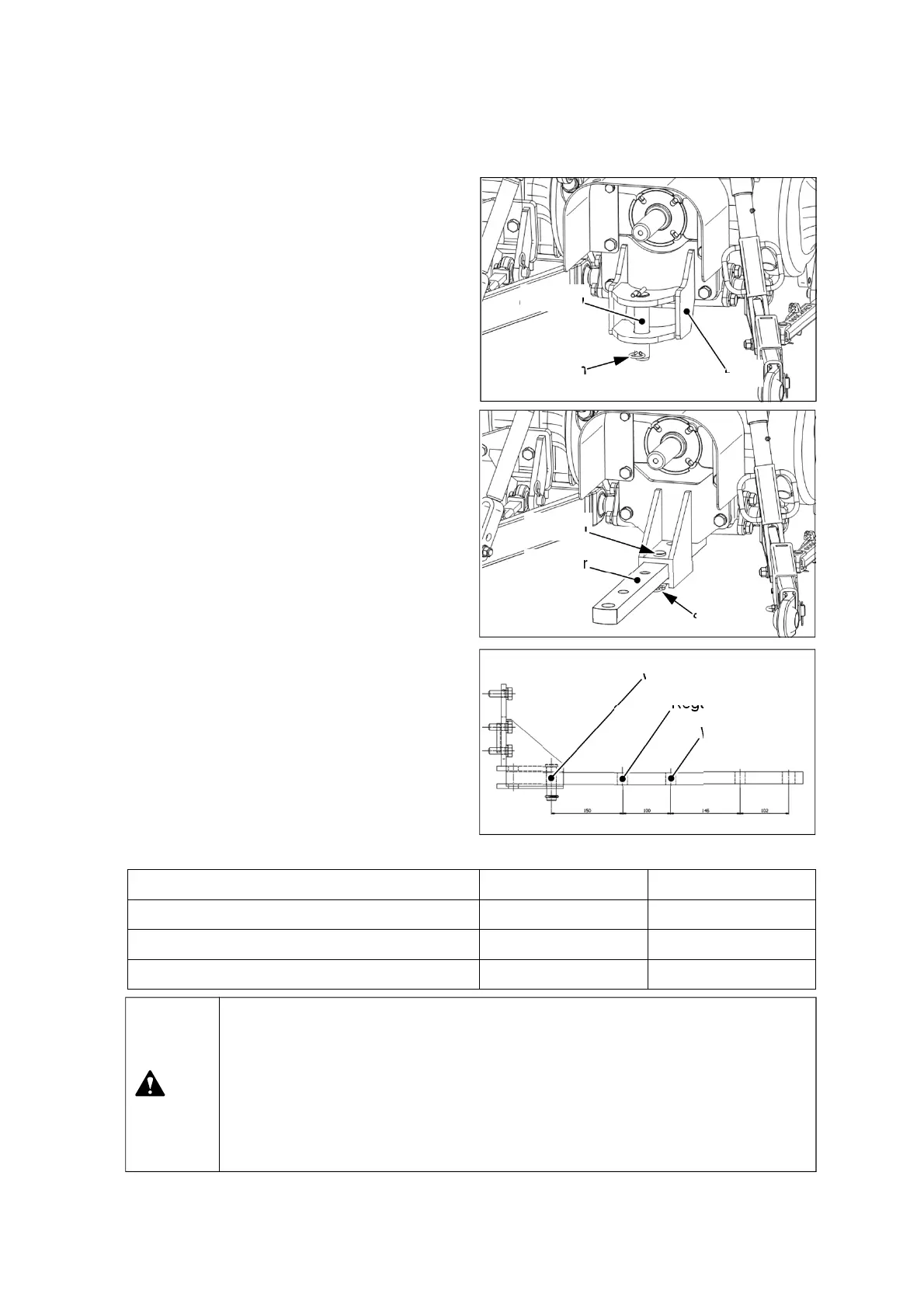

(3) Hitch and Drawbar (optional)
 When attaching towed equipment, use the hitch
or drawbar. DO NOT use the 3-point linkage or
other parts. If so, the tractor could turnover.
 When attaching/detaching towed equipment, be
sure to check the pins locked in place correctly.
 DO NOT exceed the maximum permissible
vertical and horizontal load of the coupling.
① Hitch
 Vertical load : 900kg (1984 lb)
 Horizontal load : 3600kg (7937 lb)
② Drawbar (w/clevis)
 It is used to tow the equipment having 2 axles.
 It is available to adjust the length of the drawbar
after removing snap pin and lock-pin in the right
figure. After adjusting, assemble the pins firmly.
 Vertical load : 350kg (when pulled) (772 lb)
450kg (when pushed) (992 lb)
 Horizontal load : 2800kg (6173 lb)
▶ Use always the drawbar or hitch for pulling work. DO NOT use the 3-point linkage,
rear axle or other parts. If so, the tractor could be overturned.
▶ When attaching/detaching towed equipment, apply the parking brake and stop the
engine before applying the locking pins manually.
▶ Before transporting equipment on public roads, make sure you comply with your
local traffic regulation.
Caution
Hitch Drawbar
Unbraked towable mass N/A N/A
Inertia-braked towable mass 3600kg (7937 lb) 2800kg (6173 lb)
Hydraulic & Pneumatic braked towable mass N/A N/A
③ Technically permissible maximum
towable mass(es)
 The maximum permissible towable mass is
depending on the brake system type on the
towed equipment as below. Check the brake
system of your towed equipment.
Snap pin
Drawbar
Lock-pin
When pulled
Regular position
When pushed
