LS tractor XR4140 User Manual

4 -30
(6) Adjusting Wheel tracks and
tire replacement
 If the front wheel track is adjusted, check the
clearances between tires and tractor body case
by case. If necessary, the steering angle must
be adjusted.
(refer to the chapter 4-5-(8) “Adjusting steering
angle” in this manual.)

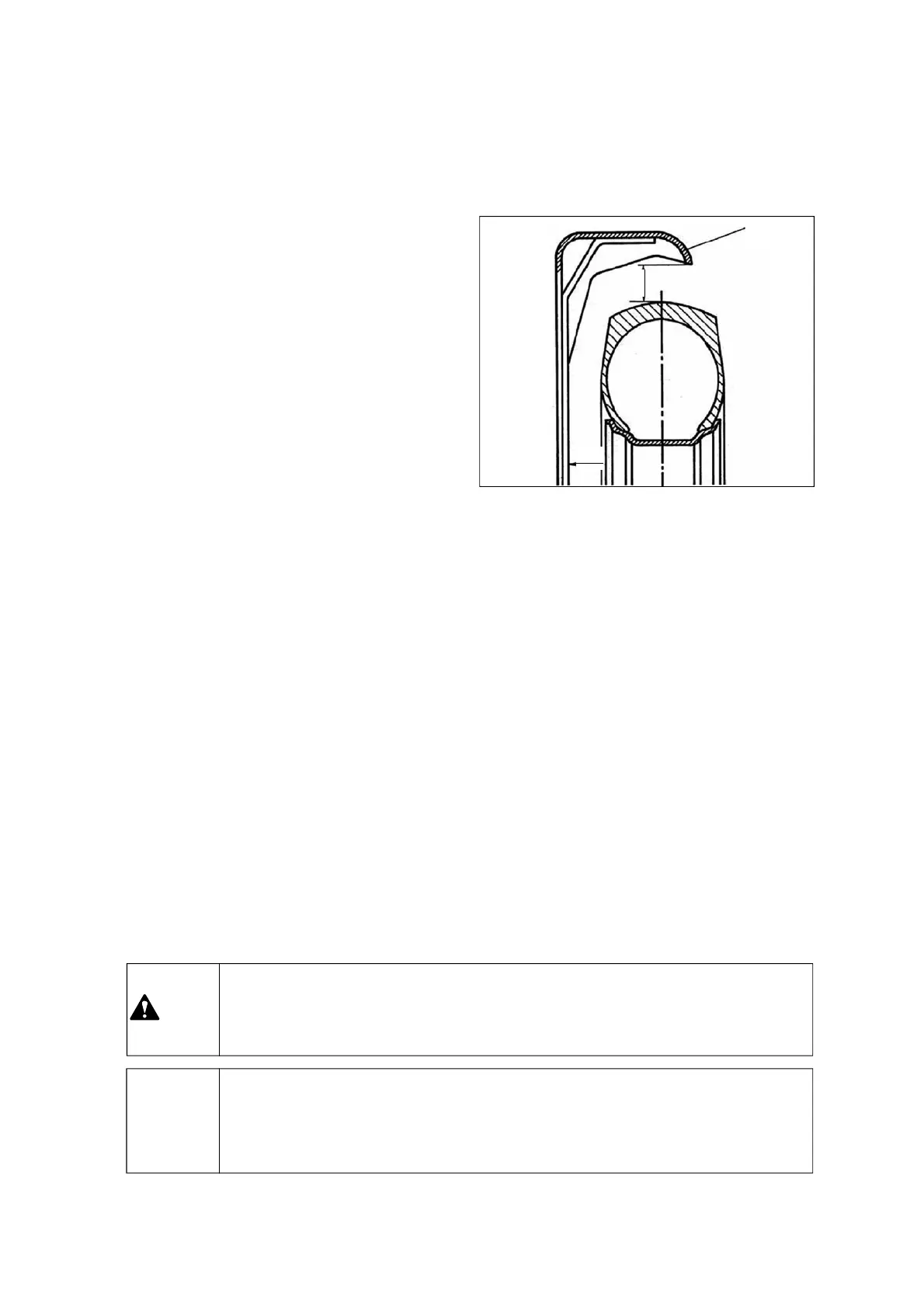

 When adjusting rear wheel track, check the
radial and lateral clearance between rear tire
and tractor chassis as below.
- A : 40mm (1.6 in) (Minimum)
- B : 60mm (2.4 in) (Minimum)
 Depending on rim or disk type, the front and rear
wheel tracks may vary. For the details, contact
your authorized local dealer.
① Front wheel track
- 9.5-16 with rim & disk (W8x16) – Not available
- Standard track: 1269mm(50.0in.)
② Rear wheel track
- 13.6-24 with rim & disk (W10x24) – Not available
- Standard track: 1266mm(49.8in.)
▶ When adjusting the wheel track, pay attention to the direction of tire lugs. If it
shows “/\” shape when looked behind, it is correct.
▶ Actual settings may vary depending on the brand of the rim and type of tire.
Notice
“A”
“B”
FENDER
▶The tractor wheels are very heavy, PLEASE BE CAREFUL.
▶When removing the wheels, proceed with extreme caution, use a suitable hoist and
specific equipment to move the heavy parts.
Warning
