(10) PTO mode switch (optional)
It is used to select “AUTO” or “MANUAL” mode
related to the PTO operation.
When the PTO mode switch is placed on;
- MANUAL: The PTO shaft will rotate regardless
of the clutch pedal.
- AUTO: If pressing the clutch pedal, the PTO
shaft will be stopped.

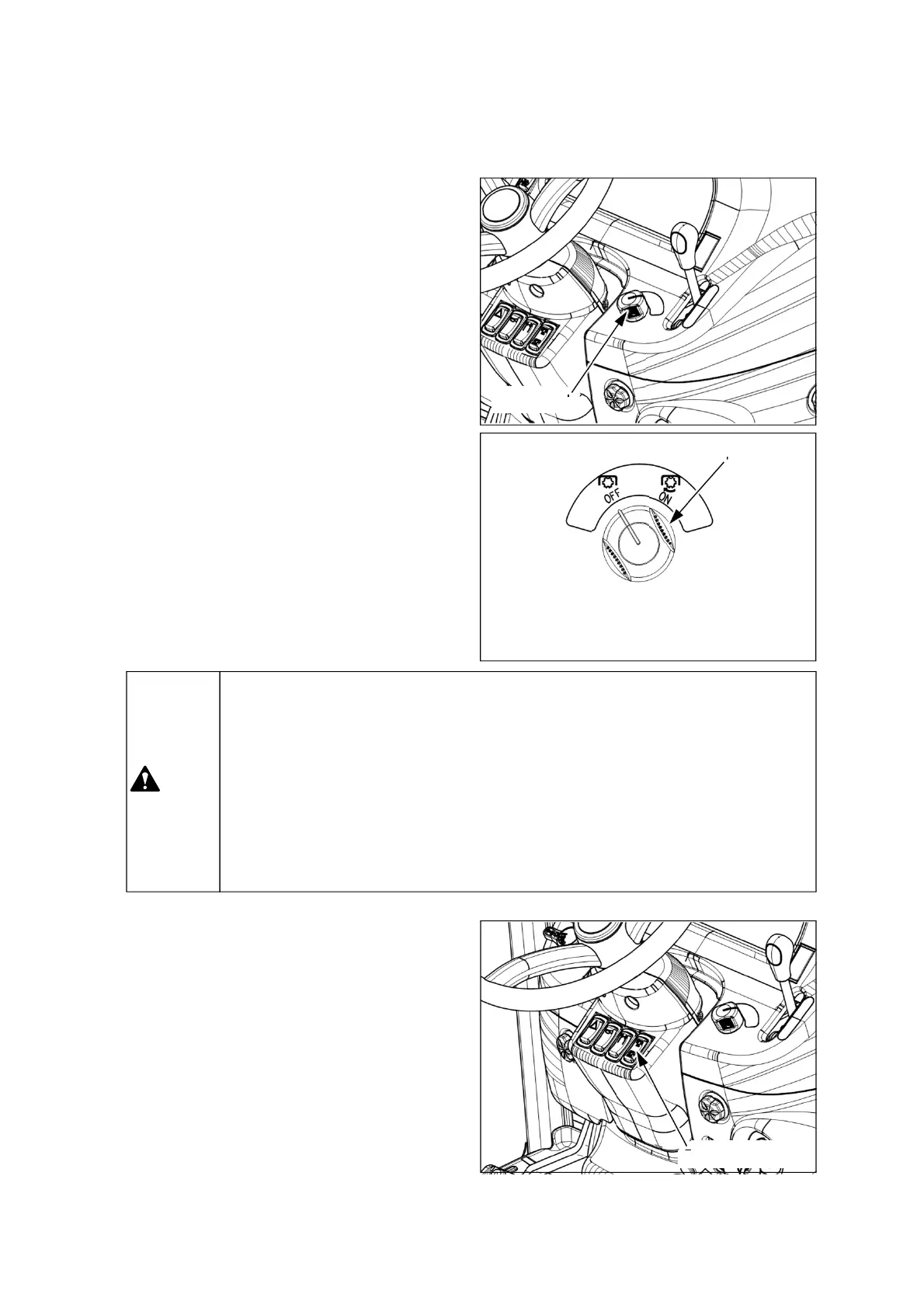

PTO switch
PTO mode switch
(9) PTO switch
The engine starts only when the PTO switch is
placed in “OFF” position for safety.
After starting the engine, you must comply with
the following instructions.
1. Check the safety conditions around the
implement.
2. Place the PTO gear lever(if fitted) to the desired
position.
3. Press the PTO mode switch (if fitted) to
“MANUAL” or “AUTO” position. Refer to the
following chapter.
4. Turn the PTO switch to “ON” position to operate
the PTO shaft. When the PTO shaft begins to
rotate, the PTO operation indicator on the
instrument panel will be turned on.
5. If you want to stop the PTO shaft temporarily,
push the PTO switch to “OFF” position.
▶ Before attaching, detaching or checking the PTO driven equipment, always place
the PTO switch in “OFF” position, and PTO gear lever in neutral position.
▶ If the PTO mode switch is placed in MANUAL position, the PTO shaft rotates
always regardless of the clutch pedal or position of the implement. Pay attention to
the surroundings to prevent an accident.
▶ Do not engage the PTO clutch at high engine speed. Sudden engagement can
cause damage to the implement and PTO clutch. Engage the PTO at low idle rpm,
and then raise the engine speed up.
Warning
ON : PUSH AND TURN
OFF : PUSH
PTO switch
To Next Page
