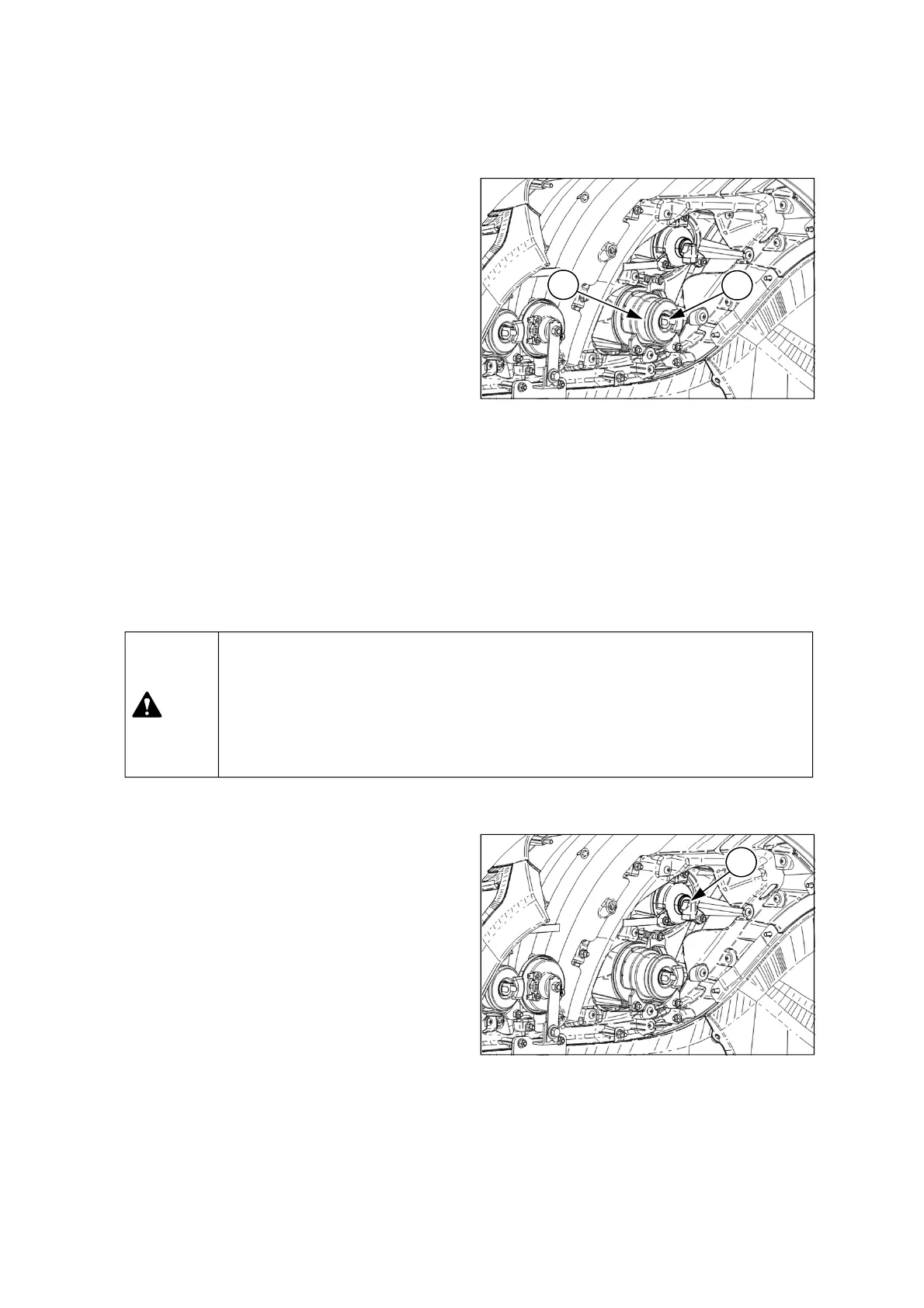

(6) Headlight bulb - Replace
① Headlight bulb
 If a headlight bulb① fails to operate, the bulb
must be replaced as below.
1. Open the tractor hood.
2. Remove the harness connector.
3. Rotate the socket③ counter-clockwise a
quarter turn and remove the socket③ from the
housing.
4. Turn the damaged bulb 1/4 turn and remove
bulb from the socket.
5. Insert a new bulb into the socket and turn 1/4
turn clockwise to secure.
6. Reinstall the socket into the housing and
harness connector.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
▶ Be careful not to touch the bulb with bare fingers. Oil from the fingers can shorten
the life of bulb. Use protective cloth or glove when installing bulb.
▶ Bulb and surroundings are very hot while working. Be careful not to touch the bulb
with bare fingers. It may cause a burn of your hand. Before servicing the bulb, turn
off the light and cool down the bulb.
Caution
② Grille work light bulb
 If a grille work light bulb② fails to operate, the
bulb must be replaced as below.
1. Open the tractor hood.
2. Remove the harness connector.
3. Turn the damaged bulb 1/4 turn counter-clock
wise and remove bulb from holder.
4. Insert a new bulb into the holder and turn 1/4
turn clockwise to secure.
5. Reinstall the harness connector.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
1
3
2
