AIR CLEANER
See Figure 7-5 for the following procedures.
The air cleaner filters (12 and 13) require periodic
maintenance.
• Clogged air cleaner filters will prevent adequate air flow
to the engine, causing poor starting and increased
exhaust emissions.
• An improperly installed or damaged air cleaner can
allow dirty air to be drawn directly into the engine.
Either condition can cause engine damage.
Inspection
To maintain engine protection and filter service life, inspect
the filters at the specified intervals:

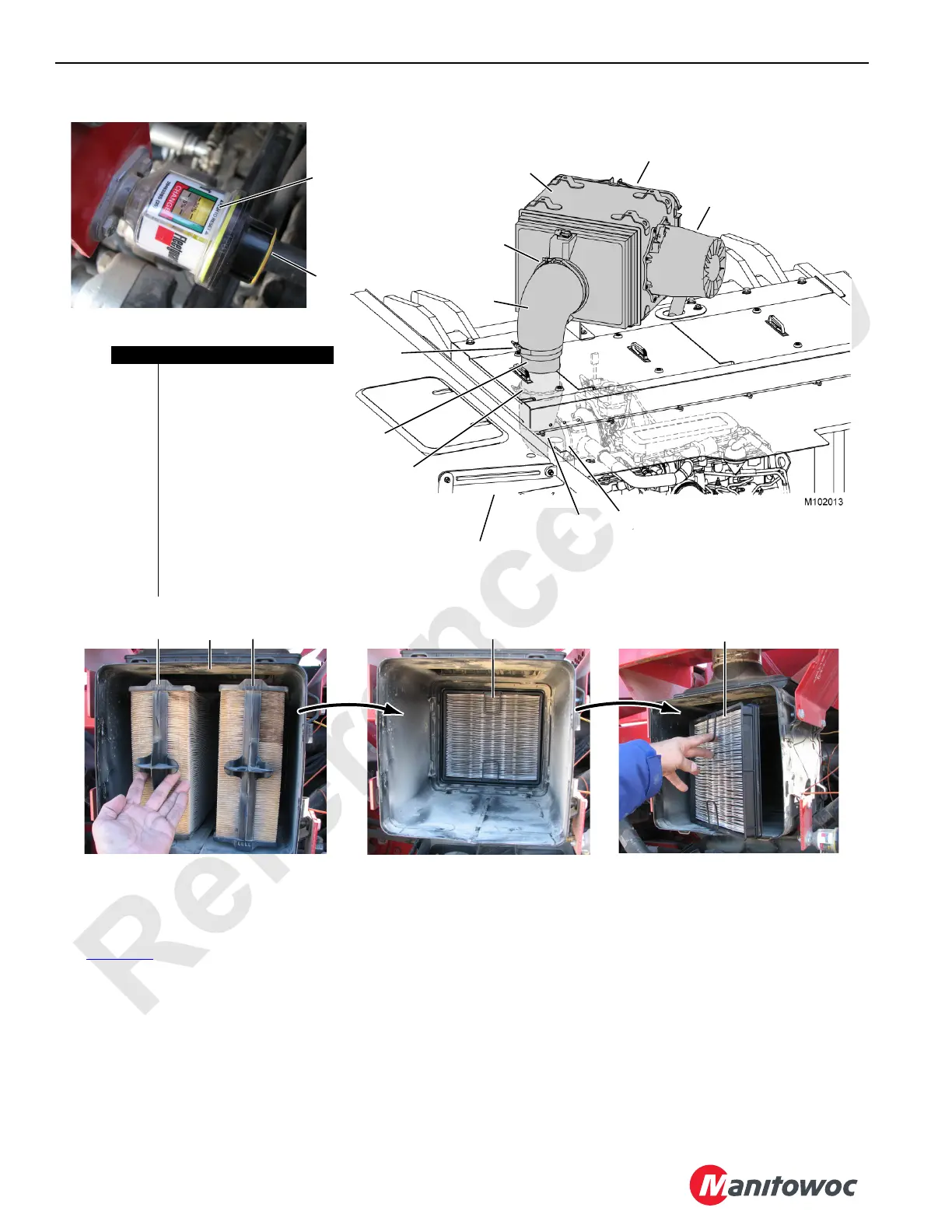

FIGURE 7-5
Item Description
1 Service Indicator
2 Reset Button
3 Air Cleaner Housing
4 Pre-Cleaner
5 Service Cover
6 Clamp (7-1/4 in)
7 Rubber Elbow
8 Clamp (5-1/2 in)
9 Steel Tube
10 Rubber Reducing Elbow
11 Clamp (4-1/2 in)
12 Primary Filter (2)
13 Secondary Filter
11
12 12
M100669 M100770 M100771
3
13
11
13
1
M100786
2
3
5
4
6
7
8
9
8
10
11
Access Ladder on Right
Side of Crane
To Next Page
