999 SERVICE/MAINTENANCE MANUAL TROUBLESHOOTING
10
Test 11 – Checking Voltage at the Hydraulic Brake Valve

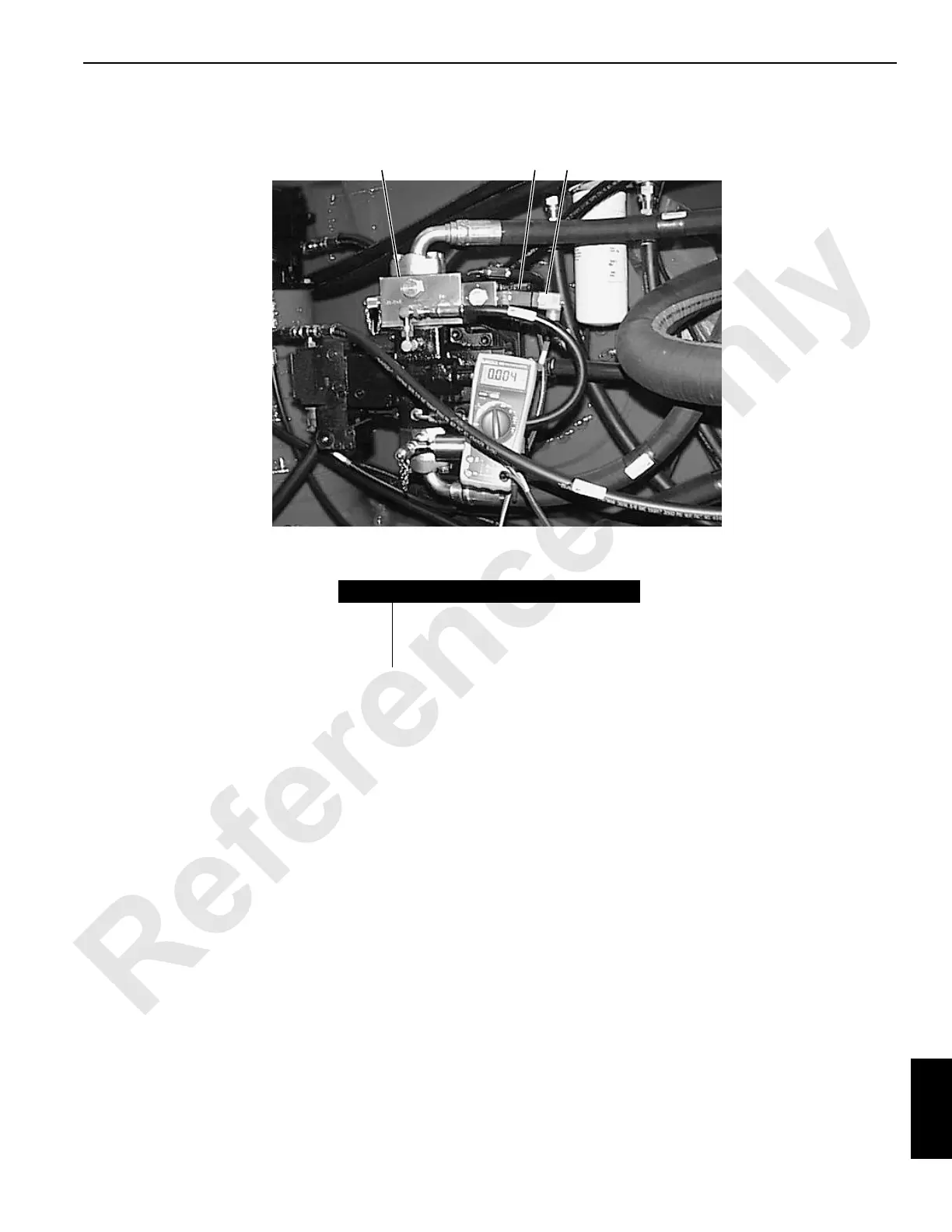

Testing for voltage at any hydraulic brake valve requires a
standard test adapter (can be ordered from the Manitowoc
Crane Care Lattice Team) and a digital multi-meter.
To test brake valve:
• Connect the test adapter between brake valve and DIN
plug.
• Connect white (positive) and black (negative) wires from
adapter cable to digital multi-meter jacks.
• Check for 12 volts DC while releasing the brake for the
system being tested.
• Load current can be measured by connecting red and
white wires from adapter cable to digital multi-meter
jacks.
Item
Description
1 Hydraulic Brake Valve
2DIN Plug
3 Hydraulic/Brake Valve Adaptor Cable
2
P924
31
