Megger TRAX User Manual

22 TRAX ZP-AJ01E AJ0383DE

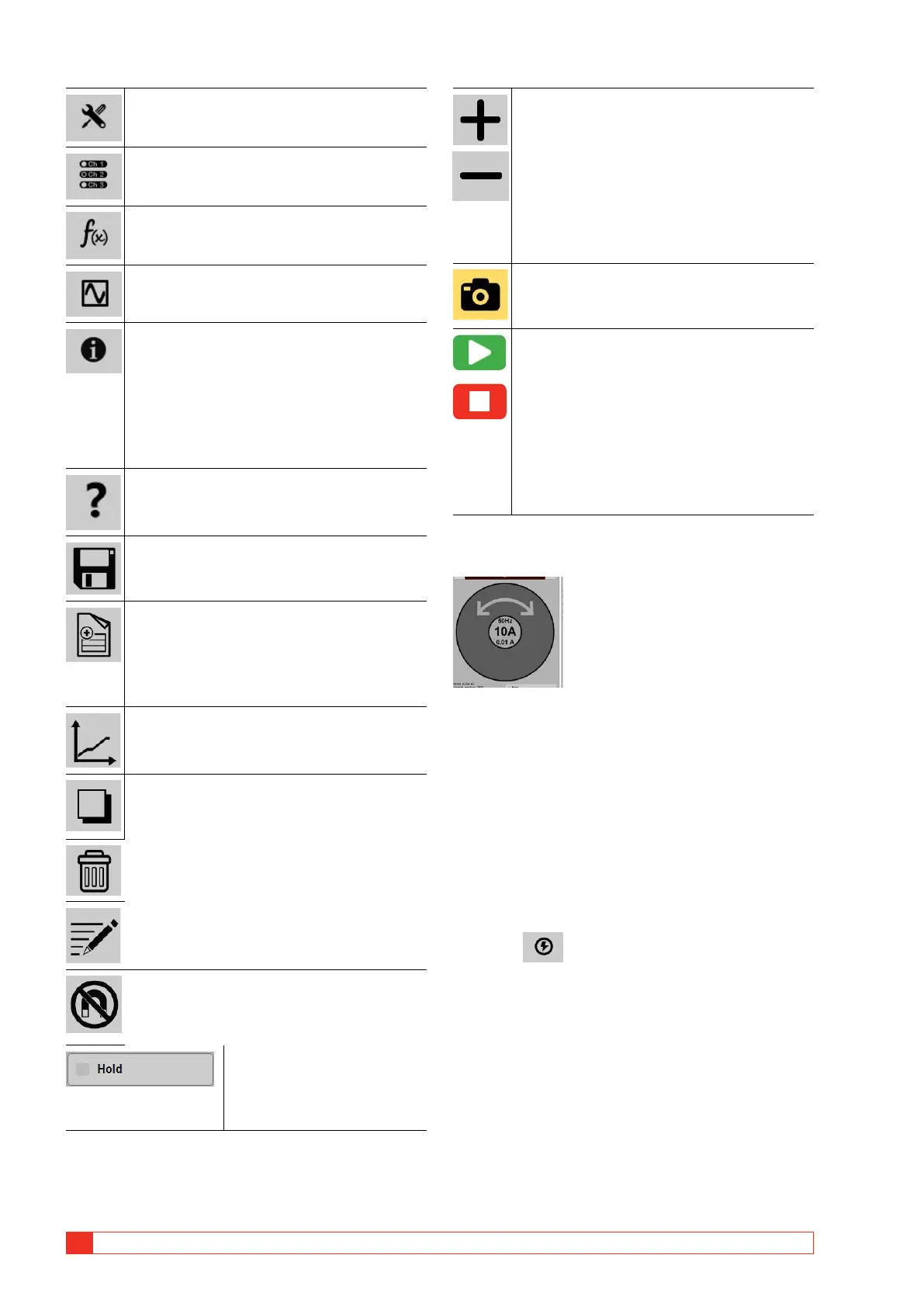

5 OPERATING INSTRUCTIONS
App settings
Measurement channel selection
Calculated parameters
Oscilloscope
Information; SW version, internal tempera-
tures etc.
The icon changes color depending on the
internal temperature:
Green = OK
Yellow = Attention
Red = Warning
Help on app screen wiring diagrams.
Note: Not in Manual Control.
Saves the test results to report/file.
If it is the first test TRAX will ask for filename
and location.
Starts a new test for the same test session.
The new test will be reported as a new table
if Manual Control is used for various tests
that you want to save and report as separate
tests.
Shows result as a diagram
Note: Not in Manual Control.
Displays the individual measurements in the
test in a table format. Click one more time
to return to the control view.
Delete
Notes
Note: Not in Manual Control.
Demagnetization
Note: Not in Manual Control.
Click the checkbox to hold
/ freeze values for reading
without capture data to the
test.
The + button operate the output contact
Ch 1.
The – button operate the output contact
Ch 2.
Activating + or – buttons closes the contact
for about 500ms. After one operation the
contacts are blocked for about 2 seconds
before the next operation is possible.
When the button is pressed, TRAX performs
a measurement while the test signal
continues.
Start and stop the generator.
Output signals and selected measurement
signals are continuously displayed and updat-
ed on the analog meters and in the results.
When the generator is stopped, measure-
ment data and calculated parameters are
(setting, can be selected on or off) automat-
ically captured and displayed and added to
the test.
Control knob
The on screen control knob is used in a similar way as
the control knob on panel.
1] Press to change value for the incremental
steps (0.1 V, 1 V, 2 V, 5 V).
2] Press and drag according to the arrows to in-
crease / decrease the value.
3] Sensitivity / scaling can be adjusted by press-
ing in the middle of the control knob
Generator settings
1] Press to make the generator settings.
2] Press the “Output” button to select generator
output.
