6 DATA HANDLING AND REPORTING
6.6 TRAX logfile
The logfiles are accessed via “Logging” in the home menu. The files are organized by apps.
Logfiles can be downloaded to USB or PC with the upper right button. Filename is *.log. Format is tab delimited

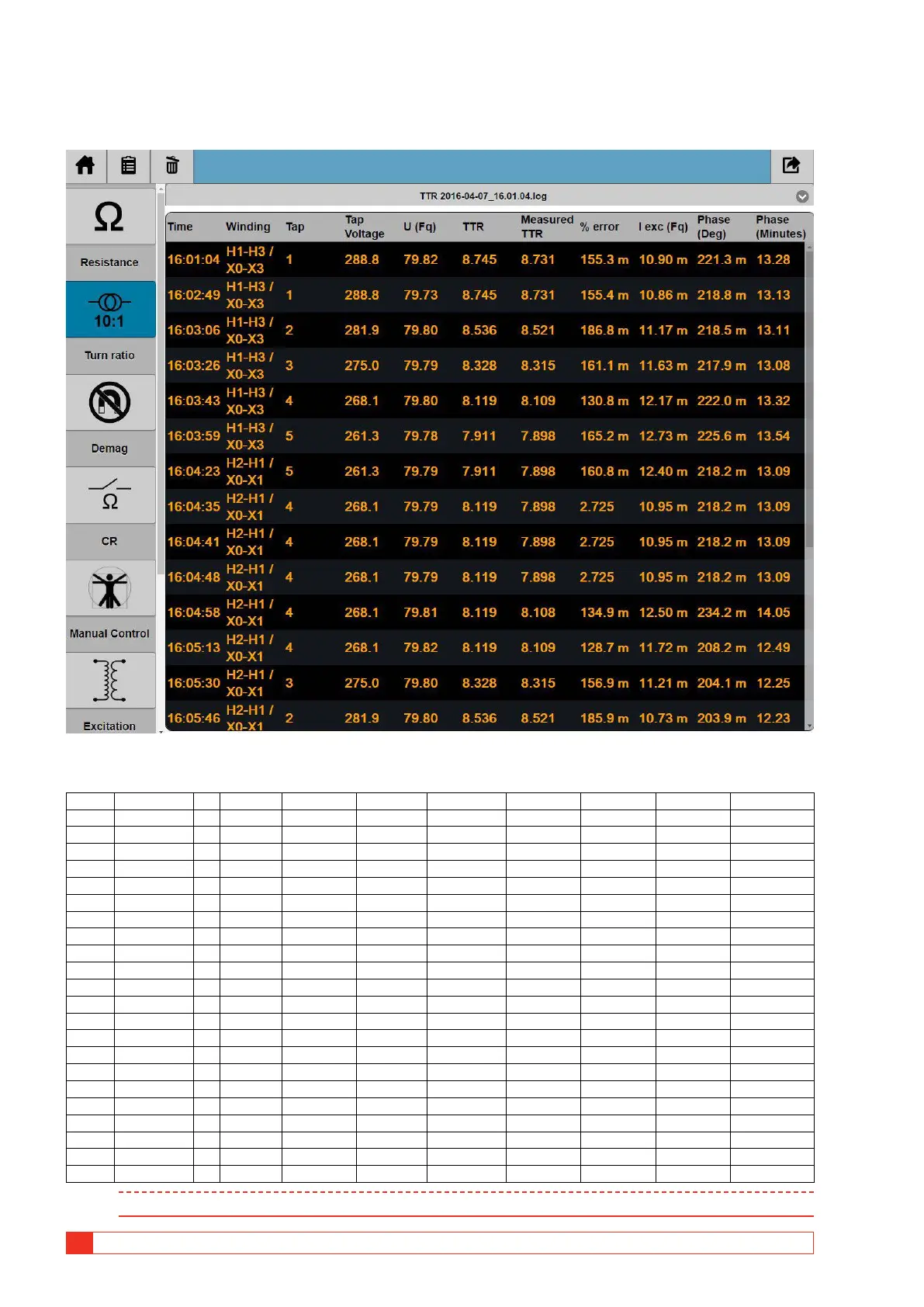

text and the files can be directly imported as data from text in Excel. See example below.
Time Winding Tap Tap Voltage U (Fq) TTR Measured TTR % error I exc (Fq) Phase (Deg) Phase (Minutes)
16:01:04 H1-H3 / X0-X3 1 288,8 79,82298404 8,745039742 8,731460191 0,155282892 0,010902529 0,221320916 13,27925495
16:02:49 H1-H3 / X0-X3 1 288,8 79,73316426 8,745039742 8,731449598 0,155404028 0,010857631 0,218763181 13,12579086
16:03:06 H1-H3 / X0-X3 2 281,9125 79,79627549
8,5364 82051 8,520539455 0,186758382 0, 01116 875 6 0,218539378 13,11236269
16:03:26 H1-H3 / X0-X3 3 275,025 79,79326395 8,327924359 8,314507258 0,16110979 4 0,0116 34 86 4 0,217935571 13,07613426
16:03:43 H1-H3 / X0-X3 4 268,1375 79,79542276 8,119366668 8,10 874 4178 0,130829053 0,012166128 0,221951353 13,31708117
16:03:59 H1-H3 / X0-X3 5 261,25 79,77780771 7,910808977 7,897740809 0,165193822 0,012727199 0,225619454 13,53716726
16:04:23 H2-H1 / X0-X1 5 261,25 79,78636983 7,910808977 7,89808453 0,160848871 0,012395819 0,218229426 13,09376555
16:04:35 H2-H1 / X0-X1 4 268,1375 79,78636983 8,119366668 7,89808453 2,725362054 0,010952381 0,218229426 13,09376555
16:04:41 H2-H1 / X0-X1 4 268,1375 79,78636983 8,119366668 7,89808453 2,725362054 0,010952381 0,218229426 13,09376555
16:04:48 H2-H1 / X0-X1 4 268,1375 79,78636983 8,119366668 7,89808453 2,725362054 0,010952381 0,218229426 13,09376555
16:04:58 H2-H1 / X0-X1 4 268,1375 79,81087537 8,119366668 8,108414203 0,134893092 0,012499431 0,234196821 14,05180929
16:05:13 H2-H1 / X0-X1 4 268,1375 79,82208271 8,119366668 8,10 8918592 0,128680924 0,011717519 0,208185549 12,49113297
16:05:30 H2-H1 / X0-X1 3 275,025 79,79962282 8,327924359 8,314860947 0,156862758 0,0112050 49 0,204101436 12,24608618
16:05:46 H2-H1 / X0-X1 2 281,9125 79,80317883
8,5364 82051 8,520615935 0,1858 62464 0,010733944 0,203901405 12,2340843
16:06:03 H2-H1 / X0-X1 1 288,8 79,771189 62 8,745039742 8,731616601 0,153494341 0,010298725 0,19919886 11,9519315 8
16:06:30 H3-H2 / X0-X2 1 288,8 79,81990417 8,745039742 8,723758047 0,243357324 0,007902342 0,154869073 9,292144371
16:06:38 H3-H2 / X0-X2 2 281,9125 79,81990417 8,5364 82051 8,723758047 2,1938310 82 0,007902342 0,154 869073 9,292144371
16:07:01 H3-H2 / X0-X2 2 281,9125 79,83213248
8,5364 82051 8,513217914 0,272526038 0,008275373 0,161657851 9,699471065
16:07:18 H3-H2 / X0-X2 3 275,025 79,8004086 8,327924359 8,513275052 2,225652933 0,008245765 0,159178623 9,550717375
16:07:41 H3-H2 / X0-X2 3 275,025 79,7937044 8,327924359 8,307139828 0,249576371 0,008573294 0,157461986 9,447719172
16:08:06 H3-H2 / X0-X2 4 268,1375 79,81373307 8,119366668 8,101472628 0,220387141 0,008930984 0,159015948 9,540956886
16:08:31 H3-H2 / X0-X2 5 261,25 79,80348985 7,910808977 7, 89 04 45678 0,25741107 7 0,009323349 0,160 623372 9,637402331
Note The logfiles are intended for emergency/backup use and are normally not used for reporting.
