Megger TRAX User Manual

34 TRAX ZP-AJ01E AJ0383DE

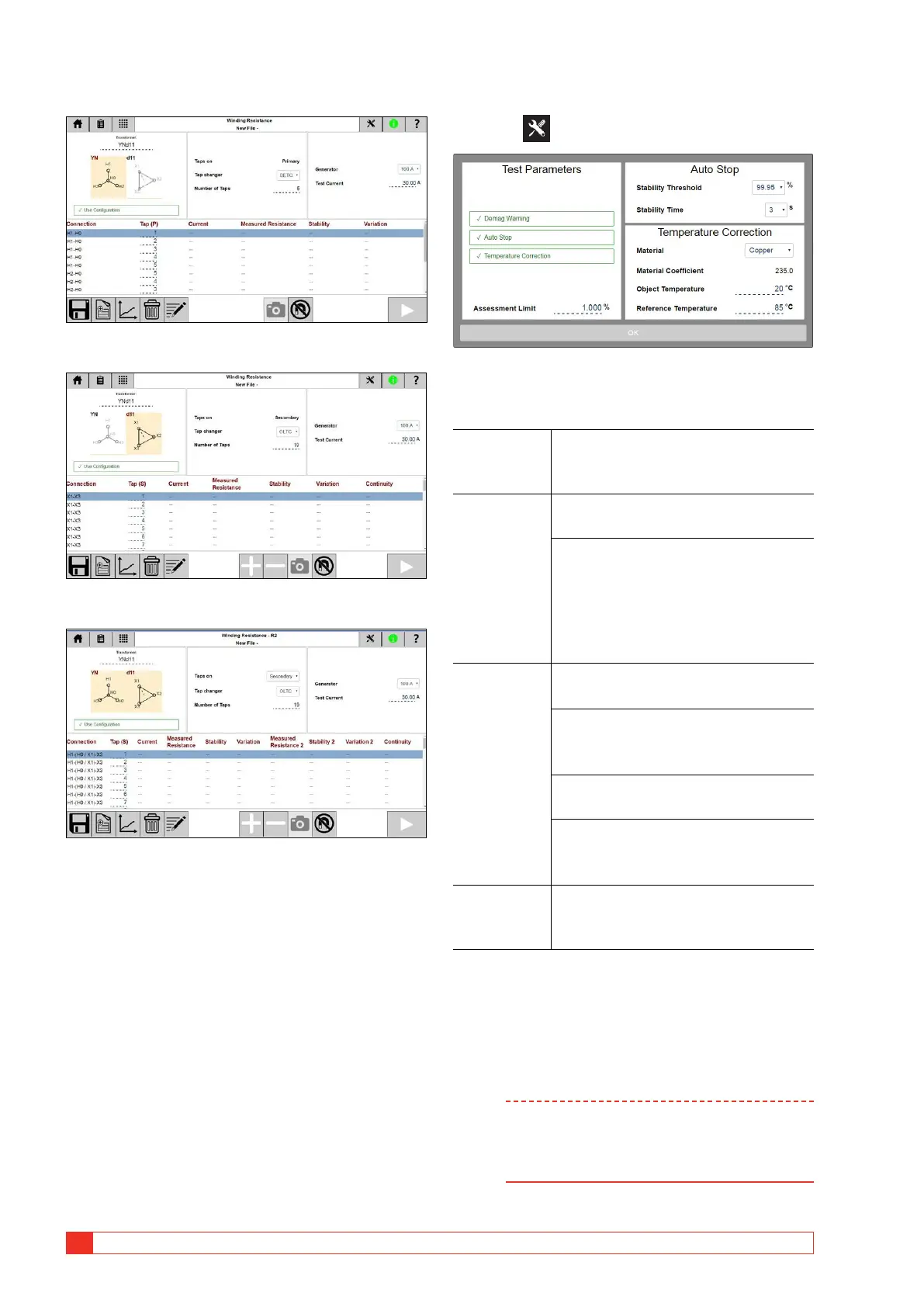

5 OPERATING INSTRUCTIONS
HV measurements
LV measurements
Dual – taps on LV
Settings
1] Press
Test Parameters
2]
Select test parameters and make settings.
Demag
Warning
When activated, TRAX suggest to do
demagnetization when leaving the
WRM app.
Auto Stop Stability Threshold
Select minimum values for stability
Stability Time
Minimum time for stability before
initiating measure/stop. E.g when
stability is > 99.95% for > 3 s the
measurement is automatically
stopped.
Temperature
Correction
Material
Copper, Aluminum or Custom
Material Coefficient
For copper, aluminum or as customer
defined
Object Temperature (°C)
Enter the winding temperature
Reference Temperature (°C)
Reference temperature for the
correction
Assessment
Limit
Limit for winding resistance
variation between windings
Default 2%
Connection for measurement
No configuration measurements
1]
Connect current and voltage leads to the test
object.
Note This is a 4-wire method. Connect voltage
sense leads “inside” the current leads connec-
tors. The connectors must NOT touch each
other.
2] Select test current and start measurement.
