Technical Information
10
MasterChef Ovens
1.3 Overview of User Controls
1.3.1 H 39x Single Oven Controls

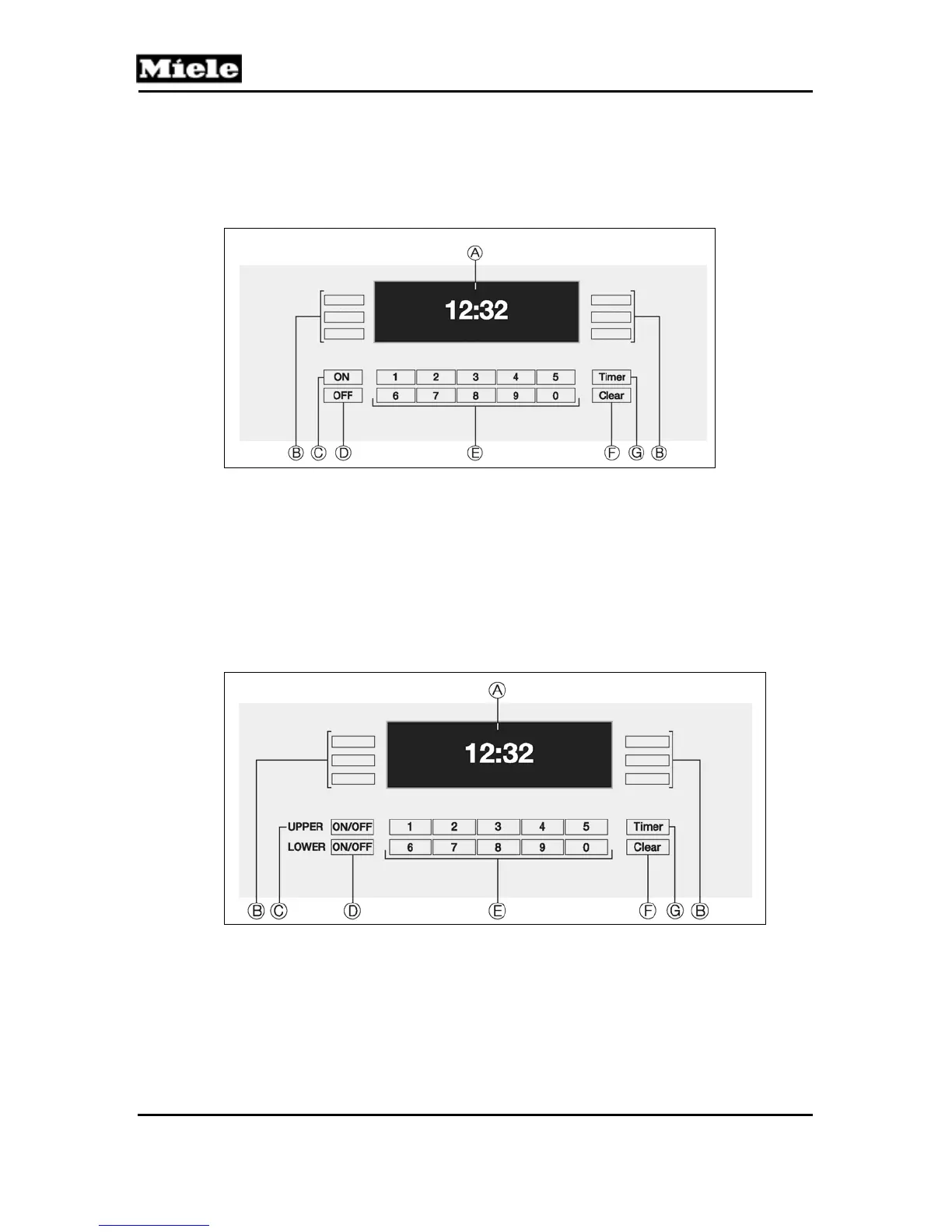

Figure 1-3: Overview of H 39x Single Oven Controls
A Display: shows the time or the functions.
B Touch controls: to select or set a function.
C ON: to turn the oven on.
D OFF: to turn the oven off.
E Keypad: to enter times or temperatures.
F Clear: to delete the last entry or to clear menu items.
G Timer: to set a timer independent of an oven function.
1.3.2 H 39x Double Oven Controls
Figure 1-4: Overview of H 39x Double Oven Controls
A Display: shows the time, oven status, or menu options.
B Touch controls: used to select an option
C ON/OFF: turns the upper oven on/off.
D ON/OFF: turns the lower oven on/off.
E Keypad: used to enter times or temperatures.
F Clear: deletes the last entry or clears the menu.
G Timer: used to set up to 2 independent cooking timers.
