Technical Information
50
MasterChef Ovens

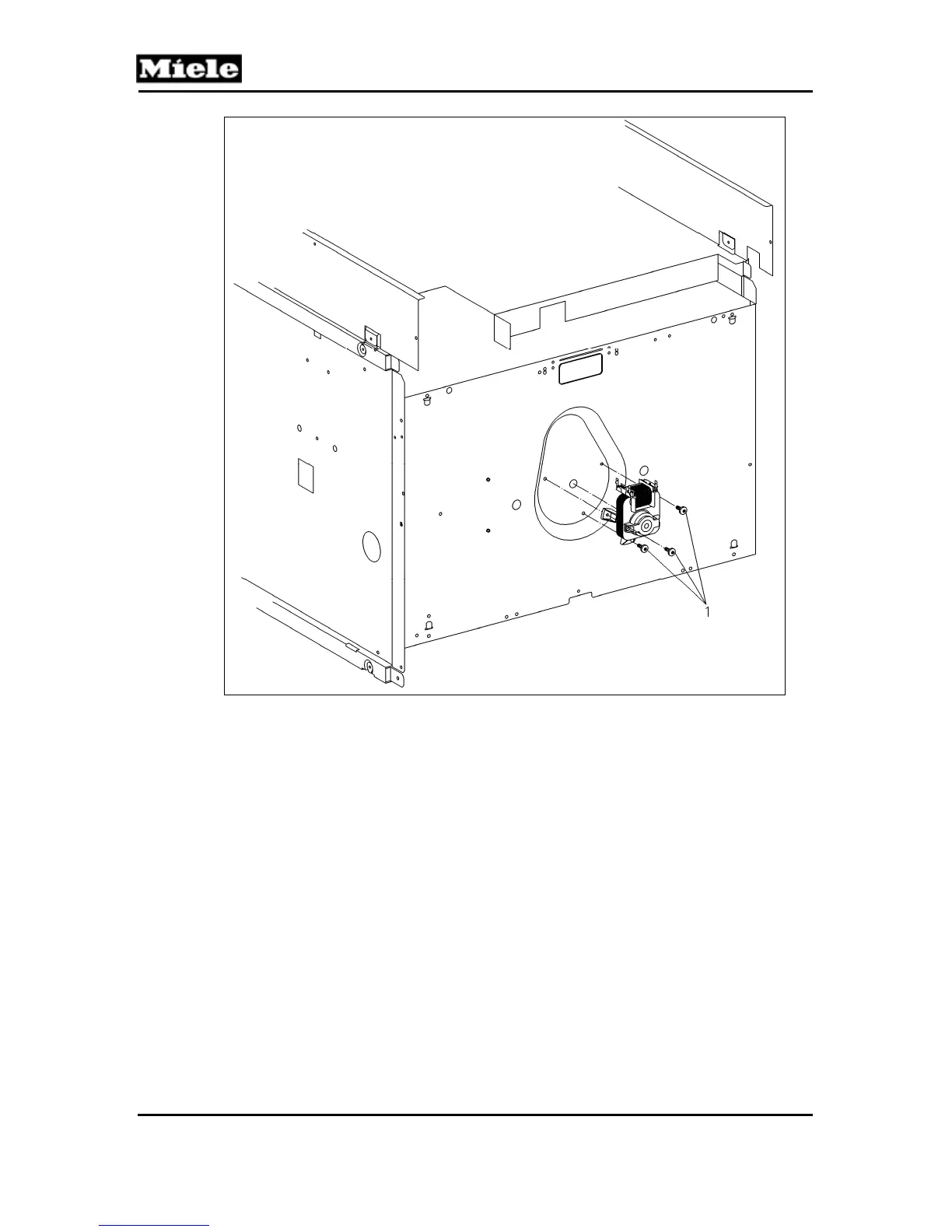

Figure 5-27: Convection Fan Retaining Screws
5.26 Cavity Temperature Sensor Removal
See Top Heater/Broiler Element Removal, Section 5.23.
5.27 Self-Clean Thermostat Removal (“P” Models Only)
1. Remove the door(s) (Section 5.2).
2. Remove the oven for service (Section 5.5).
3. Remove the rear panel(s), if necessary (Sections 5.11 and 5.12).
4. Disconnect the thermostat electrical connection.
5. Move the retaining spring to the side and remove the thermostat (Figure
5-28, Item 1) from the catalyst vapor outlet.
